ASSVJ-FREQ-L-C-C2.5-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASSVJ-FREQ-L-C-C2.5-T

ASSVJ-FREQ-L-C-C2.5-T: DescriptionCMOS Output Clock Oscillator, 13MHz Min, 220MHz Max, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size2MB，4 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASSVJ-FREQ-L-C-C2.5-T Overview

CMOS Output Clock Oscillator, 13MHz Min, 220MHz Max, ROHS COMPLIANT, SMD, 4 PIN

ASSVJ-FREQ-L-C-C2.5-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TAPE AND REEL
maximum descent time	1.2 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	ASSVJ
Installation features	SURFACE MOUNT
Maximum operating frequency	220 MHz
Minimum operating frequency	13 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 1.8mm
longest rise time	1.2 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

3.3V REDUCED JITTER SMD SPREAD SPECTRUM CLOCK OSCILLATOR

ASSVJ SERIES

FEATURES:

NEW

for

2007

RoHS

Compliant

APPLICATIONS:

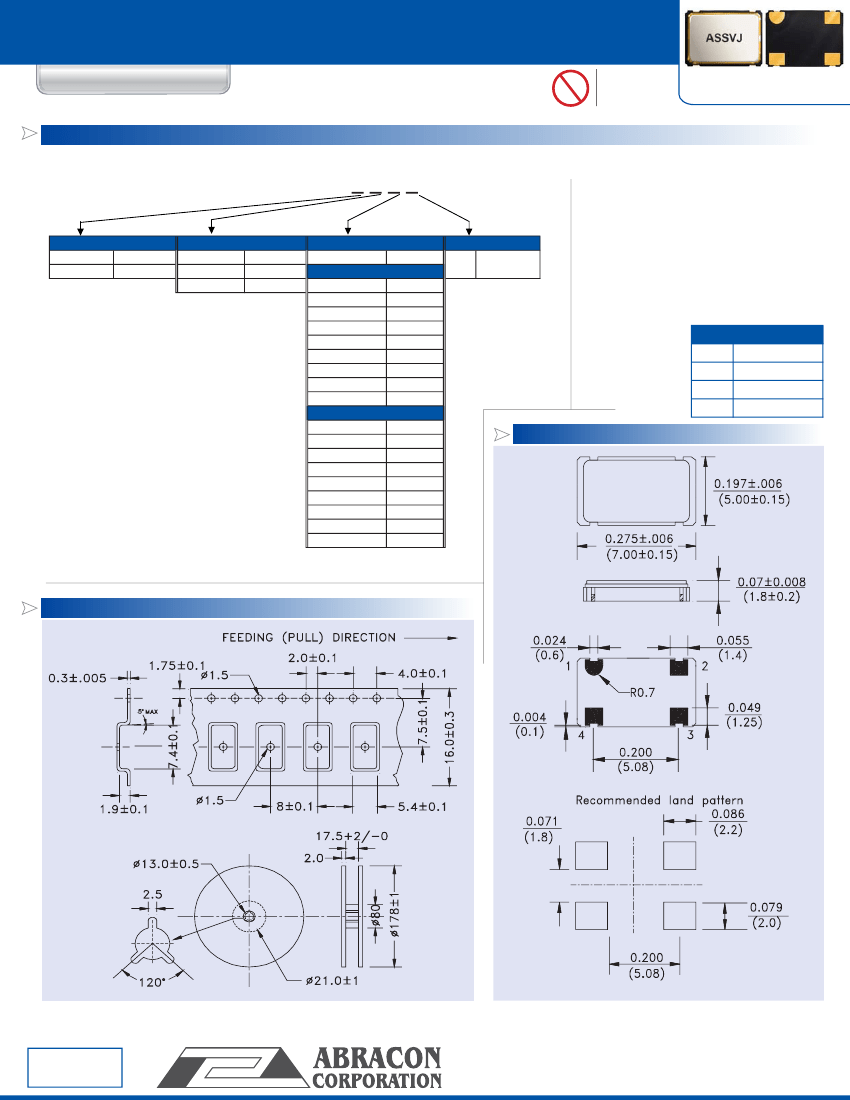

7.0 x 5.0 x 1.8mm

• Low Cycle to Cycle Jitter

• Integrated Spread Spectrum Technology

• EMI reduction up to 20dB

• Solve EMI failures as a drop in replacement for std. 5x7mm Osc.

• Cost effective EMI reduction

• Printers, Digital Copy Machines, Scanners, Projectors,

Modems, LAN, WAN, Navigation Equipment, Automotive,

Audio, Medical Electronics, Hand-held readers,

Industrial Automation

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Spread Type & Percentage

EMI Reduction

(Reduction is applied to the

entire freq. spectrum)

Operating Temperature

Storage Temperature

Frequency Stability

Supply Voltage (Vdd)

Start-up Time

Rise and Fall Time (Tr/Tf)

Load

Current Consumption

Duty Cycle

Output Logic

Cycle to cycle Jitter

Output Impedance

Static Discharge Voltage

Aging

Output Voltage “High”; “1”

Output Voltage “Low”; “0”

Modulation Carrier Freq. (dither rate)

ASSVJ Series

13.0 MHz to 220.0 MHz

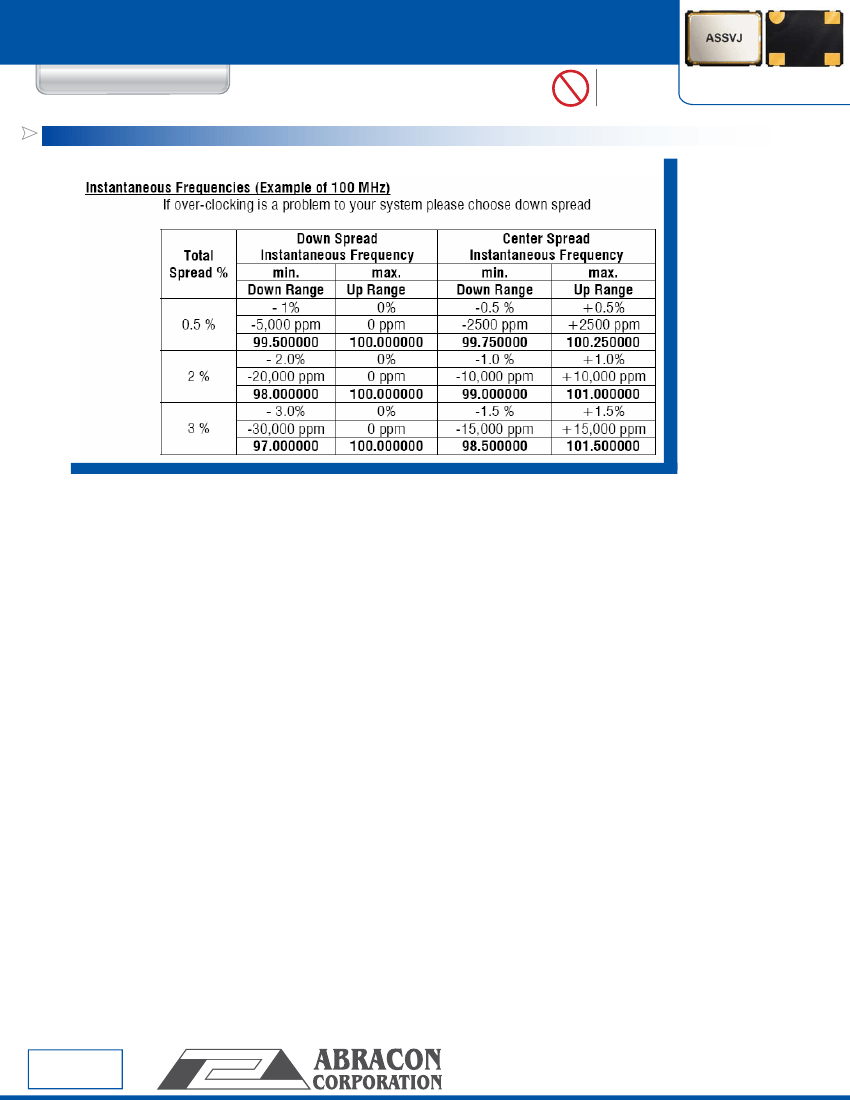

Center Spread ±0.5% (see options)

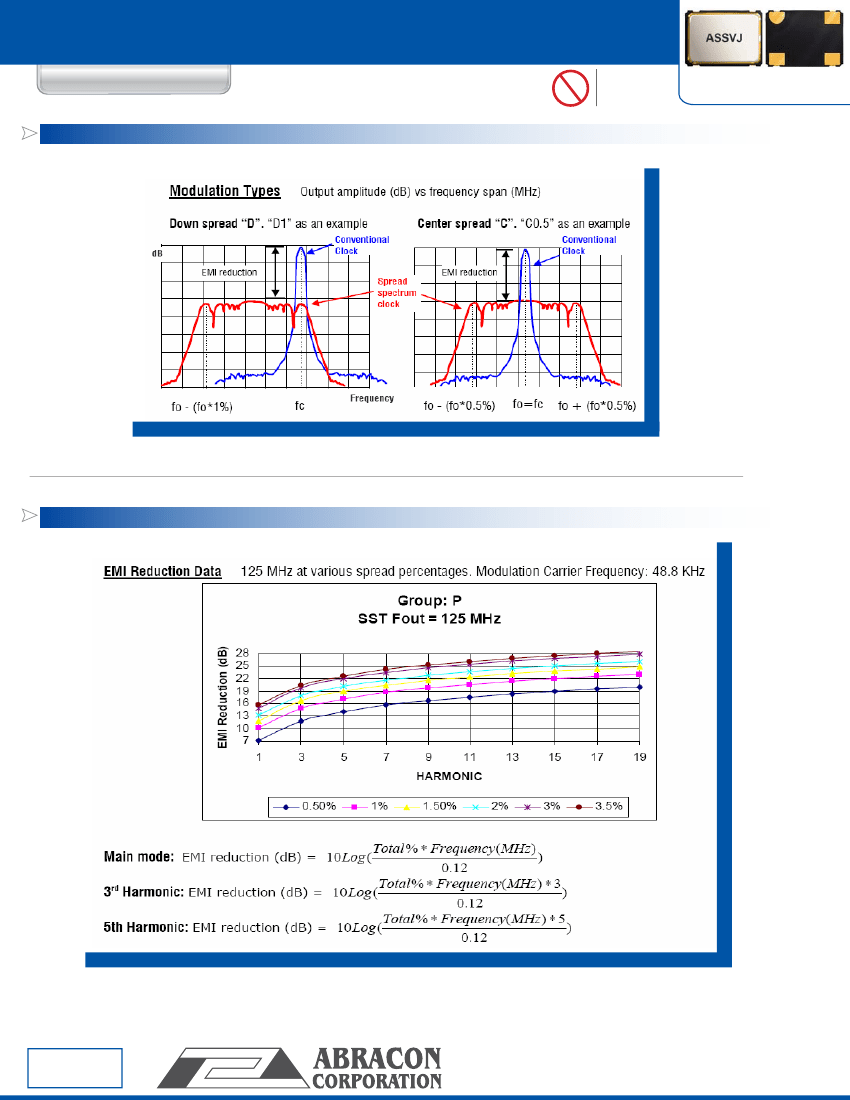

EMI reduction (dB) =

10Log ("Total %" x "SSC Frequency (MHz) “/0.12)

(See 125MHz Example)

0°C to + 70°C (see options)

- 65°C to + 150°C

± 100 ppm (see options)

3.3 Vdc ± 5%

2ms typ, 5ms max.

15pF

25mA Typical (depends on frequency)

50% ± 5% (C

= 15pF at 50% V

)

CMOS Square wave

±100ps typ; ±150ps max.

40ohm

>2,000V (per MIL-STD-883, method 3015)

±5ppm per year max.; Ta=+25°C

2.4V min. (at 80% V

)

0.4V max. (at 20% V

)

25.3kHz min.; 58.6kHz max; (depends on frequency)

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

REVISED: 3.8.07

30332

Esperanza, Rancho Santa Margarita, California

92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com
