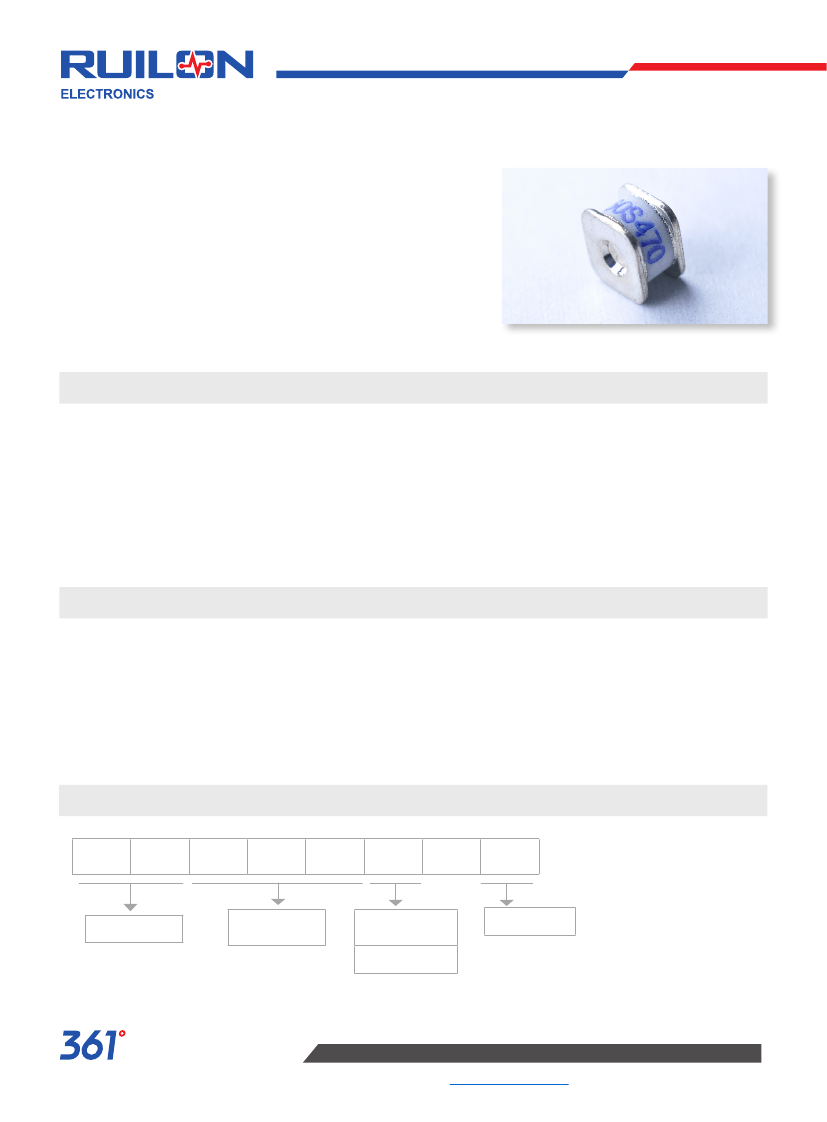

Gas Discharge Tubes - 2R-6S Series
GDT introduction:Gas discharge tubes (GDT) use noble gasses enclosed
in ceramic tubes to provide an alternate circuit path for voltage spikes.The
ceramic envelope and with nickel connectors allow for high loads and Ruilon
offers products that function at 20KA,40KA,50KA,60KA,100KA&150KA.
The breakdown voltages of the devices have a wide range (up to 20%
tolerance).Major applications are high frequency telecommunication
lines,stations, security systems,HID and high quality Surge Protection
Devices (SPD).
Features
1. RoHS & HF compliant
2. SMD Structure
3. DC Spark-over voltage: 75~3000V
4. Low Capacitance
5. Agency Recognition : UL/ cUL
6. Operating temperature:-30°C ~ +85°C Storage
temperature:-40°C ~ +115°C
Recommended Applications
1. Cable Modem
2. xDSL
3. Set-Top Box
4. TV sets
5. Power supplier
6. Consumer electronics
Part Number Code
2
R
2
3
0
A
-
6
Series
DC Line
Voltage
Electrical
Characteristics
A=5000A
Dimensions
Circuit Protection
System
Specifications are subject to change without notice.
Please refer to
http://www.ruilon.com
for current information.
Page:1
Gas Discharge Tubes - 2R-6S Series
Electriacl Characteristics
Max.
DC
Impulse
Impulse
Spark-over
Discharge
Life
Voltage
Current
(10/1000μs)
(8/20μs)
100V/ 1KV/
1
10
100V/S
100 A
μS
μs times times
Maximum
Impulse
Breakdown
Voltage
(V)
2R075A-6S
2R090A-6S
2R150A-6S
2R230A-6S
2R250A-6S
2R300A-6S
2R350A-6S
2R400A-6S
2R470A-6S
2R600A-6S
2R800-6S
2R1000-6S
2R1200-6S
2R1800-6S
2R2000-6S
2R2500-6S
2R2700-6S
2R3000-6S
75±20%
90±20%
150±20%
230±20%
250±20%
300±20%
350±20%
400±20%
470±20%
600±20%
800±20%
1000±20%
1200±20%
1800±20%
2000±20%
2500±20%
2700±20%
3000±20%
(V)
600
600
500
500
500
550
600
650
750
900
(V)
700
700
700
600
600
650
700
750
850
1000
8
8
8
8
8
8
8
8
8
8
5
5
5
5
5
5
5
5
(KA)
5
5
5
5
5
5
5
5
5
5
3
3
3
3
3
3
3
3
Times
500
500
500
500
500
500
500
500
500
500
300
300
300
300
300
300
300
300
5
5
5
5
5
5
5
5
5
5
3
3
3
3
3
3
3
3
Normal
Alternating
Discharge
Current
50Hz
1Sec
Single
9 Cycles
(A)
15
15
15
15
15
15
15
15
15
15
10
10
10
10
10
10
10
10
DC
Holdover
Voltage
<150ms
(V)
52
52
52
80
150
150
150
150
150
150
150
150
150
150
150
150
150
150
(GΩ)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
(pF)
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
Part No.
Minimum
Insulation
Resistance
Maximum
Capacitance
(1MHz)
1000 1100
1500 1600
1700 1800
2500 2600
2700 2800
3100 3200
3300 3400
3600 3700
DC Spark-over Voltage
75-90V
150-400V
470-800V
1000-2000V
2500-3000V
DC Measuring Voltage
50V
100V
250V
500V
1000V
Circuit Protection
System
Specifications are subject to change without notice.
Please refer to
http://www.ruilon.com
for current information.
Page:2
Gas Discharge Tubes - 2R-6S Series

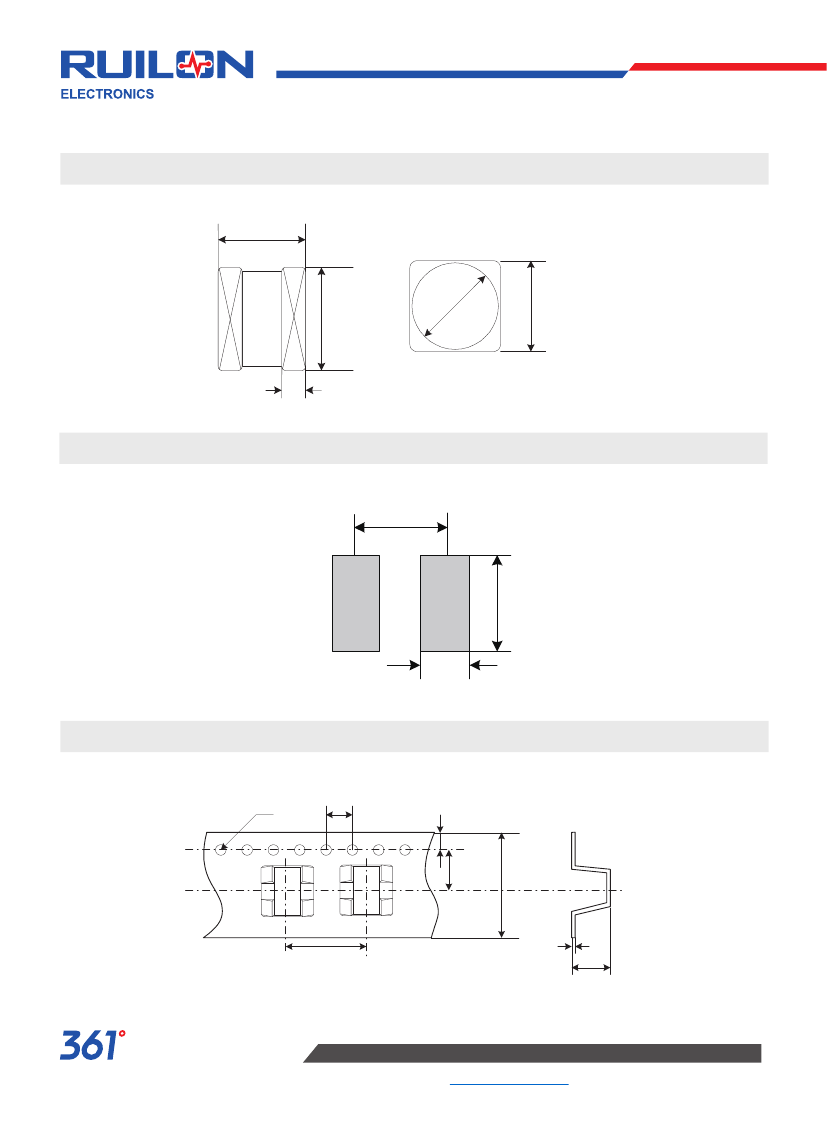

Quantity: 900pcs per reel (13”)
Unit:mm
Item
Spec.
Tolerance
P
12.0
±0.1
PO
4.0
±0.1
W
16.0
±0.3
F
7.5
±0.1
E
1.75
±0.1
D
Φ1.55
±0.05
K
6.7
±0.1
t
0.5
±0.05
.
330 ± 4.0
>1.5
100typ
.
.
18 typ
Warehouse Storage Conditions of Products
·
Storage Conditions:
1. Storage Temperature: -10°C~+40°C
2. Relative Humidity:≤75%RH
3. Keep away from corrosive atmosphere and sunlight.
·
Period of Storage: 1 year
Circuit Protection
System
Specifications are subject to change without notice.
Please refer to
http://www.ruilon.com
for current information.
Page:4
