ASVV-FREQ-F25-S-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASVV-FREQ-F25-S-T

ASVV-FREQ-F25-S-T: DescriptionHCMOS/TTL Output Clock Oscillator, 1MHz Min, 200MHz Max, ROHS COMPLIANT, SMD, 6 PIN; CategoryPassive components oscillator; File Size238KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASVV-FREQ-F25-S-T Overview

HCMOS/TTL Output Clock Oscillator, 1MHz Min, 200MHz Max, ROHS COMPLIANT, SMD, 6 PIN

ASVV-FREQ-F25-S-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TRI-STATE FUNCTION; TAPE AND REEL
Maximum control voltage	3.15 V
Minimum control voltage	0.15 V
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	80 ppm
frequency stability	25%
linearity	10%
Manufacturer's serial number	ASVV
Installation features	SURFACE MOUNT
Maximum operating frequency	200 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS/TTL
Output load	5 TTL, 30 pF
physical size	7.0mm x 5.0mm x 1.6mm
longest rise time	10 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

HCMOS/TTL COMPATIBLE VOLTAGE

CONTROLLED CRYSTAL OSCILLATOR

ASVV

FEATURES:

• Low profile (1.6) SMD VCXO

• Tristate functions

• Seam sealed

• HCMOS/TTL output

• Suitable for IR reflow

RoHS

Compliant

APPLICATIONS:

• Phase locked loops (PLLs)

• Synthesizers

• Clock Recover, Digital Transmission device

• Digital set-up box

• Computers; Test Equipment

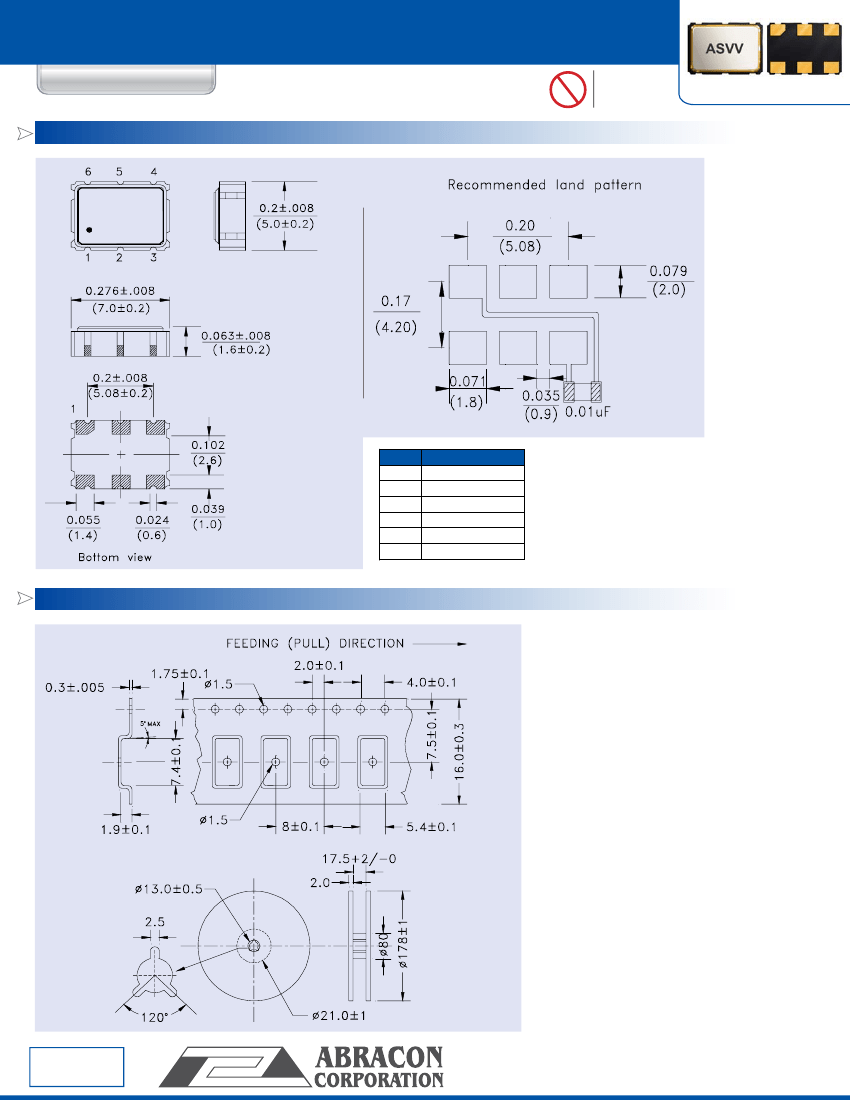

7.0 x 5.0 x 1.6 mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Operating Temperature

Storage Temperature

Overall frequency stability

Supply voltage (Vdd)

Input Current

ASVV Series

1.000 MHz to 200.00 MHz

0°C to + 70°C (See options)

-45°C to +90°C

± 50ppm max. (See options)

3.3 Vdc ± 5%

15mA max. For 1MHz to 24MHz

30mA max. For 24.01MHz to 96MHz

40mA max. For 96.01MHz to 200MHz

40/60 % max.@ 1/2Vdd (see options)

10ns max.

30pF/5TTL max.

VOH = 0.9 * Vdd min.; VOL = 0.1 * Vdd max.

1.65Vdc ± 1.5V (see options)

± 80 ppm minimum (see options)

10 ms max.

"1" (VIH >= 2.2 Vdc) or open: Oscillation

"0" (VIL < 0.8 Vdc) : Hi Z

±30ps typical (Period Jitter vary with frequencies)

±10% max.

Symmetry

Rise and fall time (Tr/Tf)

Output Load

Output Voltage

Control Voltage (Vc)

Pulling

Start-up time

Tri-state function

Period jitter (Peak to Peak)

Linearity

(Left blank if standard)

OPTIONS & PART IDENTIFICATION:

ASVV-Frequency -

Symmetry

45/55% at

1/2Vdd

Pulling

*N152

N122

N102

±150 ppm min. 0.15V to 3.15V

±120 ppm min. 0.15V to 3.15V

±100 ppm min. 0.15V to 3.15V

Packaging

Tape and Reel

(1K/reel)

* Standard distributor part number option.

Operating Temperature

0°C to 50°C

0°C to 60°C

-10°C to 60°C

0°C to 70°C

-10°C to 70°C

-20°C to 70°C

-40°C to 85°C

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

±20 ppm

I20

B20

D20

C20

F20

E20

Frequency stability (ppm)

±25 ppm

±30 ppm

±50 ppm

I25

I30

I50

B25

B30

B50

D25

D30

D50

C25

C30

STD (Left blank)

F25

F30

F50

E25

E30

E50

L25

L30

L50

Revised (K): 03.11.08

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
