935088370112: DescriptionSPST, 4 Func, 1 Channel, CMOS, PDSO14; CategoryAnalog mixed-signal IC The signal circuit; File Size504KB，9 Pages; ManufacturerNexperia; Websitehttps://www.nexperia.com; Environmental Compliance

Download Datasheet Parametric Compare View All

935088370112 Overview

SPST, 4 Func, 1 Channel, CMOS, PDSO14

935088370112 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Nexperia
package instruction	SOP,
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G14
JESD-609 code	e4
length	8.65 mm
Humidity sensitivity level	1
Number of channels	1
Number of functions	4
Number of terminals	14
Nominal off-state isolation	50 dB
On-state resistance matching specifications	2 Ω
Maximum on-state resistance (Ron)	54 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.75 mm
Nominal supply voltage (Vsup)	6 V
surface mount	YES
Maximum disconnect time	34 ns
Maximum connection time	20 ns
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	3.9 mm

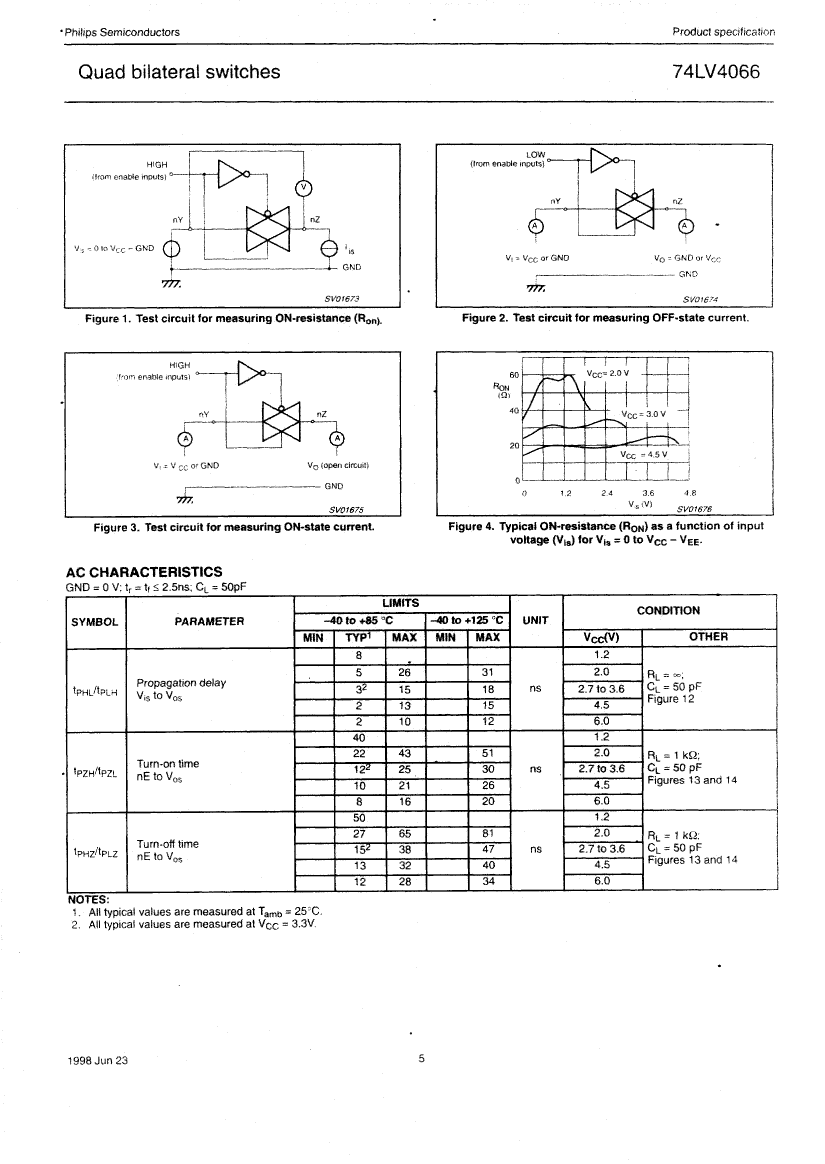

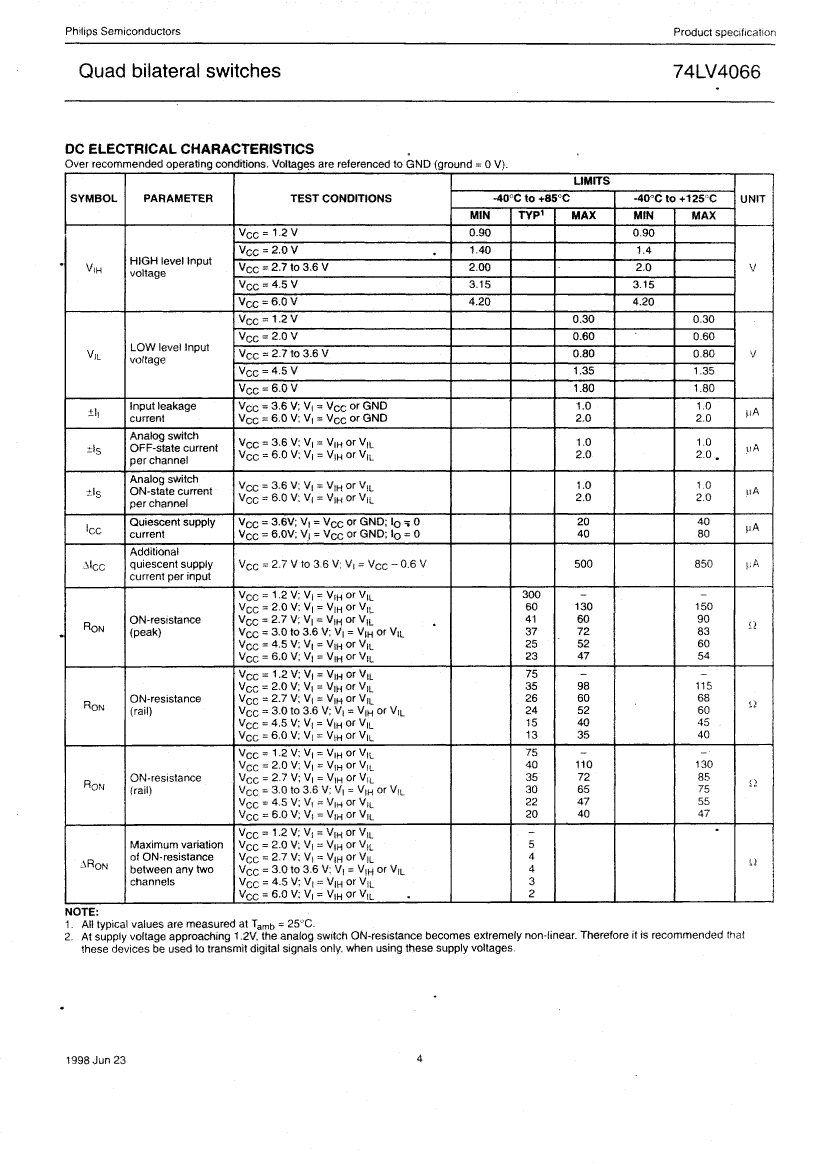

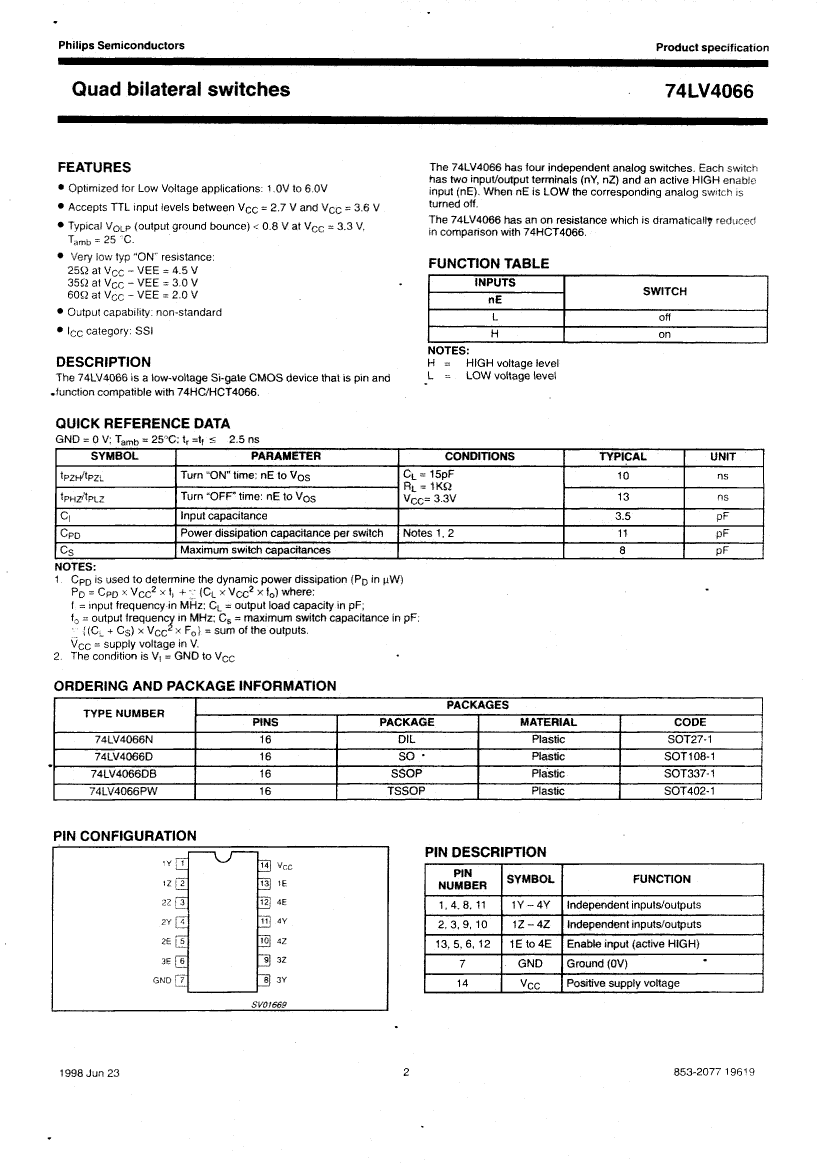

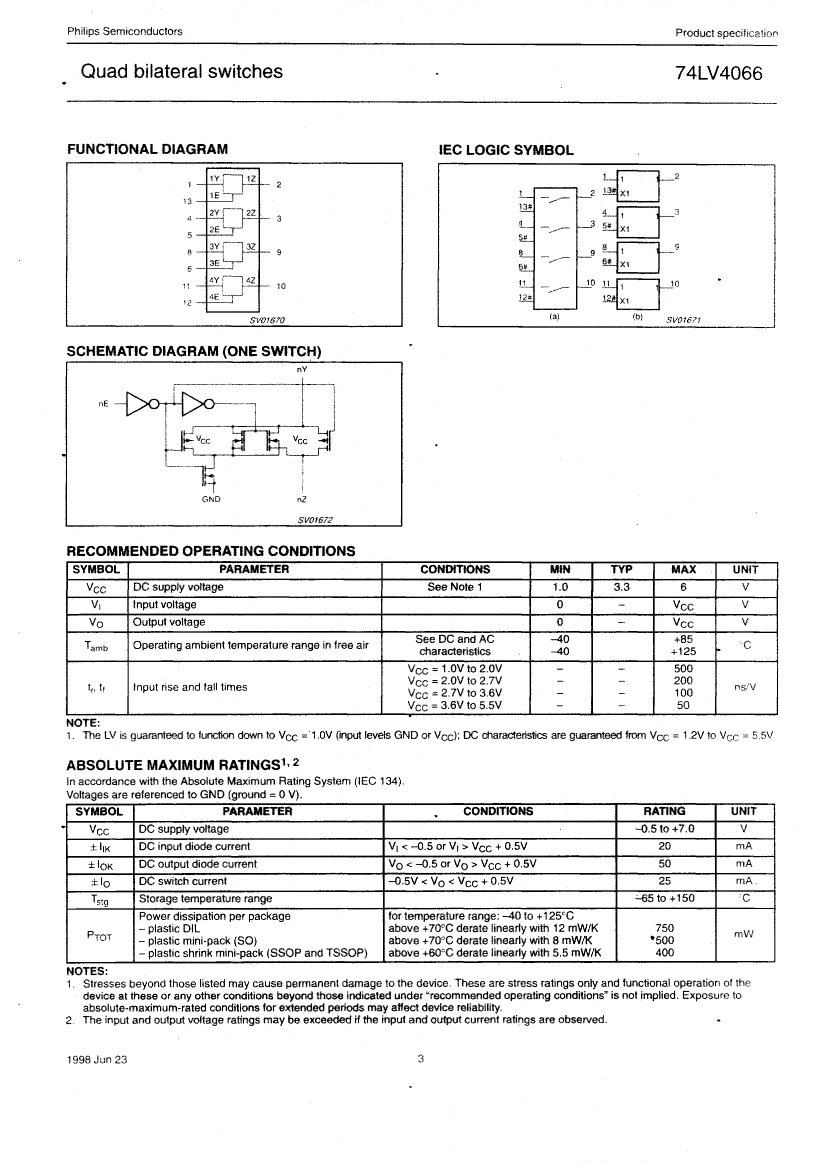

Preview

Download Datasheet

View All

935088370112 Related Products

	935088370112	935170200118	935088370118	935170200112
Description	SPST, 4 Func, 1 Channel, CMOS, PDSO14	SPST, 4 Func, 1 Channel, CMOS, PDSO14	SPST, 4 Func, 1 Channel, CMOS, PDSO14	SPST, 4 Func, 1 Channel, CMOS, PDSO14
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Nexperia	Nexperia	Nexperia	Nexperia
package instruction	SOP,	SSOP,	SOP-14	SSOP,
Reach Compliance Code	compliant	compliant	compliant	compliant
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e4	e4	e4	e4
length	8.65 mm	6.2 mm	8.65 mm	6.2 mm
Humidity sensitivity level	1	1	1	1
Number of channels	1	1	1	1
Number of functions	4	4	4	4
Number of terminals	14	14	14	14
Nominal off-state isolation	50 dB	50 dB	50 dB	50 dB
On-state resistance matching specifications	2 Ω	2 Ω	2 Ω	2 Ω
Maximum on-state resistance (Ron)	54 Ω	54 Ω	54 Ω	54 Ω
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SSOP	SOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	2 mm	1.75 mm	2 mm
Nominal supply voltage (Vsup)	6 V	6 V	6 V	6 V
surface mount	YES	YES	YES	YES
Maximum disconnect time	34 ns	34 ns	34 ns	34 ns
Maximum connection time	20 ns	20 ns	20 ns	20 ns
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.65 mm	1.27 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	40	30	40
width	3.9 mm	5.3 mm	3.9 mm	5.3 mm
