BC817DS

Description
Small Signal Bipolar Transistor
CategoryDiscrete semiconductor    The transistor
File Size318KB,8 Pages
ManufacturerNexperia
Websitehttps://www.nexperia.com
Environmental Compliance
Download Datasheet Parametric Compare View All

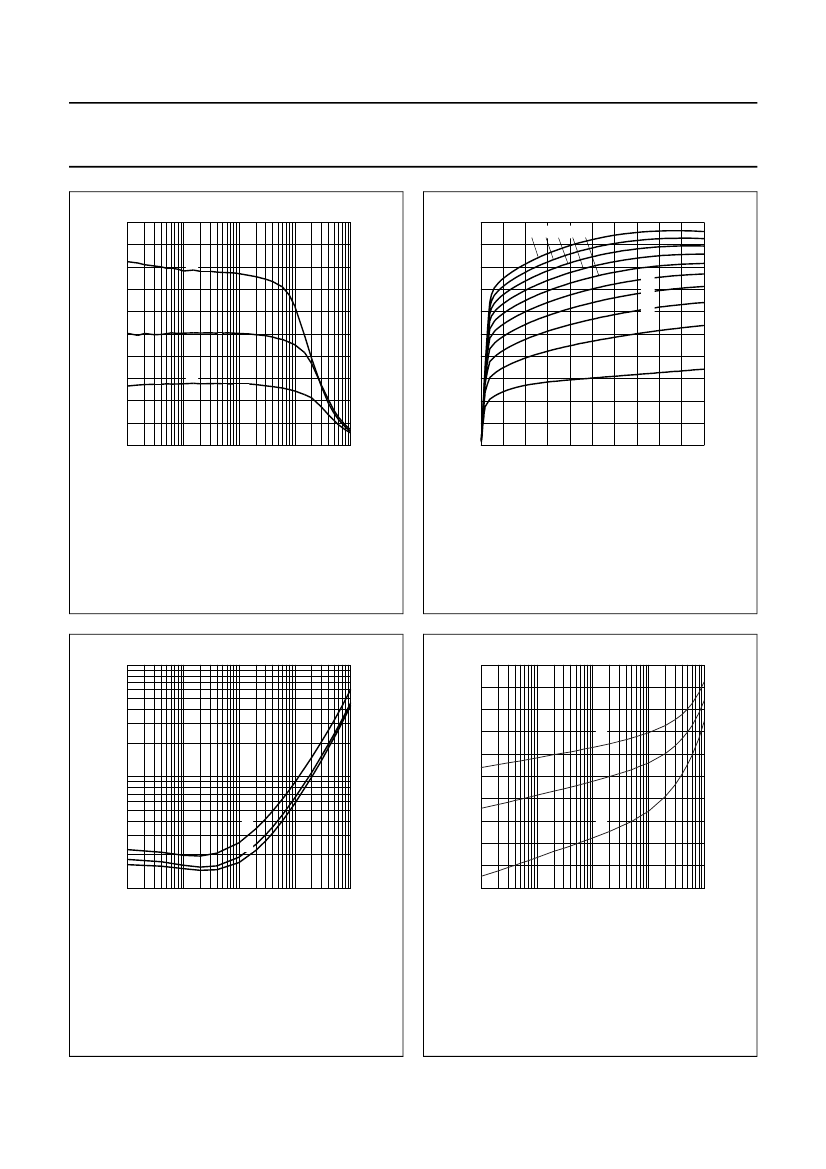

BC817DS Overview

Small Signal Bipolar Transistor

BC817DS Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerNexperia
package instructionSMALL OUTLINE, R-PDSO-G6
Reach Compliance Codecompliant
ECCN codeEAR99
Maximum collector current (IC)0.5 A
Collector-emitter maximum voltage45 V
ConfigurationSEPARATE, 2 ELEMENTS
Minimum DC current gain (hFE)40
JESD-30 codeR-PDSO-G6
JESD-609 codee3
Humidity sensitivity level1
Number of components2
Number of terminals6
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typeNPN
surface mountYES
Terminal surfaceTin (Sn)
Terminal formGULL WING
Terminal locationDUAL
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)100 MHz
Important notice
Dear Customer,
On 7 February 2017 the former NXP Standard Product business became a new company with the
tradename
Nexperia.
Nexperia is an industry leading supplier of Discrete, Logic and PowerMOS
semiconductors with its focus on the automotive, industrial, computing, consumer and wearable
application markets
In data sheets and application notes which still contain NXP or Philips Semiconductors references, use
the references to Nexperia, as shown below.
Instead of http://www.nxp.com, http://www.philips.com/ or http://www.semiconductors.philips.com/,
use
http://www.nexperia.com
Instead of sales.addresses@www.nxp.com or sales.addresses@www.semiconductors.philips.com, use
salesaddresses@nexperia.com
(email)
Replace the copyright notice at the bottom of each page or elsewhere in the document, depending on
the version, as shown below:
- © NXP N.V. (year). All rights reserved or © Koninklijke Philips Electronics N.V. (year). All rights
reserved
Should be replaced with:
-
© Nexperia B.V. (year). All rights reserved.
If you have any questions related to the data sheet, please contact our nearest sales office via e-mail
or telephone (details via
salesaddresses@nexperia.com).
Thank you for your cooperation and
understanding,
Kind regards,
Team Nexperia

BC817DS Related Products

BC817DS 934057319135 934057319115
Description Small Signal Bipolar Transistor 500mA, 45V, 2 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR, PLASTIC, SC-74, 6 PIN Small Signal Bipolar Transistor
Is it Rohs certified? conform to conform to conform to
Maker Nexperia Nexperia Nexperia
package instruction SMALL OUTLINE, R-PDSO-G6 SMALL OUTLINE, R-PDSO-G6 SMALL OUTLINE, R-PDSO-G6
Reach Compliance Code compliant compliant compliant
Maximum collector current (IC) 0.5 A 0.5 A 0.5 A
Collector-emitter maximum voltage 45 V 45 V 45 V
Configuration SEPARATE, 2 ELEMENTS SEPARATE, 2 ELEMENTS SEPARATE, 2 ELEMENTS
Minimum DC current gain (hFE) 40 40 40
JESD-30 code R-PDSO-G6 R-PDSO-G6 R-PDSO-G6
JESD-609 code e3 e3 e3
Humidity sensitivity level 1 1 1
Number of components 2 2 2
Number of terminals 6 6 6
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Polarity/channel type NPN NPN NPN
surface mount YES YES YES
Terminal surface Tin (Sn) Tin (Sn) Tin (Sn)
Terminal form GULL WING GULL WING GULL WING
Terminal location DUAL DUAL DUAL
transistor applications SWITCHING SWITCHING SWITCHING
Transistor component materials SILICON SILICON SILICON
Nominal transition frequency (fT) 100 MHz 100 MHz 100 MHz
ECCN code EAR99 EAR99 -
Base Number Matches - 1 1
