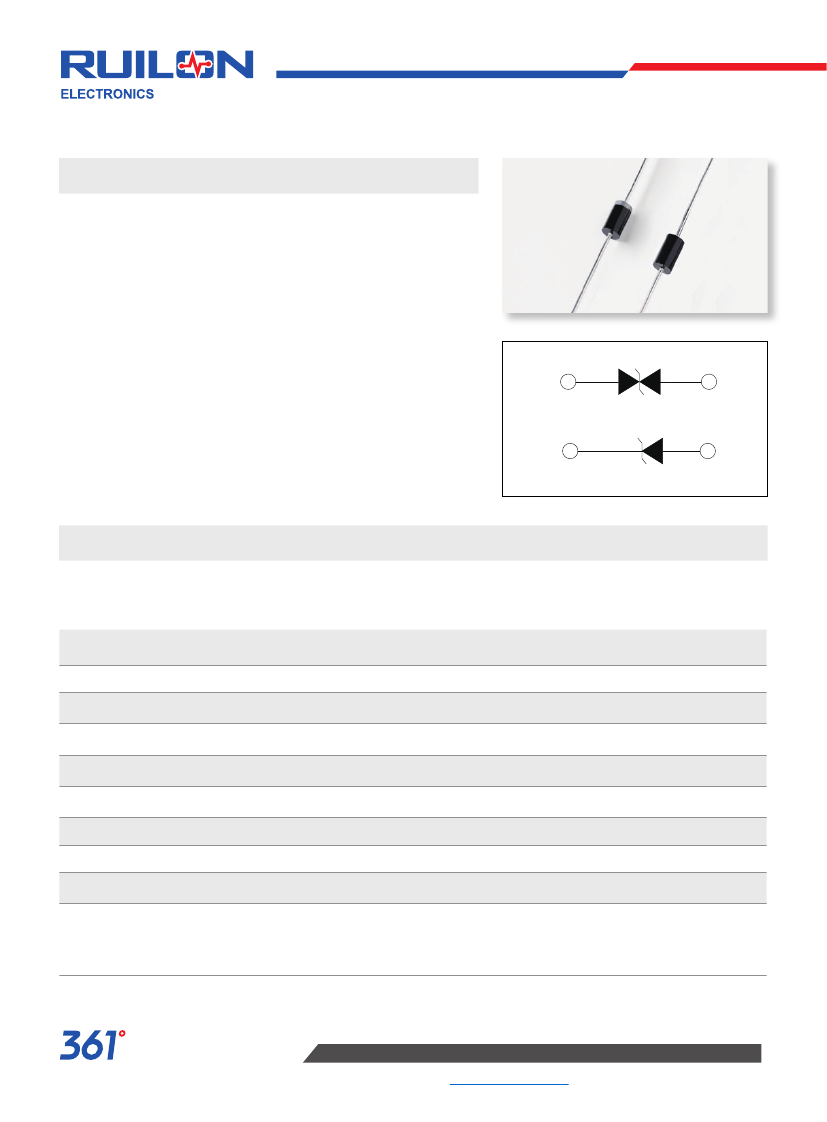

Transient Voltage Suppressors - 5KP Series
Features
1. Halogen-free
2. Rohs compliant
3. Typical maximum temperature coefficient
4. ΔV
BR
=0.1%xV
BR
@25°C x ΔT
5. Glass passivated Chip junction in P800 package
6. 5000W peak pulse capadility at 10x1000μs waveform,repetition rate (duty
cycles):0.01%
7. Fast response time:typically less than 1.0ps from 0 Volts to BV min
8. Excellent clamping capability
9. Low incremental surge resistance
10. Typical IR less than 5μA above 11V
11. High temperature soldering guaranteed: 260°C/40 seconds / 0.375”,
\(9.5mm) lead length, 5lbs., (2.3kg)tension
12. Plastic package has underwriters laboratory
flammability classification 94v-0
UNI
Cathode
BI
Anode
BI
UNI
Applications
TVS devices are ideal for the protection of I/O interfaces,VCC bus and other vulnerable circuits used in telecom, computer,
industrial and consumer electronic applications.
Mechanical Characteristics
Rating
Peak Pulse Power Dissipation by 10x1000μs test waveform
(Fig.1)(Note 1)
Steady State Power Dissipation on
inifinite heat sink at TL=75°C (Fig. 5)
Peak Forward Surge Current, 8.3ms Single Half Sine Wave
Unidirectional only (Note 2)
Maximum Instantaneous Forward Voltage at 25A for
Unidirectional only (Note 3)
Operating junction and Storage Temperature Range.
Typical Thermal Resistance Junction to Lead
Typical Thermal Resistance Junction
to Ambient
Symbol
P
PPM
P
D
I
FSM
V
F
T
J
,
T
STG
R
uJL
R
uJA
Value
5000
8
400
3.5/5.0
-55°C to 175°C
8.0
40
Units
Watts
Watts
Amps
V
°C
°C/W
°C/W
Notes:
1. Non-repetitive current pulse , per Fig. 3 and derated above T
A
= 25°C per Fig. 2.
2. Measured on 8.3ms single half sine wave or equivalent square wave, duty cycle=4 perminute maximum.
3. V
F
<3.5V for devices of V
BR
_< 200V and V
F
<5.0V for devices of V
BR
_> 201V.
Circuit Protection
System
Specifications are subject to change without notice.
Please refer to
http://www.ruilon.com
for current information.
Page:1
Electriacl Characteristics
Type Number
(UNI)
5KP5.0A
5KP6.0A
5KP6.5A
5KP7.0A
5KP7.5A
5KP8.0A
5KP8.5A
5KP9.0A
5KP10A
5KP11A
5KP12A
5KP13A
5KP14A
5KP15A
5KP16A
5KP17A
5KP18A
5KP20A
5KP22A
5KP24A
5KP26A
5KP28A
5KP30A
5KP33A
5KP36A
5KP40A
5KP43A
5KP45A
5KP48A
5KP51A
5KP54A
5KP58A
5KP60A
5KP64A
5KP70A
5KP75A
5KP78A
5KP85A
5KP90A
5KP100A
5KP110A
5KP120A
5KP130A
5KP150A
5KP160A
5KP170A
5KP180A
5KP190A
(BI)
5KP5.0CA
5KP6.0CA
5KP6.5CA
5KP7.0CA
5KP7.5CA
5KP8.0CA
5KP8.5CA
5KP9.0CA
5KP10CA
5KP11CA
5KP12CA
5KP13CA
5KP14CA
5KP15CA
5KP16CA
5KP17CA
5KP18CA
5KP20CA
5KP22CA
5KP24CA
5KP26CA
5KP28CA
5KP30CA
5KP33CA
5KP36CA
5KP40CA
5KP43CA
5KP45CA
5KP48CA
5KP51CA
5KP54CA
5KP58CA
5KP60CA
5KP64CA
5KP70CA
5KP75CA
5KP78CA
5KP85CA
5KP90CA
5KP100CA
5KP110CA
5KP120CA
5KP130CA
5KP150CA
5KP160CA
5KP170CA
5KP180CA
5KP190CA
Reverse Stand-
Off Voltage
VRWM
(V)
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
33.0
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
85.0
90.0
100.0
110.0
120.0
130.0
150.0
160.0
170.0
180.0
190.0
Breakdown
Voltage @IT
V
BR MIN.(V)
6.40
6.67
7.22
7.78
8.33
8.89
9.44
10.00
11.10
12.20
13.30
14.40
15.60
16.70
17.80
18.90
20.00
22.20
24.00
26.70
28.90
31.10
33.30
36.70
40.00
44.40
47.80
50.00
53.30
56.70
60.00
64.40
66.70
71.10
77.80
83.30
86.70
94.40
100.00
111.00
122.00
133.00
144.00
167.00
178.00
189.00
200.00
211.00
V
BR MAX.(V)
7.00
7.37
7.98
8.60
9.21
9.83
10.40
11.10
12.30
13.50
14.70
15.90
17.20
18.50
19.70
20.90
22.10
24.50
26.90
29.50
31.90
34.40
36.80
40.60
44.20
49.10
52.80
55.30
58.90
62.70
66.30
71.20
73.70
78.60
86.00
92.10
95.80
104.00
111.00
123.00
135.00
147.00
159.00
185.00
197.00
209.00
221.00
233.00
Test
Current
I
T(mA)
50
50
50
50
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Maximum
Clamping
Voltage @I
PP
V
C(V)
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
73.5
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
137.0
146.0
162.0
177.0
193.0
209.0
243.0
259.0
275.0
292.0
310.0
Peak Pulse
Current
IPP
(A)
554.3
495.1
445.4
425.0
395.3
375.0
354.2
331.2
300.0
280.2
256.3
237.2
219.8
209.0
196.2
184.8
174.7
157.4
143.7
131.1
121.1
112.3
105.4
95.7
87.8
79.1
73.5
70.2
65.9
61.9
58.6
54.5
52.7
49.5
45.1
42.1
40.5
37.2
34.9
31.5
28.8
26.4
24.4
21.0
19.7
18.5
17.5
16.5
Reverse
Leakage
@VRWM
IR
(µA)
5000
5000
2000
1000
250
150
50
20
15
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
For bidirectional type having V
R
of 10 volts and less, the I
R
limit is double.
For parts without A , the V
BR
is ± 10% and VC is 5% higher than with A parts
Circuit Protection
System
Specifications are subject to change without notice.
Please refer to
http://www.ruilon.com
for current information.
Page:2

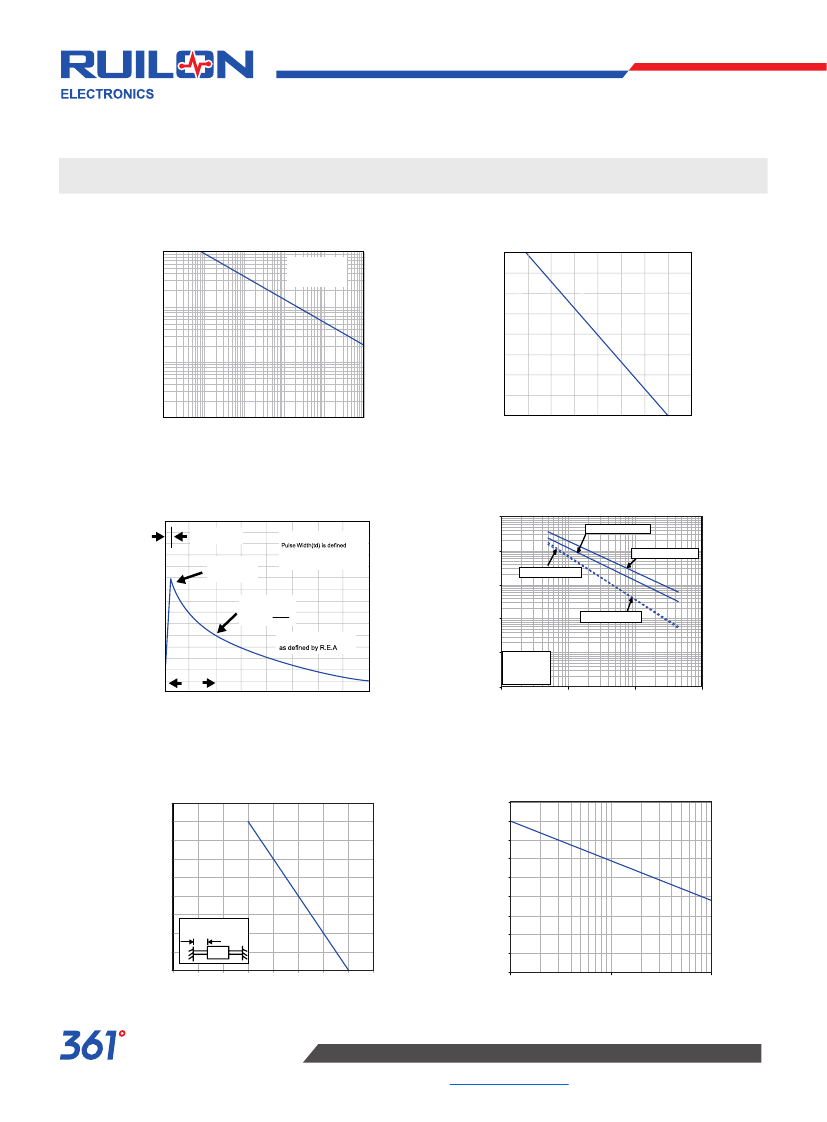

Transient Voltage Suppressors - 5KP Series
Ratings and Characteristic Curves
Figure 1 - Peak Pulse Power Rating Curve
100
P
PPM
- Peak Pulse Power (kW)
Non-repetitive pulse
waveform shown in
Fig.3 T
A
=25ºC
Figure 2 - Pulse Derating Curve
100
Peak Pulse Power (kW)
10
75
50
1
25
0.1
0.1µs
0
1.0µs
10µs
100µs
1.0ms
10ms
t
d
- Pulse Width (sec.)
0
25
50
75
100
125 150 175 200
T
A
- Ambient Temperature (ºC)
Figure 3 - Pulse Waveform
150
I
PPM
- Peak Pulse Current, % I
RSM
t r =10µsec
Peak Value
IPPM
TJ =25°C
as the point where the peak
current decays to 5 0% of I PPM
Figure 4 - Typical Junction Capacitance
100000
Bi-directional V=0V
10000
Uni-directional @ V
R
Uni-directional V=0V
100
Half Value
IPPM
IPPM
2
( )
10/1000µsec. Waveform
Cj (pF)
1000
100
10
Bi-directional @ V
R
50
0
td
0
1.0
2.0
t-Time (ms)
3.0
4.0
1
1.0
Tj=25C
f=1.0MHz
Vsig=50mVp-p
10.0
100.0
1000.0
V
BR
- Reverse Breakdown Voltage (V)
Figure 5 - Steady State Power Derating Curve
9
Steady State Power Dissipation (W)
8
7
6
5
4
3
2
1
0
0
25
50
75
100
125
150
175
200
L = 0.375” (9.5mm)
Lead Lengths
Figure 6 - Maximum Non-Repetitive Peak Forward
Surge Current
450
I
FSM
, Peak Forward Surge Current (A)
400
350
300
250
200
150
100
50
0
1
10
Number of Cycles at 60 Hz
100
T
L
- Lead Temperature(ºC)
Circuit Protection
System
Specifications are subject to change without notice.
Please refer to
http://www.ruilon.com
for current information.
Page:3
Transient Voltage Suppressors - 5KP Series
Soldering Parameters
Feflow Condition
- Temperature Min (T s(min))
Pre Heat
- Temperature Max (T s(min))
- Time (min to max) (t s)
Average ramp up rate (Liquidus Temp (TL) to peak
TS(max) to TL - Ramp-up Rate
Reflow
Peak Temperature (T P)
Time within 5°C of actual peak Temperature (t
p
)
Ramp-down Rate
Time 25°C to peak Temperature (T
P
)
Do not exceed
- Temperature (T L) (Liquidus)
- Time (min to max) (t s)
Lead-free assembly
150°C
200°C
60-180 secs
3°C/second max
3°C/second max
217°C
60-150 seconds
260+0/-5 °C
20-40 seconds
6°C/second max
8 minutes Max.
280°C
T
P
Ramp-up
t
p
one
Critical Z
P
T
L
to T
Physical Specifications
Weight
Case
Polarity
Termina
0.045oz., 1.2g
JEDEC DO-201 molded plastic body over
passivated junction.
Color band denotes the cathode except Bipolar.
Matte Tin axial leads, solderable per
JESD22-B102D.
t
L
T
L
Temperature (T)
T
s(max)
Ramp-down
T
s(min)
Preheat
t
s
Time (t)
Environmental Specifications
Temperature Cycle
JESD22-A104
JESD 22-A102
JESD22-A103
JESD22-A108
JESD22-A106
Pressure Cooker
265°C
10 seconds
1 time
High Temp. Storage
HTRB
Thermal Shock
Flow/Wave Soldering
Peak Temperature :
Dipping Time :
Soldering :
Circuit Protection
System
Specifications are subject to change without notice.
Please refer to
http://www.ruilon.com
for current information.
Page:4
