CS8126-1YTV5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> CS8126-1YTV5

CS8126-1YTV5: DescriptionFixed Positive LDO Regulator, 5V, 0.6V Dropout, PZFM5, TO-220, 5 PIN; CategoryPower/power management The power supply circuit; File Size854KB，9 Pages; ManufacturerCHERRY; Websitehttp://www.cherry-semi.com

Download Datasheet Parametric Compare View All

CS8126-1YTV5 Overview

Fixed Positive LDO Regulator, 5V, 0.6V Dropout, PZFM5, TO-220, 5 PIN

CS8126-1YTV5 Parametric

Parameter Name	Attribute value
Maker	CHERRY
package instruction	TO-220, 5 PIN
Reach Compliance Code	unknown
Maximum drop-back voltage 1	0.6 V
Maximum input voltage	26 V
Minimum input voltage	6 V
JESD-30 code	R-PZFM-T5
Number of functions	1
Number of terminals	5
Working temperatureTJ-Max	150 °C
Working temperature TJ-Min	-40 °C
Maximum output current 1	0.75 A
Maximum output voltage 1	5.15 V
Minimum output voltage 1	4.85 V
Nominal output voltage 1	5 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	ZIG-ZAG

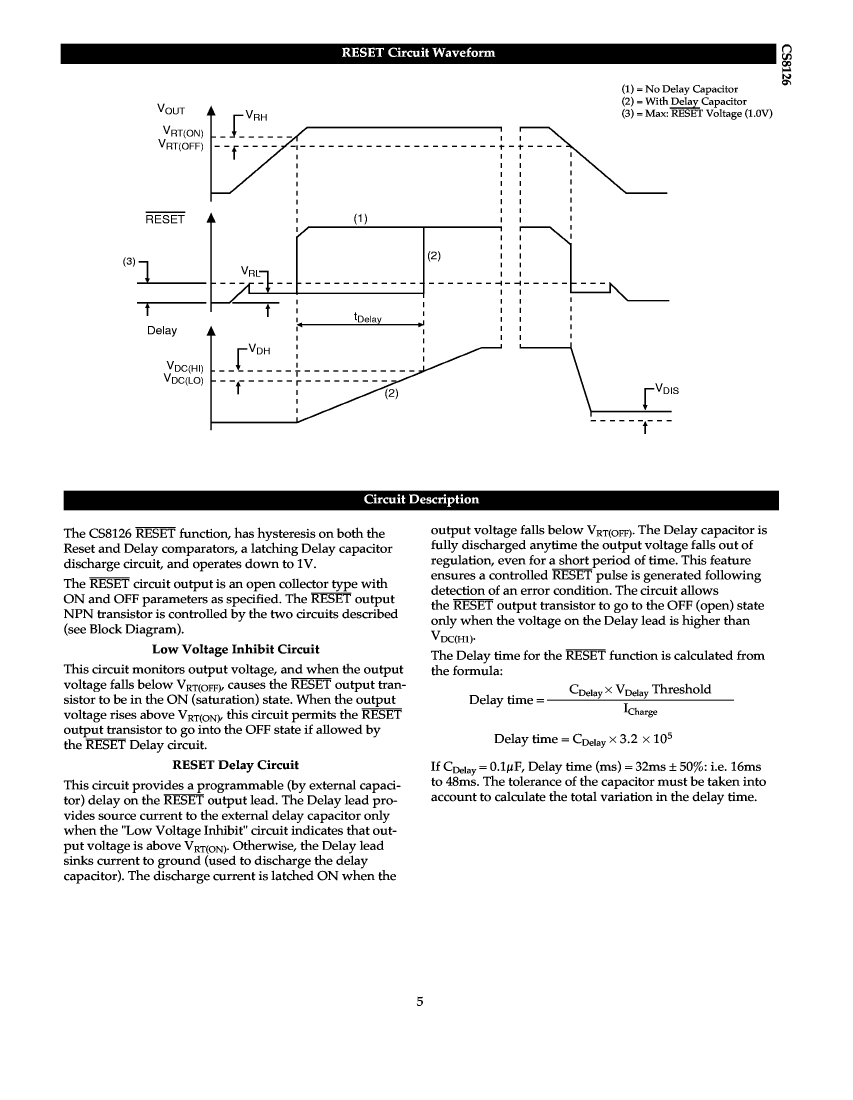

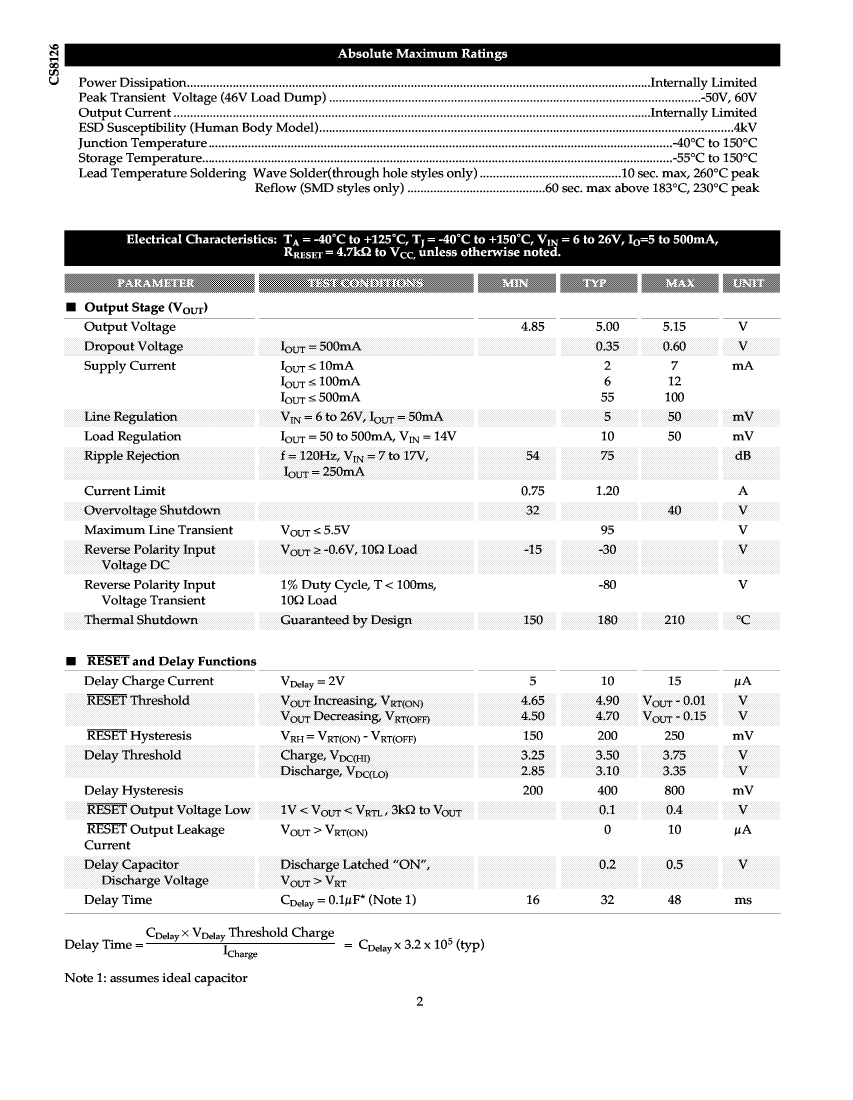

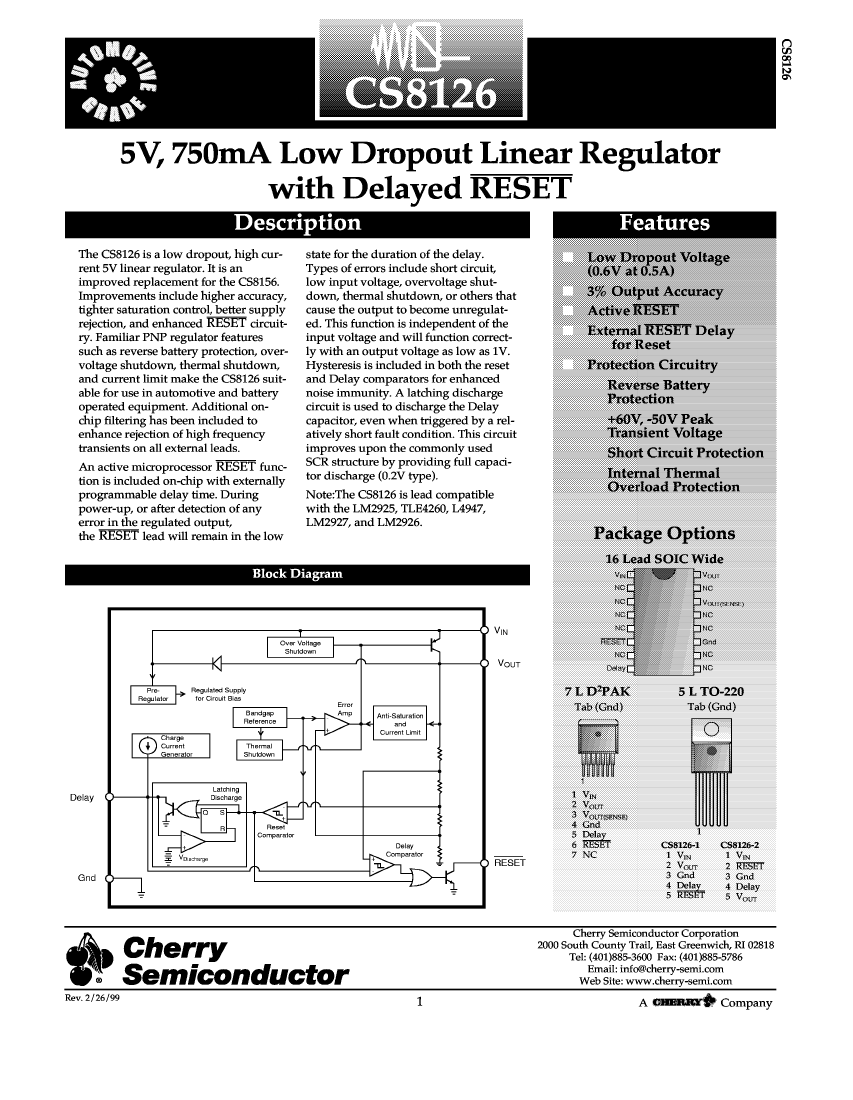

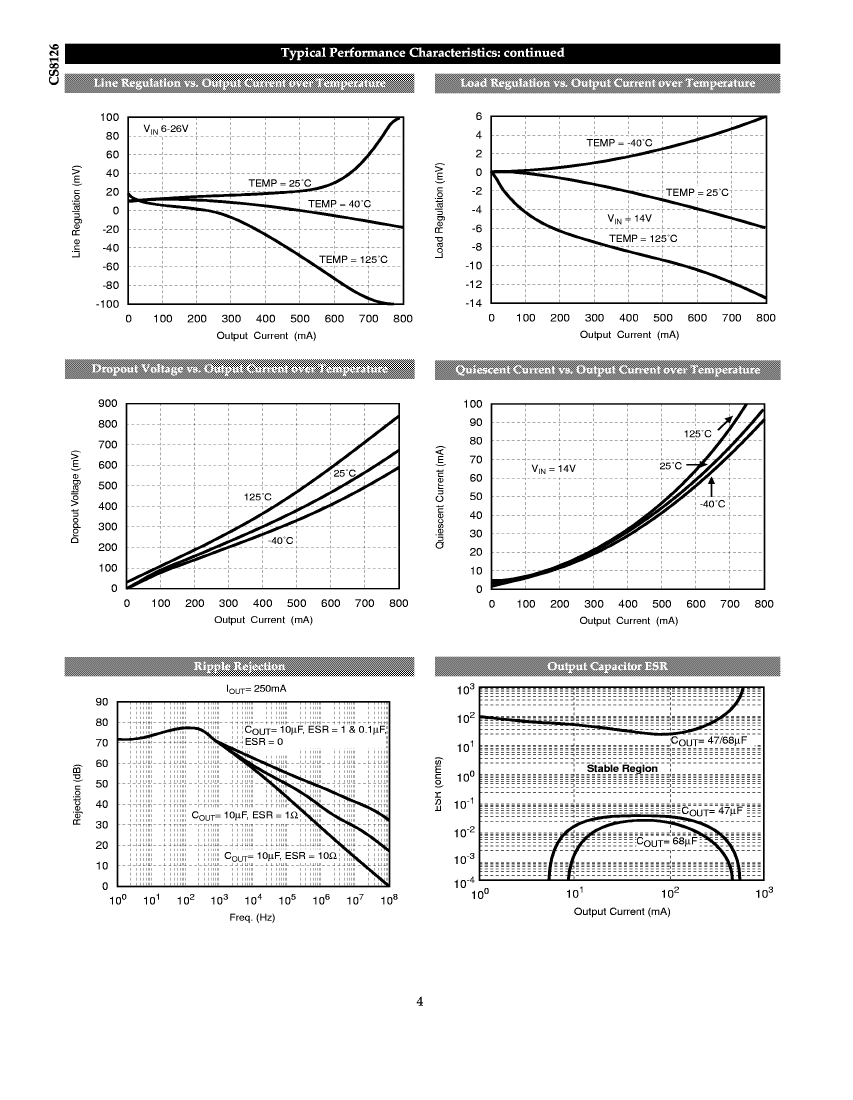

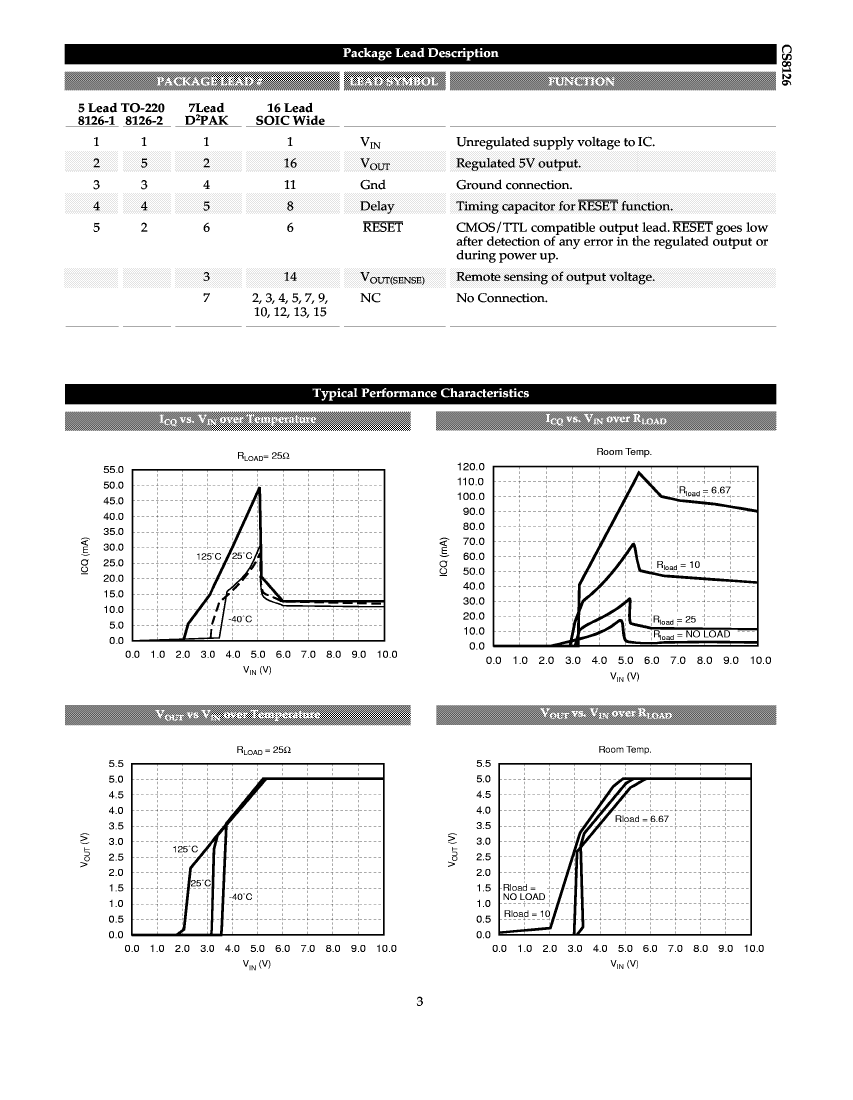

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

CS8126-1YTV5 Related Products

	CS8126-1YTV5	CS8126YDW16	CS8126-1YTH5	CS8126YDPR7	CS8126YDP7	CS8126-2YTV5	CS8126-2YT5	CS8126-2YTH5
Description	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, PZFM5, TO-220, 5 PIN	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PDSO16, SOIC-16	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, PZFM5, TO-220, 5 PIN	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, PSSO7, D2PAK-7	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, PSSO7, D2PAK-7	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, PZFM5, TO-220, 5 PIN	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, PSFM5, TO-220, 5 PIN	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, PZFM5, TO-220, 5 PIN
Maker	CHERRY	CHERRY	CHERRY	CHERRY	CHERRY	CHERRY	CHERRY	CHERRY
package instruction	TO-220, 5 PIN	SOIC-16	TO-220, 5 PIN	D2PAK-7	D2PAK-7	TO-220, 5 PIN	TO-220, 5 PIN	TO-220, 5 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum drop-back voltage 1	0.6 V	0.6 V	0.6 V	0.6 V	0.6 V	0.6 V	0.6 V	0.6 V
Maximum input voltage	26 V	26 V	26 V	26 V	26 V	26 V	26 V	26 V
Minimum input voltage	6 V	6 V	6 V	6 V	6 V	6 V	6 V	6 V
JESD-30 code	R-PZFM-T5	R-PDSO-G16	R-PZFM-T5	R-PSSO-G7	R-PSSO-G7	R-PZFM-T5	R-PSFM-T5	R-PZFM-T5
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	5	16	5	7	7	5	5	5
Working temperatureTJ-Max	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Working temperature TJ-Min	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current 1	0.75 A	0.5 A	0.75 A	0.75 A	0.75 A	0.75 A	0.75 A	0.75 A
Maximum output voltage 1	5.15 V	5.15 V	5.15 V	5.15 V	5.15 V	5.15 V	5.15 V	5.15 V
Minimum output voltage 1	4.85 V	4.85 V	4.85 V	4.85 V	4.85 V	4.85 V	4.85 V	4.85 V
Nominal output voltage 1	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	SMALL OUTLINE	FLANGE MOUNT	SMALL OUTLINE	SMALL OUTLINE	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO	YES	NO	YES	YES	NO	NO	NO
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	ZIG-ZAG	DUAL	ZIG-ZAG	SINGLE	SINGLE	ZIG-ZAG	SINGLE	ZIG-ZAG
