2191QU5-12V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 2191QU5-12V

2191QU5-12V: DescriptionSingle Color LED, Green,; CategoryLED optoelectronic/LED photoelectric; File Size217KB，1 Pages; ManufacturerCML Innovative Technologies; Environmental Compliance

Download Datasheet Parametric Compare View All

2191QU5-12V Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2191QU5-12V	-	-	View	Buy Now

2191QU5-12V Overview

Single Color LED, Green,

2191QU5-12V Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
color	GREEN
color@wavelength	Gree
Configuration	SINGLE WITH BUILT-IN DIODE AND RESISTOR
Maximum forward voltage	13.5 V
JESD-609 code	e3
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	7.11 mm
method of packing	BULK
shape	ROUND
surface mount	NO
Terminal surface	Tin (Sn)
Base Number Matches	1

Preview

Download Datasheet

View All

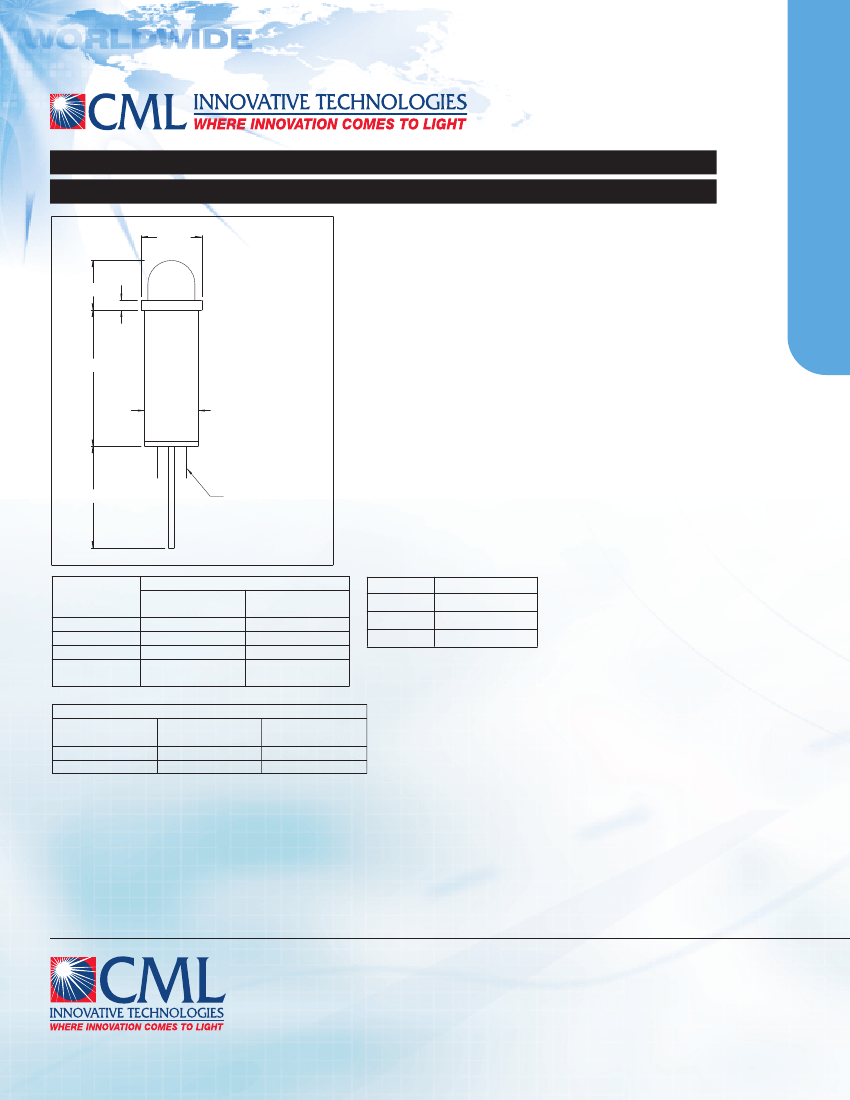

2191QU Series Non-Relampable LED Solid-State Indicator Lights

DESCRIPTION AND FEATURES

All dimensions

in inches.

.380

Solid-state indicator lights complete with built-in current-limiting

resistor and rectifier diode.

Mounting: Ø.310 MIN., supplied with push-on speednut SN1287.

.090

.280

Terminals: Quick-connect, tinned brass .187 x .020

Lens: Polycarbonate

Anode(+): Marked above terminal

1.310

Bezel: Polished stainless steel. For black finish add "X" after the

series letter(s).

Ø.310 MAX.

Housing: White Nylon

.690

.187 T E R MINALS

Lens C olor

R ed

G reen

Y ellow

Internal R es is tor

(ohms )

LE D S olid S tate Indicator

Model No.

(12V )

(24V )

2191QU 1 -12V

2191QU 1 -24V

2191QU 5 -12V

2191QU 5 -24V

2191QU 7 -12V

2191QU 7-24V

390

1000

Lens C olor

R ed

G reen

Y ellow

Incorporates LE D*

4304H1

4304H5

4304H7

* Also incorporates 1N4004

(400 P.I.V.) rectifier diode.

To use 24V model: Beyond 32VAC add 30 ohms

per volt; beyond 24 VDC add 50 ohms per volt.

Use 1/2W resistor up to 50V; 1W resistor for 50V

to 70V; 2W resistor for 75V to 125V. Do not use

beyond 125V.

V oltage T able

Nominal

12V

24V

V AC

10 to 20

22 to 32

V DC

6 t o 13.5

12 to 24

America:

CML Innovative Technologies,Inc.

147 Central Avenue

Hackensack, NJ 07601 -USA

Tel:1-201-489 -8989

Fax:1-201-489 -6911

e-mail:americas@cml-it.com

Europe:

CML Technologies GmbH &Co.KG

Robert-Bunsen-Str.1

67098 Bad Dürkheim -GERMANY

Tel:+49 (0)6322 9567-0

Fax:+49 (0)6322 9567-88

e-mail:europe@cml-it.com

Asia:

CML Innovative Technologies,Inc.

61 Aida Street

Singapore 459975

Tel:(65)9630 -5003

e-mail:asia@cml-it.com

CML-IT reserves the right to make specification revisions that enhance the design and/or performance of the product

2191QU Series Non-Relampable

LED Solid-State Indicator Lights

2191QU5-12V Related Products

	2191QU5-12V	2191QU1-12V	2191QUX1-24V	2191QUX5-12V	2191QUX5-24V	2191QUX7-24V	2191QUX1-12V	2191QUX7-12V	2191QU7-12V
Description	Single Color LED, Green,	Single Color LED, Red,	Single Color LED, Red,	Single Color LED, Green,	Single Color LED, Green, ROHS COMPLIANT PACKAGE-2	Single Color LED, Yellow,	Single Color LED, Red,	Single Color LED, Yellow,	Single Color LED, Yellow,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
color	GREEN	RED	RED	GREEN	GREEN	YELLOW	RED	YELLOW	YELLOW
Configuration	SINGLE WITH BUILT-IN DIODE AND RESISTOR	SINGLE WITH BUILT-IN DIODE AND RESISTOR	SINGLE WITH BUILT-IN DIODE AND RESISTOR	SINGLE WITH BUILT-IN DIODE AND RESISTOR	SINGLE WITH BUILT-IN DIODE AND RESISTOR	SINGLE WITH BUILT-IN DIODE AND RESISTOR	SINGLE WITH BUILT-IN DIODE AND RESISTOR	SINGLE WITH BUILT-IN DIODE AND RESISTOR	SINGLE WITH BUILT-IN DIODE AND RESISTOR
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	7.11 mm	7.11 mm	7.11 mm	7.11 mm	7.11 mm	7.11 mm	7.11 mm	7.11 mm	7.11 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Base Number Matches	1	1	1	1	1	1	1	1	1
