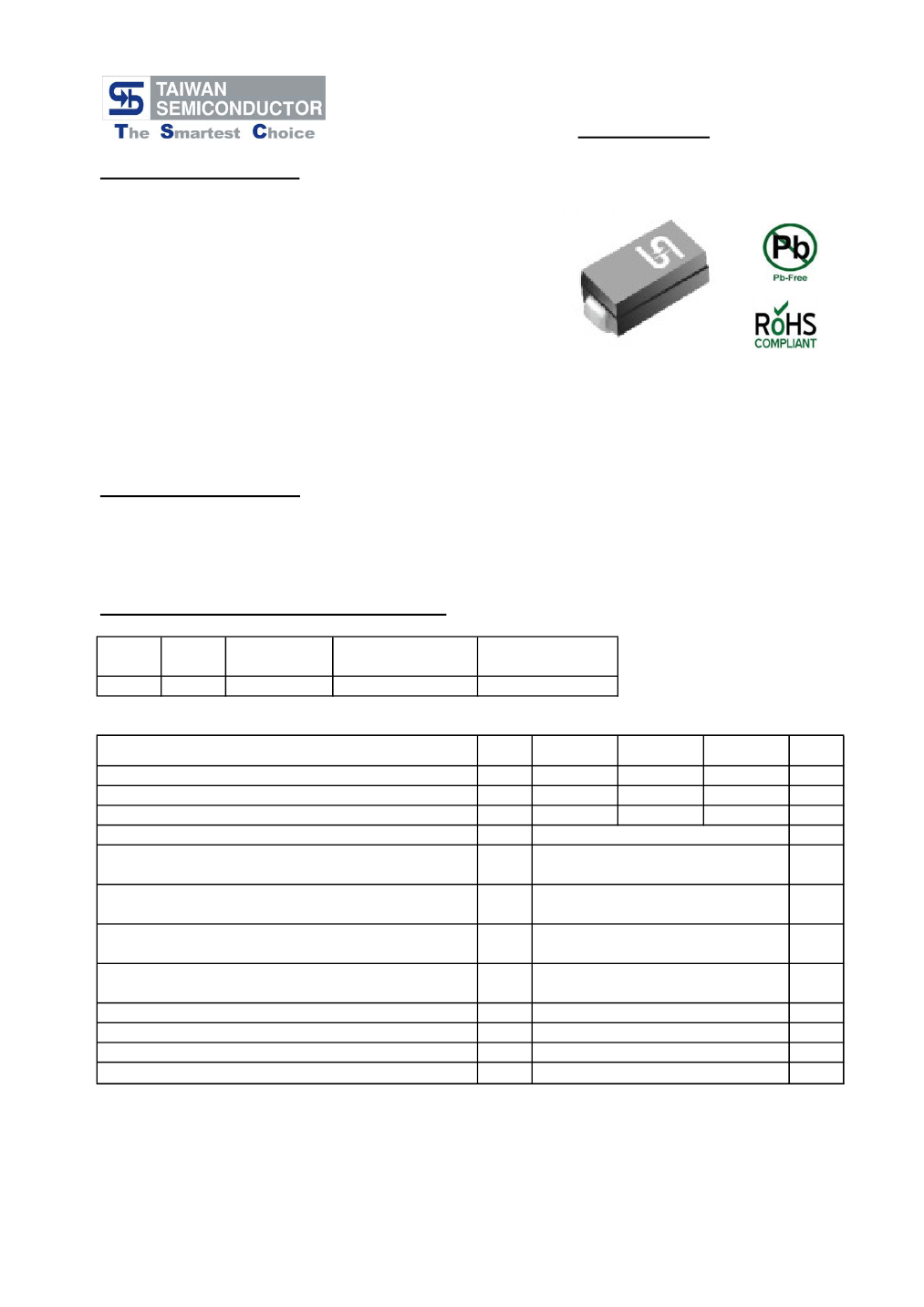

BYG20D - BYG20J
1.5 AMPS High Efficient Surface Mount Rectifiers
SMA/DO-214AC
Features
Glass passivated junction chip.
For surface mounted application
Low forward voltage drop
Low profile package
Built-in stain relief, ideal for automatic
placement
Fast switching for high efficiency
High temperature soldering:
260℃/10 seconds at terminals
Plastic material used carries Underwriters
Laboratory Classification 94V-0
Meet MSL level 1, per J-STD-020D,
lead free maximum peak of 260℃
Green compound with suffix "G" on packing
code & prefix "G" on datecode

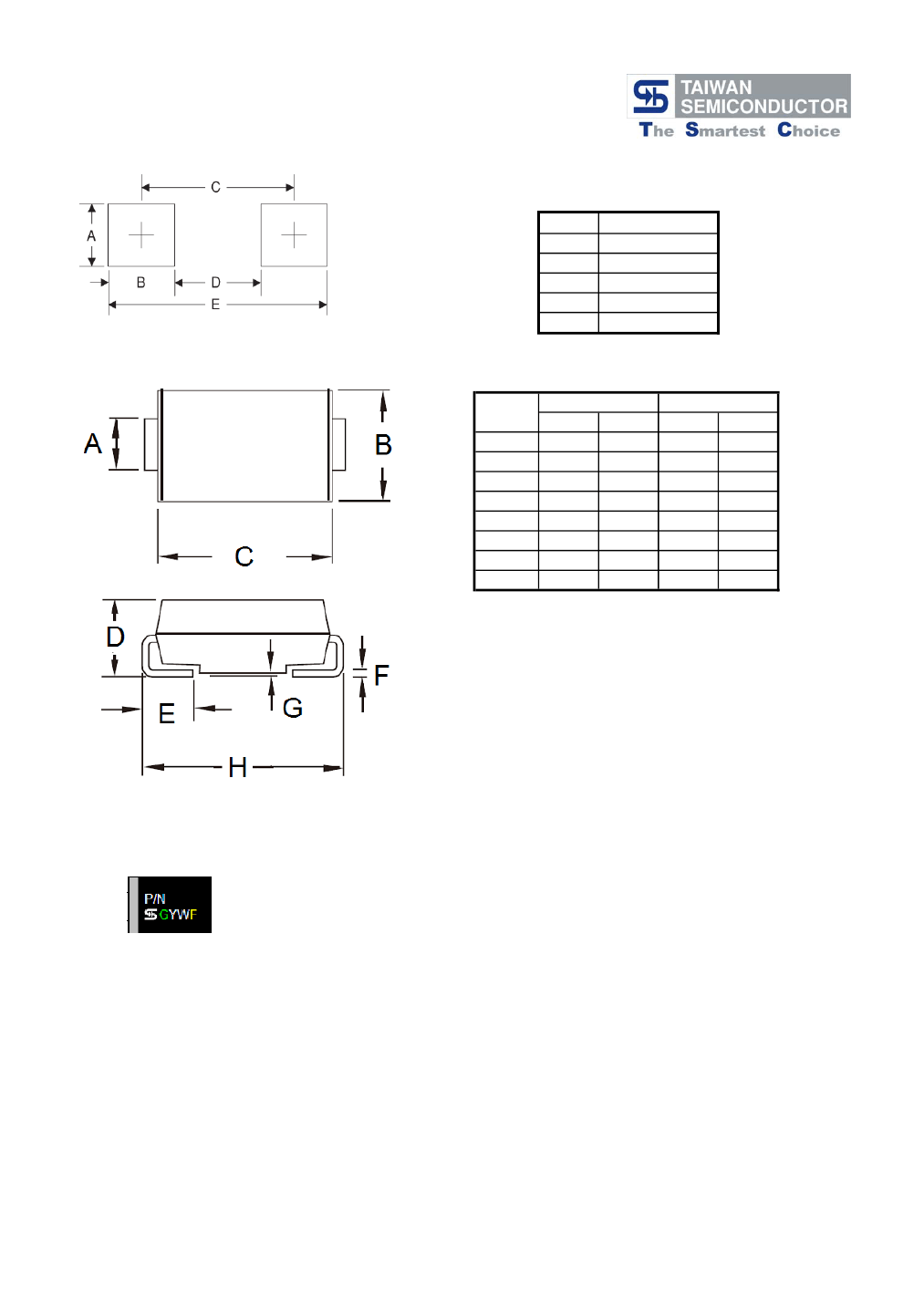

Mechanical Data
Case: Molded plastic
Terminal: Pure tin plated, lead free
Polarity: Indicated by cathode band

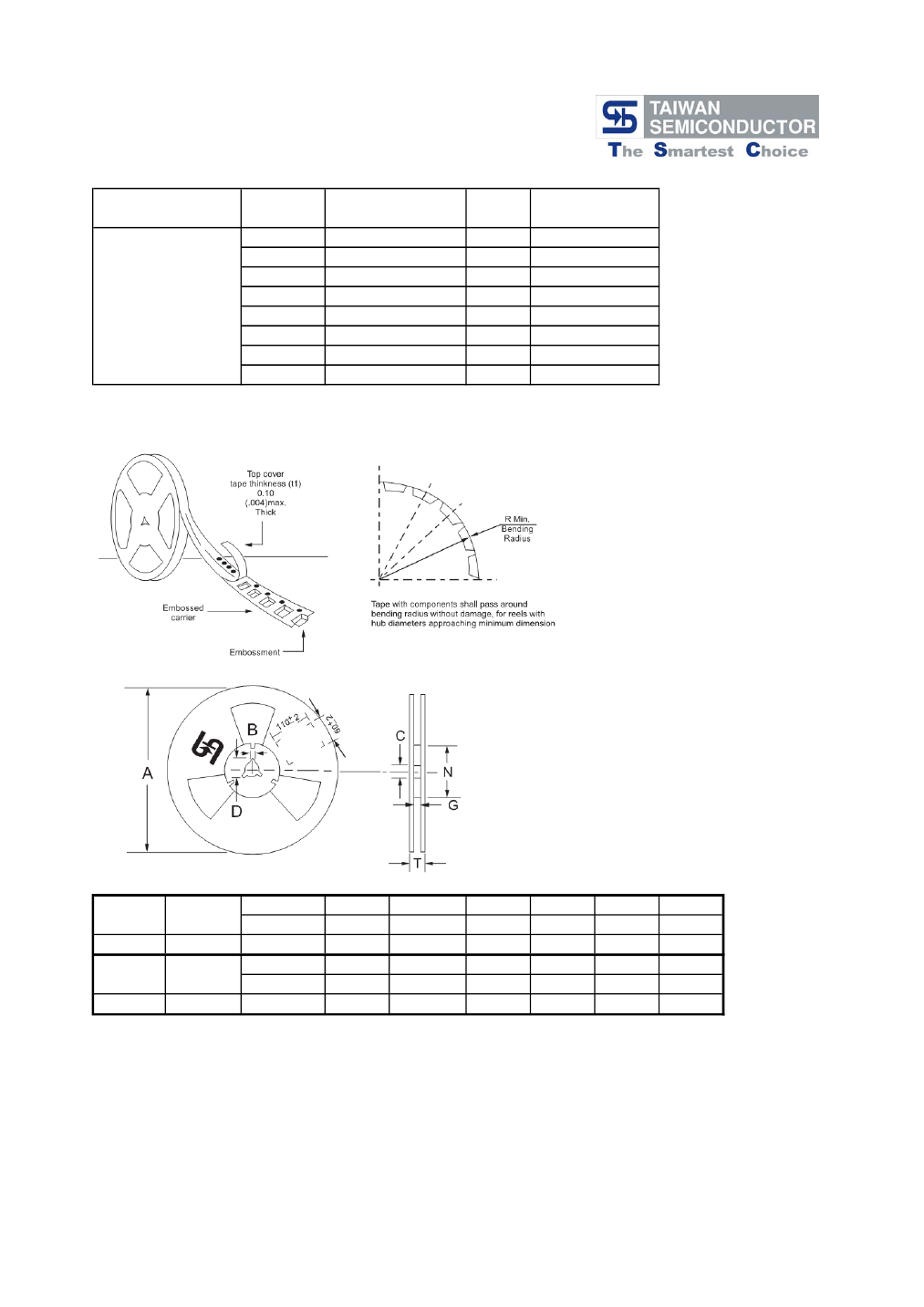

Packing: 12mm tape per EIA STD RS-481
Weight: 0.064 grams
Ordering Information (example)
Part No.
BYG20D
Package
SMA
Packing
1.8K / 7" REEL
Packing code
R3
Packing code
(Green)
R3G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Parameter
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous
Forward Voltage (Note 1)
@ 1.0 A
@ 1.5 A
T
A
=25
℃
T
A
=100
℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
E
RSM
Trr
R
θjA
T
J
T
STG
BYG20D
200
140
200
BYG20G
400
280
400
1.5
30
1.3
1.4
1
10
20
75
100
- 55 to + 150
- 55 to + 150
BYG20J
600
420
600
Unit
V
V
V
A
A
V
uA
mJ
nS
O
Maximum Reverse Current @ Rated VR
Pulse energy in avalanche mode, non repetitive
(Inductive load switch off ) T
A
=25℃, L=120mH
Maximum Reverse Recovery Time (Note 2)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
C/W
O
O
C
C
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Version:B13

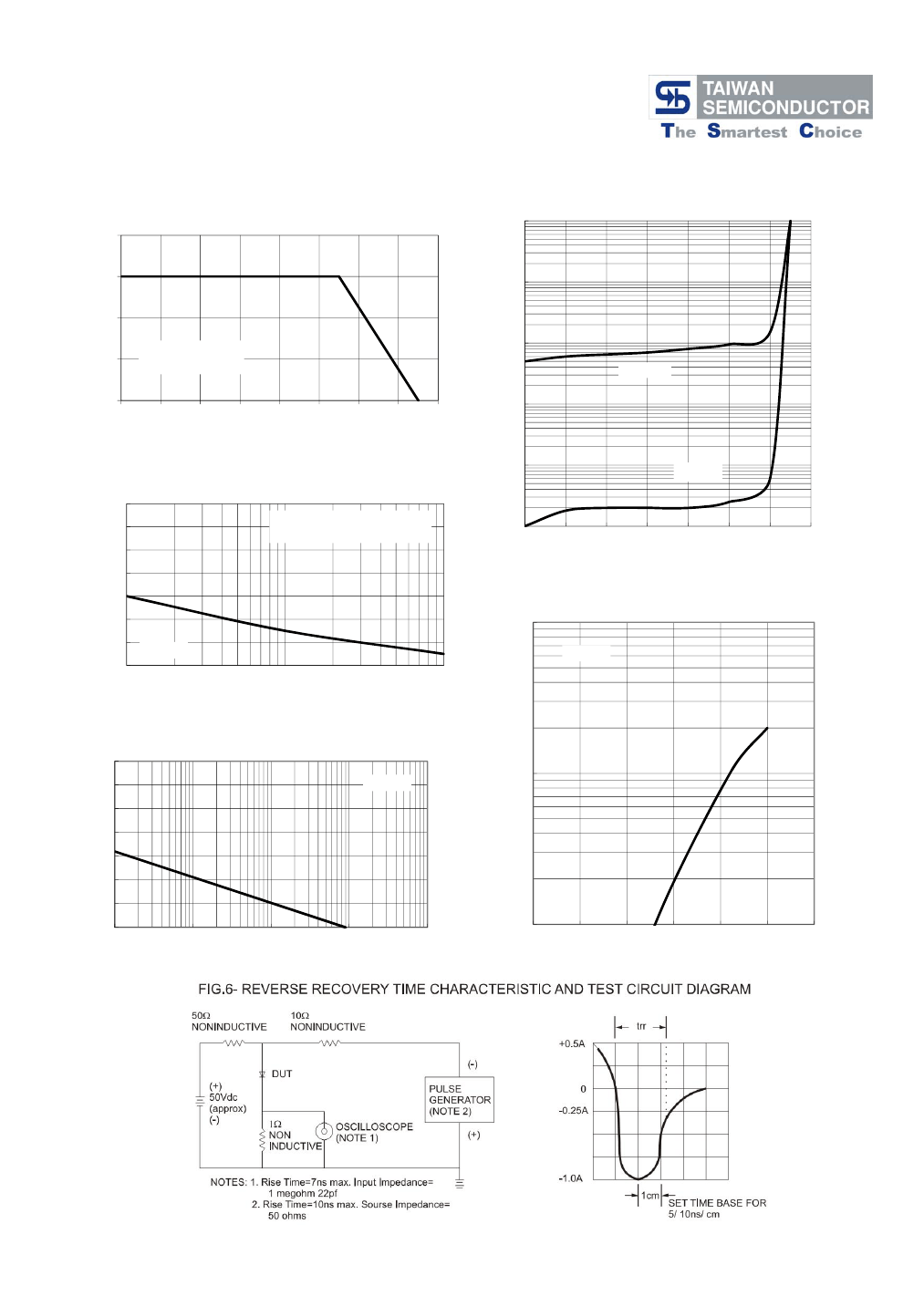

RATINGS AND CHARACTERISTIC CURVES (BYG20D THRU BYG20J)
FIG.1 FORWARD CURRENT DERATING CURVE
2
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
100
AVERAGE FORWARD
CURRENT (A)
1.5
INSTANTANEOUS REVERSE CURRENT (uA)
10
1
RESISTIVE OR
INDUCTIVE LOAD
1
TA=125℃
0.1
0.5
0
0
20
40
60
80
100
120
140
160
LEAD TEMPERATURE (
o
C)
PEAK FORWARD SURGE URRENT (A)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT
70
60
50
40
30
20
10
0
1
10
100
TA=25℃
8.3mS Single Half Sine Wave
JEDEC Method
0.01
TA=25℃
0.001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 5 TYPICAL FORWARD CHARACTERISTICS
10
TA=25℃
INSTANTANEOUS FORWARD CURRENT (A)
NUMBER OF CYCLES AT 60 Hz
FIG. 4 TYPICAL JUNCTION CAPACITANCE
175
150
CAPACITANCE (pF)
125
100
75
50
25
0
0.1
1
10
REVERSE VOLTAGE (V)
100
1000
TA=25℃
1
0.1
0.4
0.6
0.8
1
1.2
1.4
1.6
FORWARD VOLTAGE (V)
Version:B13
