QS7306-20SO datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> QS7306-20SO

QS7306-20SO: DescriptionFIFO, 64KX4, Synchronous, CMOS, PDSO24,; Categorystorage storage; File Size32KB，2 Pages; ManufacturerQuality Semiconductor Inc

Download Datasheet Parametric Compare View All

QS7306-20SO Overview

FIFO, 64KX4, Synchronous, CMOS, PDSO24,

QS7306-20SO Parametric

Parameter Name	Attribute value
Maker	Quality Semiconductor Inc
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G24
memory density	262144 bit
memory width	4
Number of functions	1
Number of terminals	24
word count	65536 words
character code	64000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX4
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL

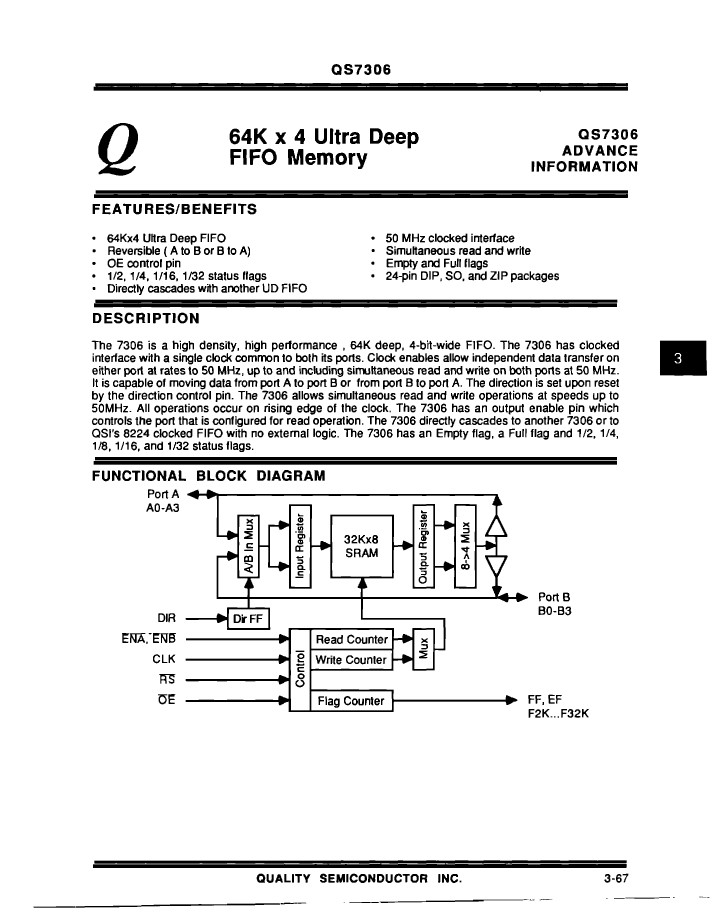

Preview

Download Datasheet

View All

QS7306-20SO Related Products

	QS7306-20SO	QS7306-25SO	QS7306-40SO	QS7306-33SO	QS7306-50SO	QS7306-50D	QS7306-50P	QS7306-33P
Description	FIFO, 64KX4, Synchronous, CMOS, PDSO24,	FIFO, 64KX4, Synchronous, CMOS, PDSO24,	FIFO, 64KX4, Synchronous, CMOS, PDSO24,	FIFO, 64KX4, Synchronous, CMOS, PDSO24,	FIFO, 64KX4, Synchronous, CMOS, PDSO24,	FIFO, 64KX4, Synchronous, CMOS, CDIP24,	FIFO, 64KX4, Synchronous, CMOS, PDIP24,	FIFO, 64KX4, Synchronous, CMOS, PDIP24,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-GDIP-T24	R-PDIP-T24	R-PDIP-T24
memory density	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit
memory width	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24	24
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000	64000	64000	64000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	64KX4	64KX4	64KX4	64KX4	64KX4	64KX4	64KX4	64KX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Quality Semiconductor Inc	-	Quality Semiconductor Inc	Quality Semiconductor Inc	Quality Semiconductor Inc	Quality Semiconductor Inc	Quality Semiconductor Inc	Quality Semiconductor Inc
