5962R9569001TCC: DescriptionQUAD OP-AMP, 8MHz BAND WIDTH, CDIP14, SIDE BRAZED, CERAMIC, DIP-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size25KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962R9569001TCC Overview

QUAD OP-AMP, 8MHz BAND WIDTH, CDIP14, SIDE BRAZED, CERAMIC, DIP-14

5962R9569001TCC Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	compliant
ECCN code	USML XV(E)
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	1 µA
frequency compensation	YES
Maximum input offset voltage	5000 µV
JESD-30 code	R-CDIP-T14
JESD-609 code	e4
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class T
Maximum seat height	5.08 mm
minimum slew rate	0.5 V/us
Nominal slew rate	2 V/us
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
Nominal Uniform Gain Bandwidth	8000 kHz
Minimum voltage gain	40000
width	7.62 mm

Preview

Download Datasheet

View All

HS-5104ARH-T

Data Sheet

July 1999

File Number

4606.1

Radiation Hardened Low Noise Quad

Operational Ampliﬁer

Intersil‘s Satellite Applications

(SAF) devices are

fully tested and guaranteed to 100kRAD total dose. These

QML Class T devices are processed to a standard ﬂow

intended to meet the cost and shorter lead-time needs of

large volume satellite manufacturers, while maintaining a

high level of reliability.

The HS-5104ARH-T is a radiation hardened, monolithic

quad operational ampliﬁer that provides highly reliable

performance in harsh radiation environments. Its excellent

noise characteristics coupled with a unique array of dynamic

speciﬁcations make this ampliﬁer well-suited for a variety of

satellite system applications. Dielectrically isolated, bipolar

processing makes this device immune to Single Event

Latch-up.

The HS-5104ARH-T shows almost no change in offset

voltage after exposure to 100K RAD(Si) gamma radiation,

with only a minor increase in current. Complementing these

speciﬁcations is a post radiation open loop gain in excess of

40K.

This quad operational ampliﬁer is available in an industry

standard pinout, allowing for immediate interchangeability

with most other quad operational ampliﬁers.

Flow

Features

• QML Class T, Per MIL-PRF-38535

• Radiation Performance

- Gamma Dose (γ) 1 x 10

RAD(Si)

- No Latch-Up, Dielectrically Isolated Device Islands

• Low Noise

- At 1kHz . . . . . . . . . . . . . . . . . . . . . . . . 4.3nV/√Hz (Typ)

- At 1kHz . . . . . . . . . . . . . . . . . . . . . . . . 0.6pA/√Hz (Typ)

• Low Offset Voltage . . . . . . . . . . . . . . . . . . . . 3.0mV (Max)

• High Slew Rate . . . . . . . . . . . . . . . . . . . . . . 2.0V/µs (Typ)

• Gain Bandwidth Product . . . . . . . . . . . . . . . 8.0MHz (Typ)

Pinouts

HS1-5104ARH-T (SBDIP), CDIP2-T14

TOP VIEW

OUT 1

-IN1

+IN1

V+

+IN2

-IN2

OUT 2

14 OUT 4

13 -IN4

12 +IN4

11 V-

10 +IN3

-IN3

OUT 3

Speciﬁcations

Speciﬁcations for Rad Hard QML devices are controlled by

the Defense Supply Center in Columbus (DSCC). The SMD

numbers listed below must be used when ordering.

Detailed Electrical Speciﬁcations for the HS-5104ARH-T

are contained in SMD 5962-95690.

A “hot-link” is provided

from our website for downloading.

www.intersil.com/spacedefense/newsafclasst.asp

Intersil‘s Quality Management Plan (QM Plan), listing all

Class T screening operations, is also available on our

website.

www.intersil.com/quality/manuals.asp

HS9-5104ARH-T (FLATPACK), CDFP3-F14

TOP VIEW

OUT 1

-IN1

+IN1

V+

+IN2

-IN2

OUT 2

OUT 4

-IN4

+IN4

V-

+IN3

-IN3

OUT 3

Ordering Information

ORDERING

NUMBER

5962R9569001TCC

HS1-5104ARH/Proto

5962R9569001TXC

HS9-5104ARH/Proto

PART

NUMBER

HS1-5104ARH-T

HS1-5104ARH/Proto

HS9-5104ARH-T

HS9-5104ARH/Proto

TEMP.

RANGE

(

-55 to 125

NOTE:

Minimum order quantity for -T is 150 units through

distribution, or 450 units direct.

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

www.intersil.com or 407-727-9207

Intersil Corporation 1999

Satellite Applications Flow™ (SAF) is a trademark of Intersil Corporation.

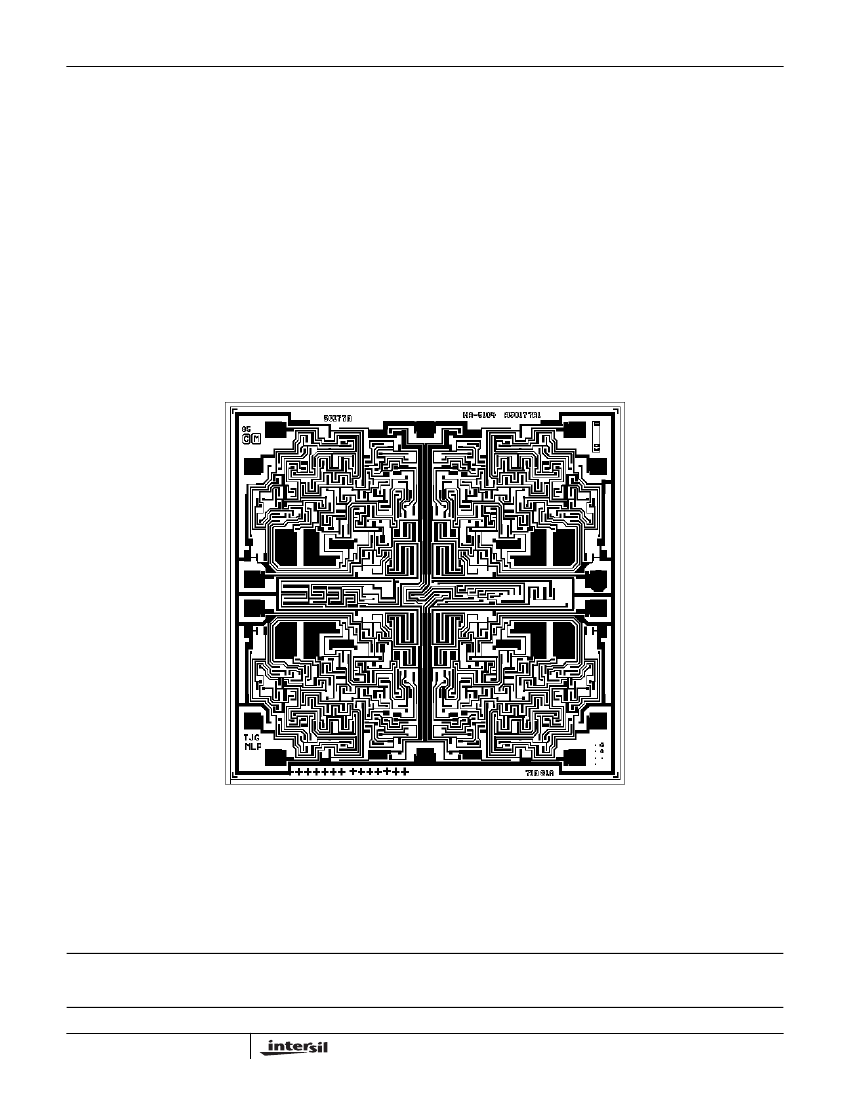

5962R9569001TCC Related Products

	5962R9569001TCC	5962R9569001TXC
Description	QUAD OP-AMP, 8MHz BAND WIDTH, CDIP14, SIDE BRAZED, CERAMIC, DIP-14	QUAD OP-AMP, 8MHz BAND WIDTH, CDFP14, CERAMIC, DFP-14
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	DIP	DFP
package instruction	DIP, DIP14,.3	DFP, FL14,.3
Contacts	14	14
Reach Compliance Code	compliant	compli
ECCN code	USML XV(E)	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	1 µA	1 µA
frequency compensation	YES	YES
Maximum input offset voltage	5000 µV	5000 µV
JESD-30 code	R-CDIP-T14	R-CDFP-F14
JESD-609 code	e4	e4
low-dissonance	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	4	4
Number of terminals	14	14
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP
Encapsulate equivalent code	DIP14,.3	FL14,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class T	MIL-PRF-38535 Class T
Maximum seat height	5.08 mm	2.92 mm
minimum slew rate	0.5 V/us	0.5 V/us
Nominal slew rate	2 V/us	2 V/us
Supply voltage upper limit	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	YES
technology	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY
Terminal surface	GOLD	GOLD
Terminal form	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V
Nominal Uniform Gain Bandwidth	8000 kHz	8000 kHz
Minimum voltage gain	40000	40000
width	7.62 mm	6.285 mm
