CMPZ4614LEADFREE datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> CMPZ4614LEADFREE

CMPZ4614LEADFREE: DescriptionZener Diode, 1.8V V(Z), 5%, 0.35W, Silicon, Unidirectional, SOT-23, 3 PIN; CategoryDiscrete semiconductor diode; File Size389KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CMPZ4614LEADFREE Overview

Zener Diode, 1.8V V(Z), 5%, 0.35W, Silicon, Unidirectional, SOT-23, 3 PIN

CMPZ4614LEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Parts packaging code	SOT-23
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW NOISE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.35 W
Certification status	Not Qualified
Nominal reference voltage	1.8 V
surface mount	YES
technology	ZENER
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Maximum voltage tolerance	5%
Working test current	0.25 mA

Preview

Download Datasheet

View All

CMPZ4614

THRU

CMPZ4627

SURFACE MOUNT

LOW NOISE

SILICON ZENER DIODE

350mW, 5% TOLERANCE

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMPZ4614 Series

types are high quality silicon zener diodes designed for

low leakage, low current and low noise applications.

MARKING CODE: CONSULT FACTORY

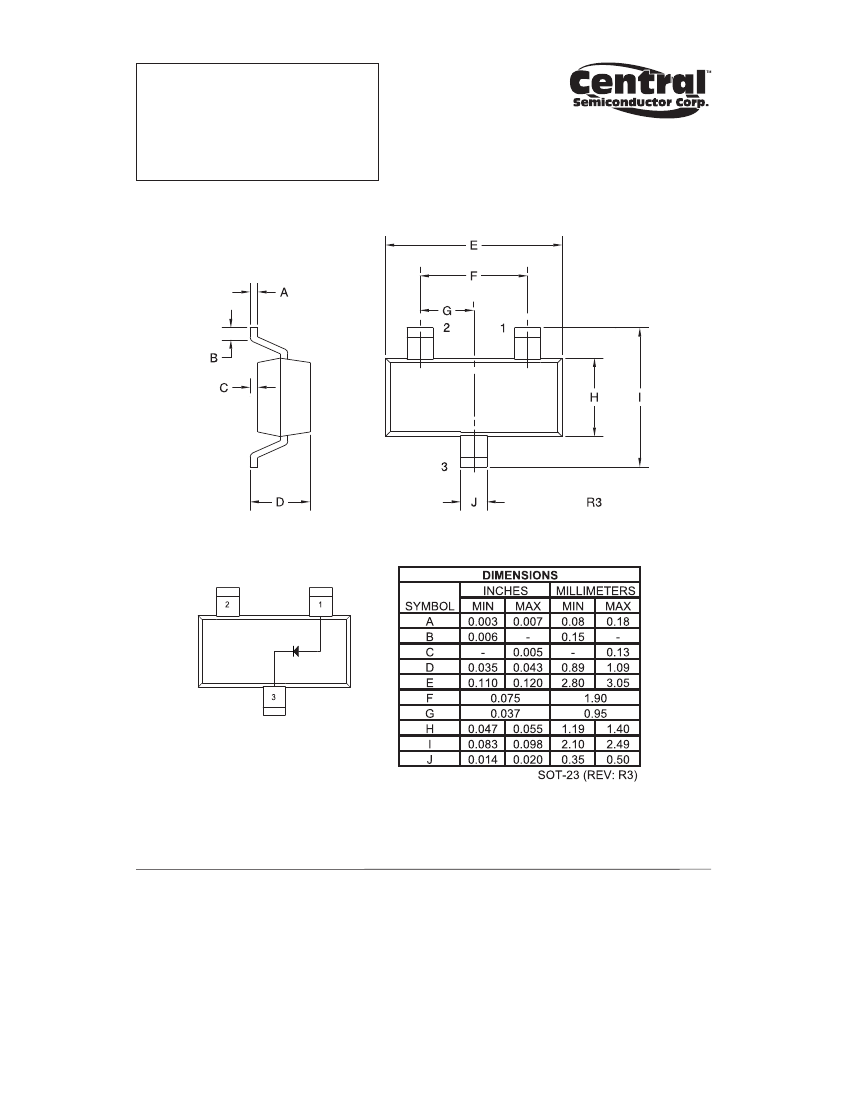

SOT-23 CASE

MAXIMUM RATINGS:

(TA=25°C unless otherwise noted)

Power Dissipation

Operating and Storage Junction Temperature

SYMBOL

TJ, Tstg

UNITS

°C

350

-65 to +150

ELECTRICAL CHARACTERISTICS:

(TA=25°C unless otherwise noted) VF=1.0V MAX @ IF=200mA (for all types)

NOMINAL

ZENER

VOLTAGE

VZ @ IZT

CMPZ4614

CMPZ4615

CMPZ4616

CMPZ4617

CMPZ4618

CMPZ4619

CMPZ4620

CMPZ4621

CMPZ4622

CMPZ4623

CMPZ4624

CMPZ4625

CMPZ4626

CMPZ4627

1.8

2.0

2.2

2.4

2.7

3.0

3.3

3.6

3.9

4.3

4.7

5.1

5.6

6.2

TEST

CURRENT

IZT

μA

250

TYPE

MAXIMUM MAXIMUM REVERSE

ZENER

LEAKAGE CURRENT

IMPEDANCE

ZZT @ IZT

1200

1250

1300

1400

1500

1600

1650

1700

1650

1600

1550

1500

1400

1200

MAXIMUM

ZENER

CURRENT

IZM

120

110

100

MAXIMUM

NOISE DENSITY

ND @ IZT

μV/√Hz

1.0

2.0

4.0

5.0

μA

7.5

5.0

4.0

2.0

1.0

0.8

7.5

5.0

4.0

1.0

1.5

2.0

3.0

4.0

5.0

R7 (3-February 2010)
