SPECIFICATIONS
Current Rating:
Contact Material:
Contact Resistance:
Housing Material:
Insulator Resistance:
Actuator Material:
Leg Material:
Withstanding:
Operating Temp:
Series
Pitch
Type
Contacts
CFPC
050
2434
XX
FPC connector 100=1.00mm 2434 type 04-32
0.5 Amp
Copper
20mΩ max.
Thermoplastic UL94V-0
800MΩ min.
Thermoplastic UL94V-0
Copper
AC 500V
-40C ~ +85C
D
E
F
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
Style
Plating
X
XX
R=Right angle
TN=Tin
V=Vertical
U=Upper contacts
B=Bottom contacts
E
F
Date
09/28/10
09/28/10
09/28/10 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
CFPC-100-2434-XX-RB-TN
G
7
8
9
G
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

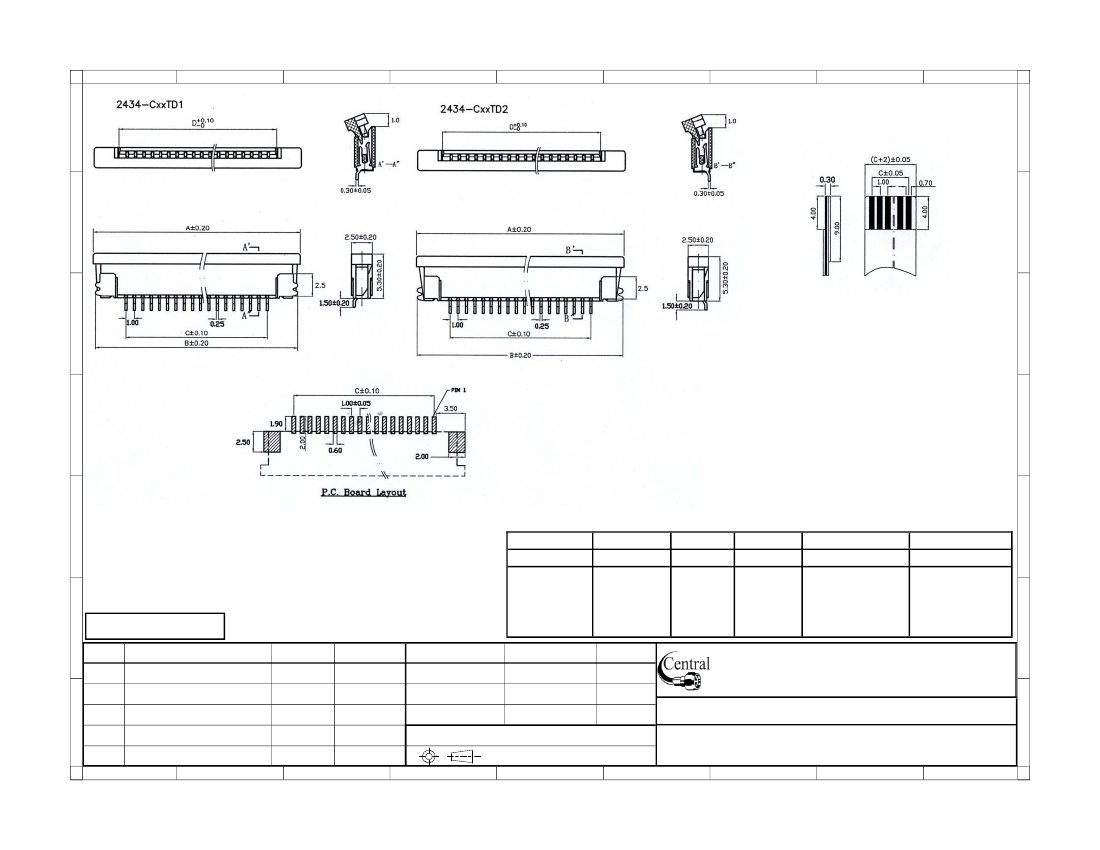

Description: FFC/FPC Connector 1.0mm ZIF Type
