AE83369R22321 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> AE83369R22321

AE83369R22321: DescriptionMIL Series Connector, 32 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug; CategoryThe connector The connector; File Size184KB，1 Pages; ManufacturerAero-Electric Connector; Websitehttps://www.aero-electric.com/index.html; Environmental Compliance

Download Datasheet Parametric View All

AE83369R22321 Overview

MIL Series Connector, 32 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug

AE83369R22321 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Aero-Electric Connector
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-83723 SERIES III, COMPATIBLE CONTACT: M39029/5-115
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	AE833
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	22
Termination type	CRIMP
Total number of contacts	32

Preview

Download Datasheet

View All

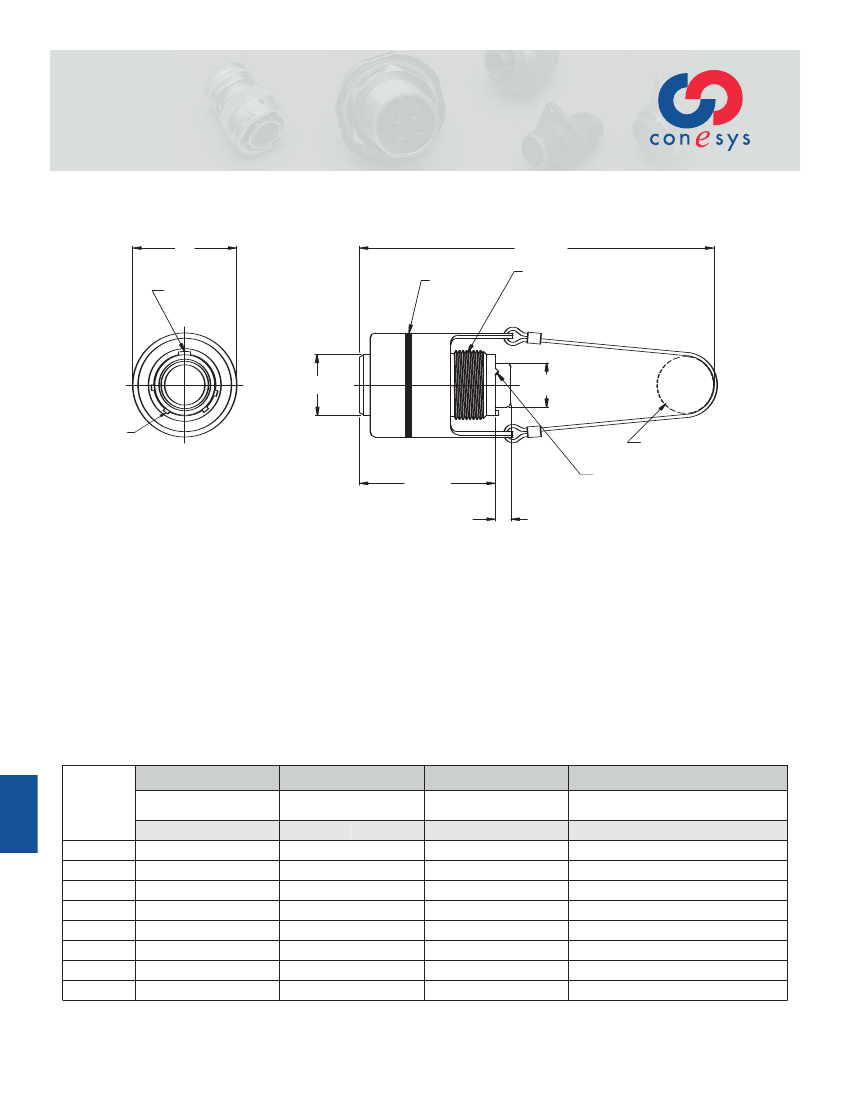

M83723/68, 69

Lanyard Release, Quick-Disconnect Plug

AE83368, 69

Quick-Disconnect, Threaded Coupling, Crimp Removable, Rear Release

MAX

BLUE COLOR BAND

7.500(190.50)

MAX

ACCESSORY THREAD

MASTER

KEY

MAX GROMMET

4 MINOR KEYS

LENGTH TO BE MEASURED WITH A

.750(19.05)±.060(1.52) BAR TO PULL

LANYARD TAUT

3 ACCESSORY TEETH

EQUALLY SPACED

1.180(29.97)

MAX

.190(4.83)

.130(3.30) GROMMET EXTENSION

Page 93

Page 104

Pages 107 108

Page 87

Page 106

Page 102

MIL–DTL–

83723 S III

Completed Part Number

Contacts, Sealing Plugs and Tools

Insert Arrangements

Performance Speciﬁcations

Insert Availability and Contact Information

Polarization

Note 1:

M83723/70 receptacle adapter (page 101) is required

to mate the Quick-Disconnect Plug with a receptacle.

Note 2:

Not available in shell size 8.

Shell

Size

Maximum

inch

1.240

1.432

1.490

1.711

1.815

1.962

2.070

2.195

31.50

36.37

37.85

43.46

46.10

49.83

52.58

55.75

inch

.405

.531

.665

.790

.869

.994

1.119

1.244

Maximum

10.29

13.49

16.89

20.07

22.07

25.25

28.42

31.60

Accessory Thread

Class 2A

inch

5/8-24UNEF

3/4-20UNEF

7/8-20UNEF

1-20UNEF

1-1/16-18UNEF

1-3/16-18UNEF

1-5/16-18UNEF

1-7/16-18UNEF

.526/.517

.696/.687

.765/.756

.892/.883

.998/.989

1.123/1.114

1.248/1.239

1.373/1.364

13.36/13.13

17.68/17.45

19.43/19.20

22.66/22.43

25.35/25.12

28.52/28.30

31.70/31.47

34.87/34.65

www.conesys.com

– 100 –

sales

aero-electric.com
