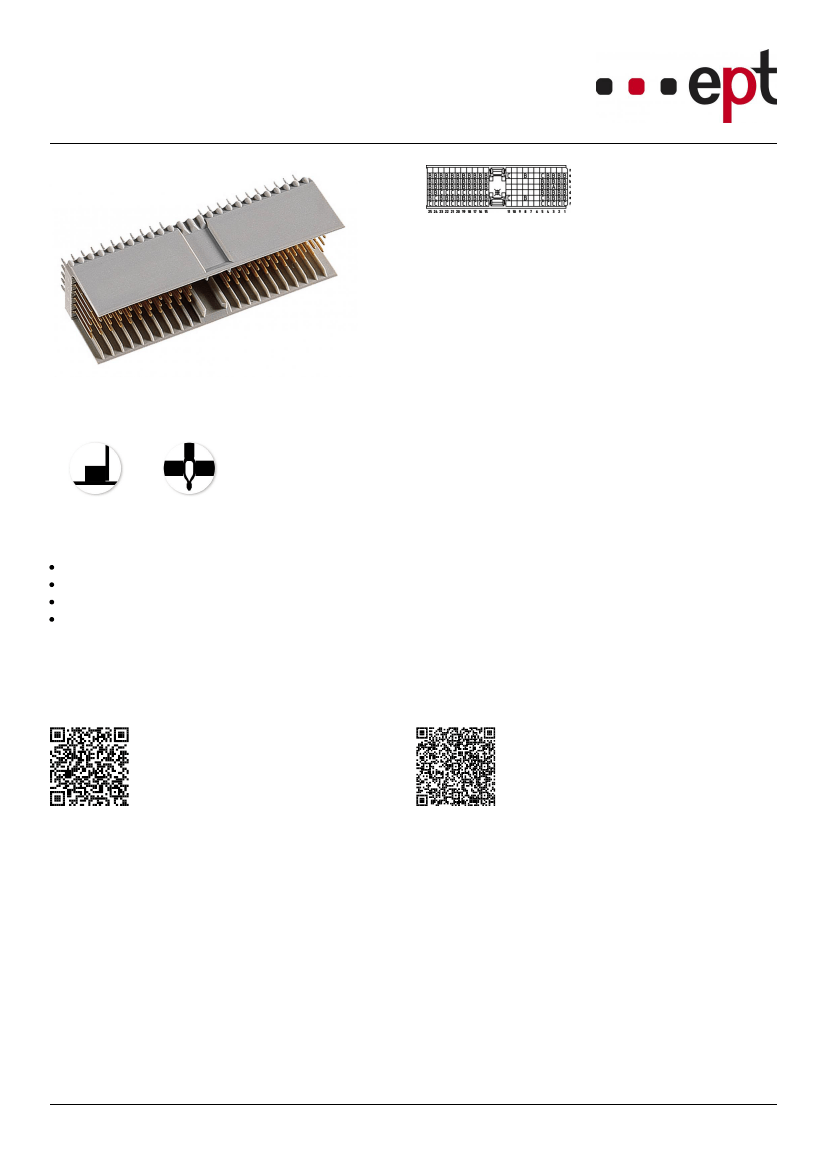

Product Data Sheet
hm2.0 Male connector, type A,
Part No. 243-11323-15
Illustration similar
Perpendicular
Press-fit
100 contacts
termination length 3.7 mm
for PCB > 2.2 mm
tested according to IEC 61076-4-101
» to product on www.ept.de
» to product group hm 2.0
Version from 05.01.2018, 10:31 - subject to change without notice
ept GmbH
| Bergwerkstr. 50 | 86971 Peiting | Tel. +49 (0) 8861 / 25 01 0 | Fax +49 (0) 8861 / 55 07 | sales@ept.de |
www.ept.de
Page 1
Product Data Sheet
hm2.0 Male connector, type A,
Part No. 243-11323-15
Technical Specifications
Basics
Specification
Performance Level
No. of Contacts
Termination Technology
Termination Length
Operating Temperature Range
Material
Insulator Material
Contact Material
Mechanical
Pitch
Mating Force per Pin
Separating Force per Pin
Durability
Electrical
Operational Current
Contact Resistance
Clearance and Creepage
Insulation Resistance
Test Voltage
Data Transfer Rate
Approval / Compliance
UL file
Environment
UL (file: E130314)
RoHS compliant
1.5 A @ +20°C, 1.0 A @ +70°C
max. 20 mΩ
min. 0.8 mm male
min. 10
4
MΩ
750 V r.m.s
3.125 Gbit/s
2.0 mm
Contact: max. 0.75 N, Shielding: max. 1 N
Contact: min. 0.15 N, Shielding: min. 0.15 N
> 250 mating cycles
PBT glass filled, UL 94 V-0
Bronze
IEC 61076-4-101
2
100
Press-fit
3.7 mm
-55°C to +125°C
Version from 05.01.2018, 10:31 - subject to change without notice
ept GmbH
| Bergwerkstr. 50 | 86971 Peiting | Tel. +49 (0) 8861 / 25 01 0 | Fax +49 (0) 8861 / 55 07 | sales@ept.de |
www.ept.de
Page 2
Product Data Sheet
hm2.0 Male connector, type A,
Part No. 243-11323-15

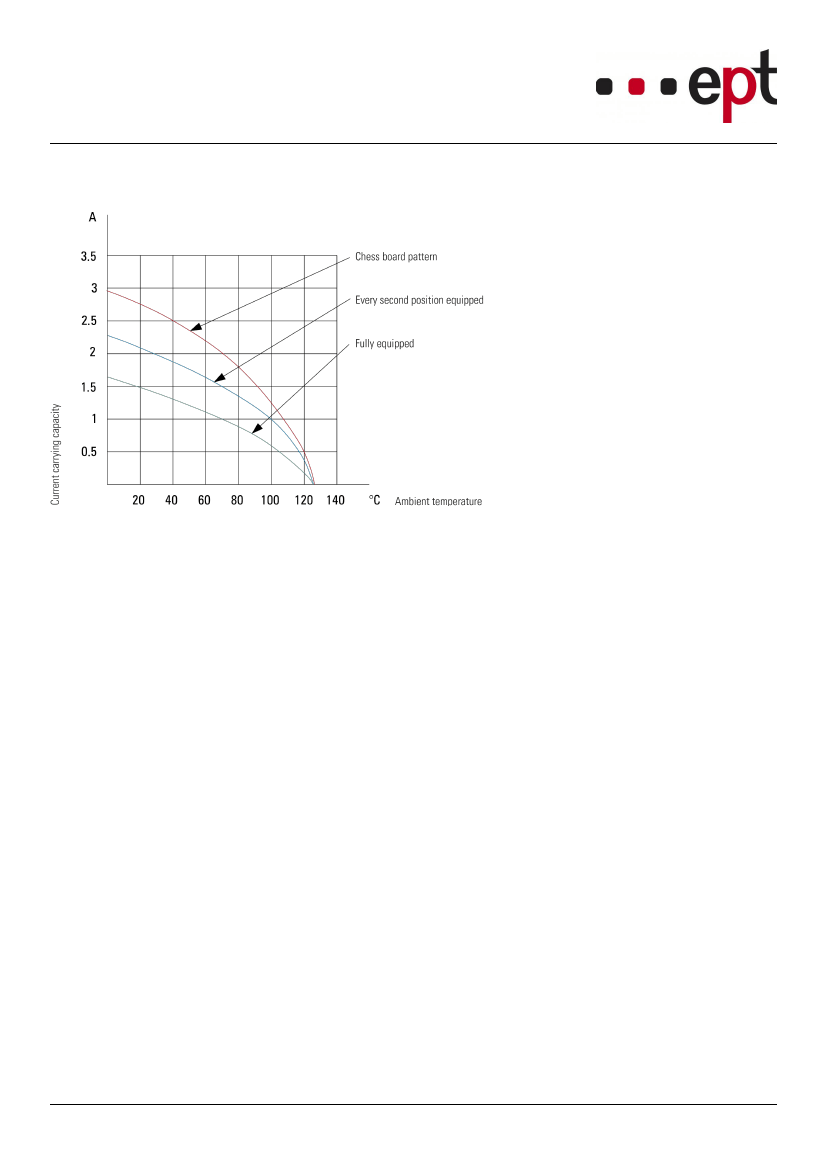

Derating Diagram
Version from 05.01.2018, 10:31 - subject to change without notice
ept GmbH
| Bergwerkstr. 50 | 86971 Peiting | Tel. +49 (0) 8861 / 25 01 0 | Fax +49 (0) 8861 / 55 07 | sales@ept.de |
www.ept.de
Page 3
Product Data Sheet
hm2.0 Male connector, type A,
Part No. 243-11323-15
Hole Specifications
Plated through-hole according to IEC 60352-5
Material
Nominal Hole
A PCB Thickness
B Plated Hole
C Drill Hole
D Cu Plating
E Surface
F Annular Ring
Material
Nominal Hole
A PCB Thickness
B Plated Hole
C Drill Hole
D Cu Plating
E Surface
F Annular Ring
Material
Nominal Hole
A PCB Thickness
B Plated Hole
C Drill Hole
D Cu Plating
E Surface
F Annular Ring
Material
Nominal Hole
A PCB Thickness
B Plated Hole
C Drill Hole
D Cu Plating
E Surface
F Annular Ring
imm. Sn printed circuit boards
Ø 0.6 mm
min 2.2 mm
Ø 0.60 ±0.05 mm
0.70 ±0.02 mm
min. 25 µm
max. 1.5 µm; imm. Sn plating
min. 0.1 mm
Ni, Au printed circuit boards
Ø 0.6 mm
min 2.2 mm
Ø 0.60 ±0.05 mm
0.70 ±0.02 mm
min. 25 µm
Ni, Au plating, 0.05 - 0.2 µm Au over 2.5 - 5
µm Ni
min. 0.1 mm
pure Cu printed circuit boards
Ø 0.6 mm
min 2.2 mm
Ø 0.60 ±0.05 mm
0.70 ±0.02 mm
min. 25 µm
OSP*, z.B. GLICOAT-SMD (F2) with 0.12 -
0.15 µm
min. 0.1 mm
HAL Sn printed circuit boards
Ø 0.6 mm
min 2.2 mm
Ø 0.60 ±0.05 mm
0.70 ±0.02 mm
min. 25 µm
HAL Sn, 5 - 15 µm
min. 0.1 mm
Version from 05.01.2018, 10:31 - subject to change without notice
ept GmbH
| Bergwerkstr. 50 | 86971 Peiting | Tel. +49 (0) 8861 / 25 01 0 | Fax +49 (0) 8861 / 55 07 | sales@ept.de |
www.ept.de
Page 4
Product Data Sheet
hm2.0 Male connector, type A,
Part No. 243-11323-15
Options
for PCB thickness 1.4 - 2.2 the part number is 243-11323-05
Modifications
Available on request
special contact arrangement
other contact surface
Accessories
» hm2.0 Coding key male connector
Part Number 243-8031
» hm2.0 Coding key male connector
Part Number 243-8012
» hm2.0 Coding key male connector
Part Number 243-8014
Drawings
Component data in 2D and 3D format you can download here:
» PDF
Version from 05.01.2018, 10:31 - subject to change without notice
ept GmbH
| Bergwerkstr. 50 | 86971 Peiting | Tel. +49 (0) 8861 / 25 01 0 | Fax +49 (0) 8861 / 55 07 | sales@ept.de |
www.ept.de
Powered by TCPDF (www.tcpdf.org)
Page 5
