2225Y0250224JNR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> 2225Y0250224JNR

Preview

2225Y0250224JNR: DescriptionCeramic Capacitor, Multilayer, Ceramic, 25V, 5% +Tol, 5% -Tol, X8R, -/+15ppm/Cel TC, 0.22uF, 2225,; CategoryPassive components capacitor; File Size70KB，1 Pages; ManufacturerKnowles; Websitehttp://www.knowles.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2225Y0250224JNR Overview

Ceramic Capacitor, Multilayer, Ceramic, 25V, 5% +Tol, 5% -Tol, X8R, -/+15ppm/Cel TC, 0.22uF, 2225,

2225Y0250224JNR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Knowles
package instruction	, 2225
Reach Compliance Code	compliant
capacitance	0.22 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.8 mm
JESD-609 code	e3
length	5.7 mm
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, 13 Inch
positive tolerance	5%
Rated (DC) voltage (URdc)	25 V
series	2225(X8R,25 V)
size code	2225
Temperature characteristic code	X8R
Temperature Coefficient	-/+15ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
width	6.3 mm

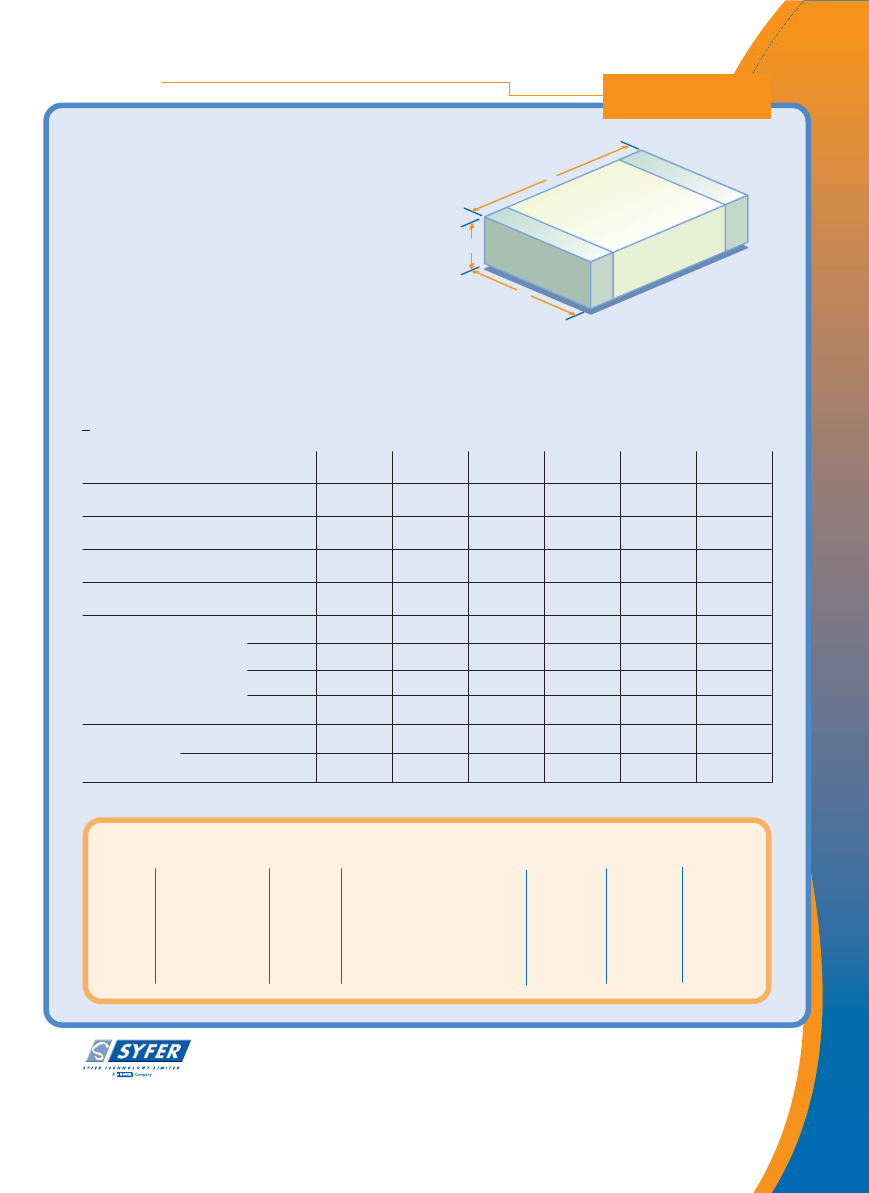

2225Y0250224JNR Preview

Surface Mount

Chip Capacitors

High Temperature Chip

X8R

Description

The X8R dielectric will operate from -55°C to +150°C, with a maximum

capacitance change ±15% (without applied voltage).

The devices are available in sizes 0805 to 2225, with voltage ranges

from 25V to 200V and capacitance values from 1nF to 1.8µF.

The capacitors have been developed by Syfer to meet demand from

various applications in the automotive and industrial markets and in

other electronic equipment exposed to high temperatures. The

increased use of electronics in automotive “under the hood” applications

has created demand for this product range.

The X8R range incorporates a specially formulated termination with a

nickel barrier finish that has been designed to enhance the mechanical

performance of these SMD chip capacitors in harsh environments

typically present in automotive applications.

Capacitance Range

1.0nF to 1.8µF

Temperature Coefficient of Capacitance (TCC)

± 15% from -55°C to +150°C

Dissipation Factor (DF)

< 0.025

L

T

W

Insulation Resistance (IR)

100G

Ω

or 1000secs (whichever is the less).

Dielectric Withstand Voltage (DWV)

2.5 x rated voltage for 5±1 seconds,

50 mAmps charging current maximum.

Ageing Rate

1% per decade (typical)

0805

2.0±0.3

(0.08±0.012)

1.25±0.2

(0.05±0.008)

1.3

(0.051)

1.0nF

1206

1210

1812

4.5±0.35

(0.18±0.014)

2220

5.7±0.4

(0.225±0.016)

2225

5.7±0.4

(0.225±0.016)

6.3±0.4

(0.25±0.016)

1.8

(0.07)

10nF

1.8µF

1.0µF

560nF

330nF

1000

4000

Size mm (inches)

Length (L)

Width (W)

Thickness (H) max

Min. Cap. Value

3.2±0.3

(0.126±0.012) (0.126±0.012)

1.6±0.2

(0.063±0.008)

1.6

(0.063)

2.2nF

180nF

120nF

56nF

33nF

2500

10000

2.5±0.3

(0.1±0.012)

1.8

(0.07)

4.7nF

330nF

220nF

120nF

68nF

2000

8000

3.2±0.3

5.0±0.4

(0.126±0.012) (0.197±0.016)

1.8

(0.07)

6.8nF

680nF

470nF

220nF

120nF

1000

4000

1.8

(0.07)

10nF

1.5µF

680nF

470nF

220nF

1000

4000

25V

Max. Cap. Value

according to the

rated d.c. voltage

56nF

33nF

15nF

10nF

3000

12000

50V

100V

200V

178mm (7” reel)

330mm (13” reel)

Reeled Quantity

Available in E12 values: 10, 12, 15, 18, 22, 27, 33, 39, 47, 56, 68, 82

Ordering Information

1206

Chip Size

0805

1206

1210

1812

2220

2225

Y

Termination

Y = Nickel Barrier

with polymeric

silver termination

100

Voltage dc

025 = 25V

050 = 50V

100 = 100V

200 = 200V

0473

Capacitance

Expressed in picofarads (pF).

First digit is 0.

Second and third digits are significant

figures of capacitance code.

The fourth digit is number of zeros

following.

eg: 0473=47000pF =47nF.

K

Tolerance

J = ±5%

K = ±10%

M = ±20%

N

Dielectric

N = X8R

T

Packaging

T =178mm

(7”) reel

R =330mm

(13”) reel

B =Bulk

SMX8R.ver1

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
