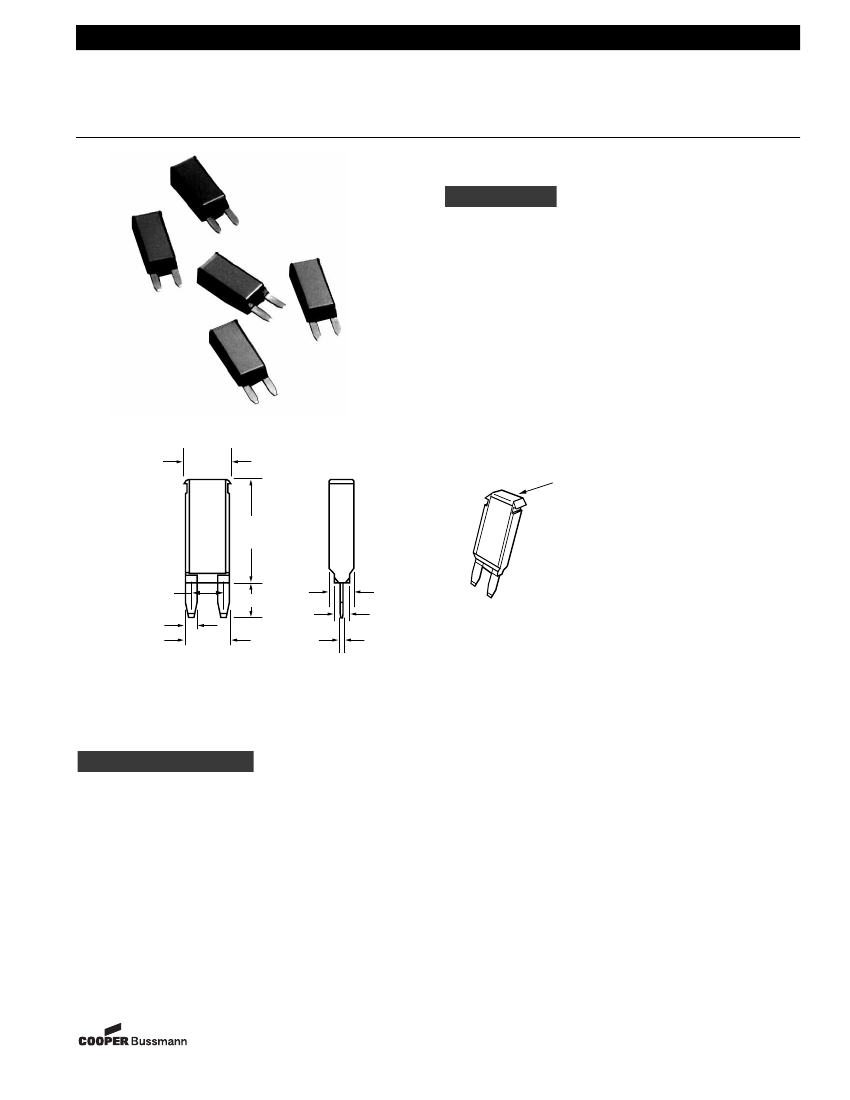

Bussmann
®
MINI Circuit Breakers
Automotive & Modified Reset Circuit Breakers
Series 210
Series 210 Mini
Auto & Modified Reset Circuit Protectors
SPECIFICATIONS
Single Pole Thermal Type Breakers
Ratings:
10A, 15A, 20A, 25A; Voltage of 14VDC.
Operating Temperature:
–40°F (–40°C) to 185°F (85°C).
Storage Temperature:
–40°F (–40°C) to 260°F (125°C).
Cover:
Gray plastic housing with standard gold cover (Type I)
or silver cover (Type II).
Marking:
Standard marking includes amp/volt ratings, part
number, and date code.
Termination Type:
Compatible with 280 Type fuse blocks
using 8.1mm centerline.
Approvals:
Complies with SAE standard J553 Type I and
Type II Circuit Breakers.
.483"
(12.26)
* Color mark located
on top surface
1.06"
(26.92)
.32"
(8.13)
.110"
(2.79)
.440"
(11.18)
.354"(8.99)
.250"(6.35)
.150"(3.81)
.032"(.81)
PART NUMBERING SYSTEM
Series
Rating*
Marking
Special Options
2 1
ttt
211 – Type I, 14VDC
212 – Type II, 14VDC
tt
–
tt
00 – Std. Marking
(Consult Factory for
Special Options)
t
(Consult Factory for
Special Options)
10 – 10 amps (Red)
15 – 15 amps (Blue)
20 – 20 amps (Yellow)
25 – 25 amps (White)
12-16-98
SB98107 Rev. A
Form No. 210 Minii Breakers
Page 1 of 1
BIF Document: 2061
