MID10002FCSAGKWS

Description
Fixed Resistor, Thin Film, 0.2W, 100000ohm, 100V, 1% +/-Tol, Surface Mount, 0505, CHIP, GREEN
CategoryPassive components    The resistor
File Size94KB,3 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

MID10002FCSAGKWS Overview

Fixed Resistor, Thin Film, 0.2W, 100000ohm, 100V, 1% +/-Tol, Surface Mount, 0505, CHIP, GREEN

MID10002FCSAGKWS Parametric

Parameter NameAttribute value
MakerVishay
package instructionCHIP, GREEN
Reach Compliance Codeunknown
Manufacturer's serial numberMID
Installation featuresSURFACE MOUNT
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
method of packingWAFFLE PACK
Rated power dissipation(P)0.2 W
Rated temperature70 °C
resistance100000 Ω
Resistor typeFIXED RESISTOR
size code0505
surface mountYES
technologyTHIN FILM
Terminal shapeONE SURFACE
Tolerance1%
Operating Voltage100 V

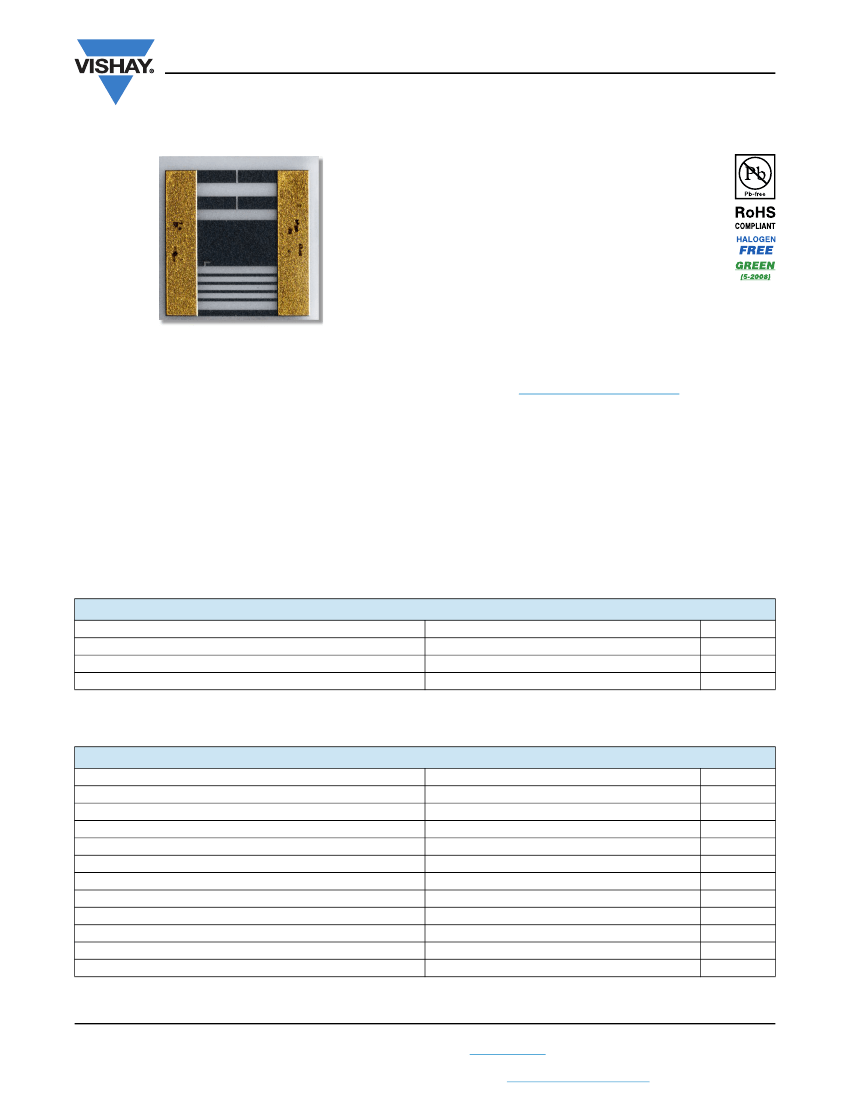

MID10002FCSAGKWS Preview

MID
www.vishay.com
Vishay Electro-Films
Thin Film Microwave Resistor
FEATURES
• Wire bondable
• High frequency
• Chip size: 0.050" x 0.050"
• Microwave resistance range: 18
to 500
• Overall resistance range: 2
to 100 k
• Alumina substrate
• Low stray capacitance: < 0.2 pF
• Power: 200 mW
Product may not be to scale
• Resistor material: Tantalum nitride, self passivating
• Moisture resistant
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
The MID resistor chips on alumina are designed for low
shunt capacitance applications with 200 mW power
requirements.
These chips are manufactured using Vishay Electro-Films
(EFI) sophisticated Thin Film equipment and manufacturing
technology. The MIDs are 100 % electrically tested and
visually inspected to MIL-STD-883, method 2032 class H
or K.
APPLICATIONS
Vishay EFI MIC chip resistors provide excellent
high-frequency response and are ideally suited for
prototyping. Typical application areas are:
• Amplifiers
• Oscillators
• Attenuators
• Couplers
• Filters
TEMPERATURE COEFFICIENT OF RESISTANCE, VALUES, AND TOLERANCES
PARAMETER
Resistance Range
Tolerances
TCR
Note
• Only 18
to 500
are standard strip line designs for microwave applications
VALUE
2 to 100K
1
± 25; ± 50; ± 100; ± 200
UNIT
%
ppm/°C
STANDARD ELECTRICAL SPECIFICATIONS
PARAMETER
Noise, MIL-STD-202, Method 308
Moisture Resistance, MIL-STD-202, Method 106
Stability, 1000 h, + 125 °C, 100 mW
Operating Temperature Range
Thermal Shock, MIL-STD-202, Method 107, Test Condition F
High Temperature Exposure + 150 °C, 1000 h
Dielectric Voltage Breakdown
Insulation Resistance
Operating Voltage
DC Power Rating at + 70 °C (Derated to Zero at 150 °C)
5 x Rated Power Short-Time Overload, + 25 °C, 5 s
VALUE
- 20 typ.
± 0.1 max.
R/R
± 0.2 max.
R/R
- 55 to + 125
± 0.1 max.
R/R
± 0.2 max.
R/R
400
10
12
min.
100 max.
0.200 max.
± 0.1 max.
R/R
UNIT
dB
%
%
°C
%
%
V
V
W
%
Revision: 18-Apr-13
Document Number: 61076
1
For technical questions, contact:
efi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MID
www.vishay.com
DIMENSIONS
in inches
0.050
0.050
0.050
Vishay Electro-Films
0.050
0.050
0.050
0.044
0.016
0.010
0.044
TYPICAL RANGE
2
Ω
to 7.9
Ω
0.044
TYPICAL RANGE
8
Ω
to 17
Ω
0.044
TYPICAL RANGE
18
Ω
to 100 kΩ
SCHEMATIC
MECHANICAL SPECIFICATIONS
PARAMETER
Chip Size
Chip Thickness
Chip Substrate Material
Resistor Material
Bonding Pad Size
Number of Pads
Pad Material
Backing
0.050" x 0.050" ± 0.003" (1.27 mm x 1.27 mm ± 0.076 mm)
0.010" ± 0.002" (0.254 mm ± 0.05 mm)
99.6 % alumina, 2 μ" to 4 μ" finish
Tantalum nitride, self-passivating
0.010" x 0.044" (0.254 mm x 1.11 mm)
2
25 kÅ minimum gold standard
None
GLOBAL PART NUMBER INFORMATION
Global Part Number: MID5000AFCSGGKWS
Global Part Number Description: MID 500 1 %, 50 ppm/°C, standard, Au, Au, K, WS
M
I
D
5
0
0
TOL.
CODE
(%)
F
= 1.0
G
= 2.0
J
= 5.0
K
= 10
M
= 20
0
A
F
C
S
G
G
K
W
S
MODEL
MID
50 x 50
size
microwave
resistor
TaN on
alumina
RESISTANCE
First 4
digits are
significant
figures of
resistance
RESISTANCE
MULTILPLIER
CODE
C
= 0.001
B
= 0.01
A
= 0.1
0
=1
1
= 10
2
= 100
TCR
(ppm/°C)
E
= ± 25
C
= ± 50
K
= ± 100
L
= ± 200
TRIM
STYLE
M
=
Microwave
S
=
Standard
TERMINATION
G
= Au
S
= SnPb
A
= Al
T
=
Lead (Pb)-free
(e1)
BACK
METAL
G
= Au
N
= None
VISUAL
CLASS
H
=
Class H
K
=
Class K
PACKAGING
CODE
WS
=
Waffle pack
100 min,
1 mult
Revision: 18-Apr-13
Document Number: 61076
2
For technical questions, contact:
efi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
