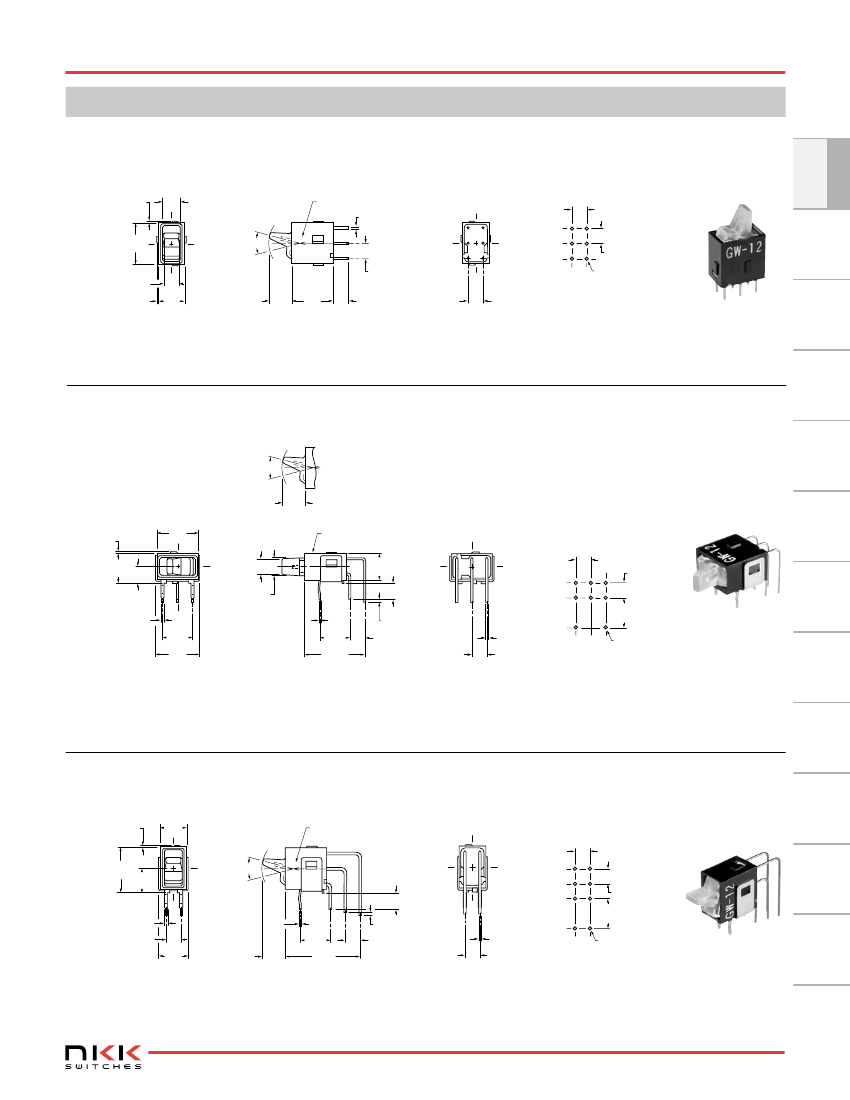

GW12LJPD Overview

ROCKER SWITCH

GW12LJPD Parametric

Parameter NameAttribute value
stateActive
Switch typeROCKER SWITCH
Manufacturer SeriesGW
Series GW
Toggles

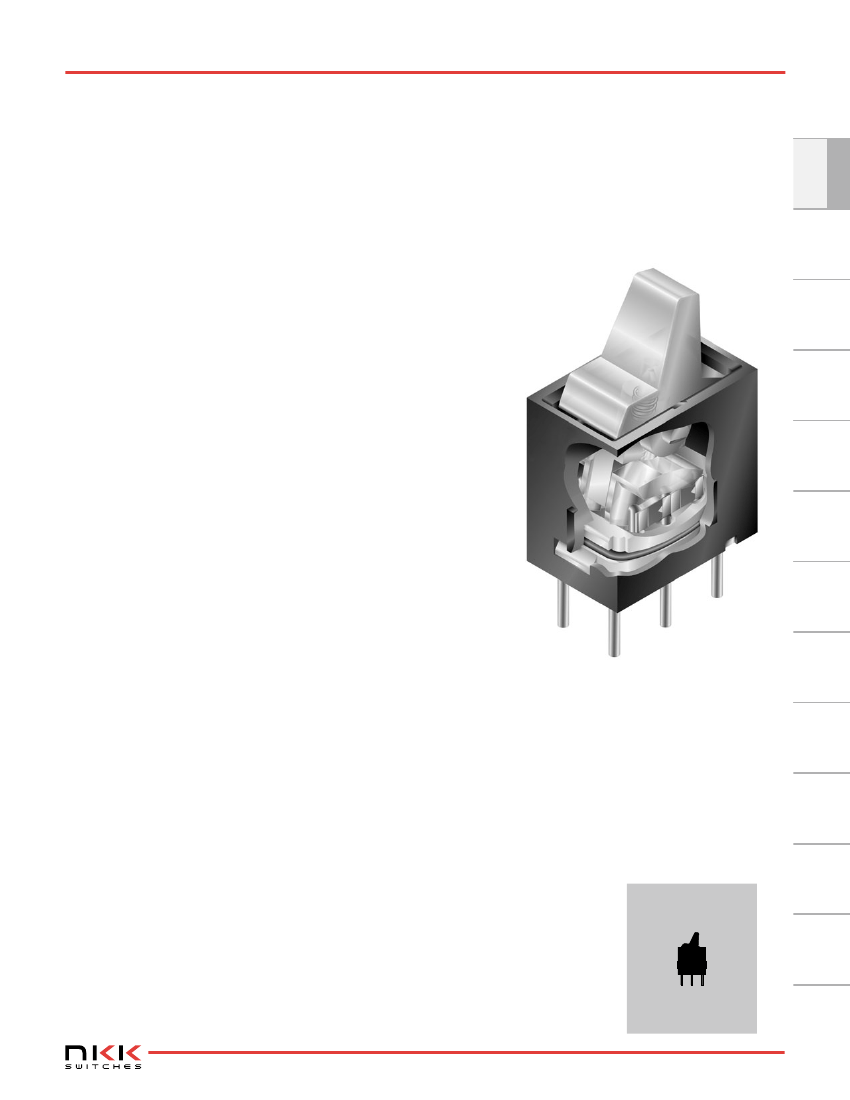

Ultra-Thin Fully Illuminated Paddles
General
Specifications
B
Electrical Capacity (Resistive Load)
Logic Level:
0.4VA maximum @ 28V AC/DC maximum
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
Note: Find additional explanation of operating range in Supplement section.
Pushbuttons
Rockers
Programmable Illuminated PB
Other Ratings
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Nominal Operating Force:
Angle of Throw:
80 milliohms maximum
500 megohms minimum @ 500V DC
500V AC minimum for 1 minute minimum
50,000 operations minimum
50,000 operations minimum
1.0N
28°
Keylocks
Materials & Finishes
Actuator:
Case:
Sealing Ring:
Base:
Movable Contact:
Stationary Contact:
Terminals:
Polycarbonate resin (UL94V-0)
Glass fiber reinforced polyamide (UL94V-0)
Nitrile butadiene rubber
Glass fiber reinforced polyamide
Phosphor bronze with gold plating
Phosphor bronze with gold plating
Phosphor bronze with gold plating
Slides
Rotaries
Environmental Data
Tactiles
Operating Temperature Range:
Humidity:
Vibration:
Shock:
–25°C through +55°C (–13°F through +131°F)
90 ~ 95% humidity for 240 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning in
5 minutes; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 3 right angled directions, with 5 shocks in each direction)
Tilt
PCB Processing
Soldering:
Cleaning:
Wave Soldering recommended. See Profile A in Supplement section.
Manual Soldering: See Profile A in Supplement section.
These devices are not process sealed. Hand clean locally using alcohol based solution.
Touch
Standards & Certifications
Flammability Standard:
UL94V-0 actuator & case
The GW Series illuminated paddles have not been tested for UL recognition or CSA certification.
These switches are designed for use in a low-voltage, low-current, logic-level circuit.
When used as intended in a logic-level circuit, the results do not produce hazardous energy.
Supplement
Accessories
Indicators
B36
www.nkk.com
