XC5R-4BM-100.000MHZ

Description
LVHCMOS Output Clock Oscillator,
CategoryPassive components    oscillator
File Size181KB，4 Pages
ManufacturerXsis Electronics Inc.
Environmental Compliance
Download Datasheet Parametric Compare View All

XC5R-4BM-100.000MHZ Overview

LVHCMOS Output Clock Oscillator,

XC5R-4BM-100.000MHZ Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerXsis Electronics Inc.
Reach Compliance Codecompliant
Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION; TR, 7 INCH
maximum descent time3 ns
Frequency Adjustment - MechanicalNO
frequency stability50%
JESD-609 codee4
Installation featuresSURFACE MOUNT
Nominal operating frequency100 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Oscillator typeLVHCMOS
Output load10 KOHM, 15 pF
physical size7.0mm x 5.0mm x 2.0mm
longest rise time3 ns
Maximum supply voltage1.98 V
Minimum supply voltage1.62 V
Nominal supply voltage1.8 V
surface mountYES
maximum symmetry55/45 %
Terminal surfaceGold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

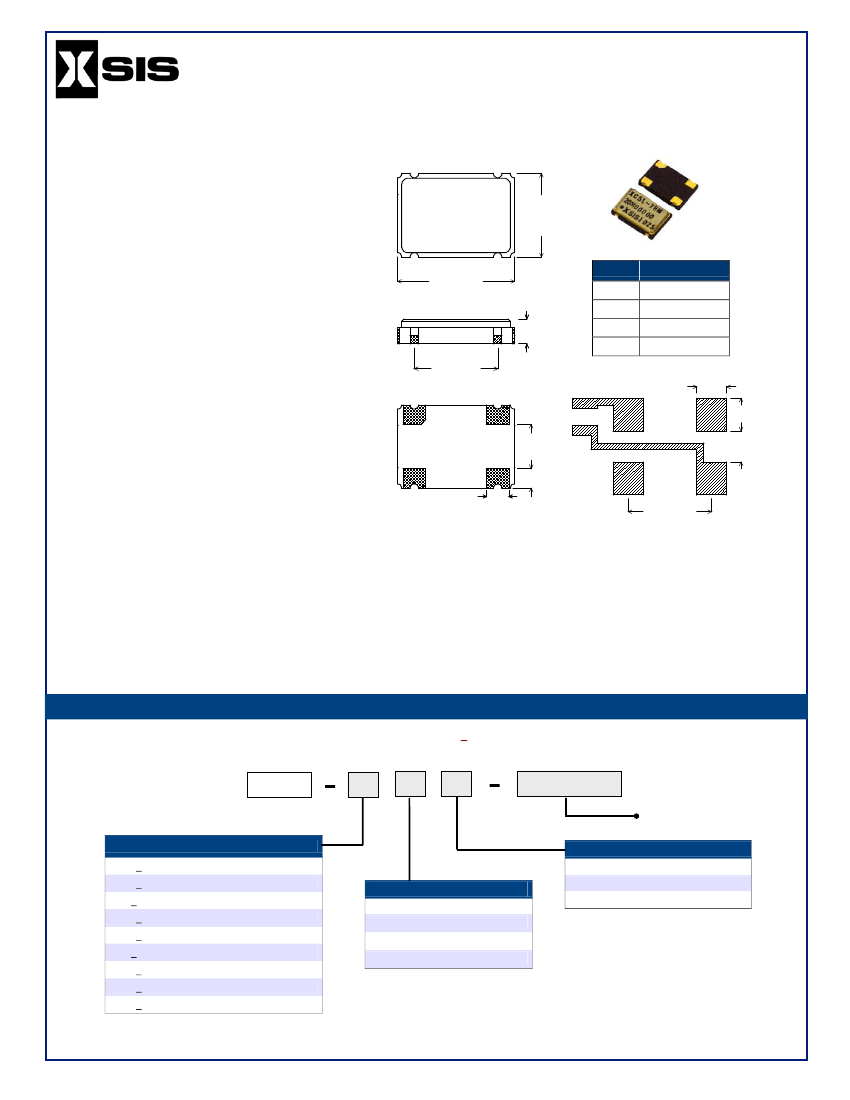

“XC5R” Series, LVHCMOS, 1.8V
High Reliability Hybrid Microcircuit Crystal Oscillators
( 500 KHz to 100 MHz )
Features
•
•
•
•
•
•
•
•
High Shock & Vibration Design
Tristate Output Option
Low Profile Surface Mount, 0.079” Max. Height
100% Screening Options
Low Phase Noise
Hermetically Sealed, Ceramic Package
Tape & Reel packaging
ECCN: EAR99
4
3
Marking
•
1
.275 + .008
–
(7.0 + .20)
–
2
.197 + .008
–
(5.0 + .15)
–
LEAD#
1
2
.079 Max.
(2.0)
3
4
FUNCTION
E/D (Optional)
GND/CASE
OUTPUT
VDD
.071
(1.8)
Applications
•
•
•
•
•
High Shock & Vibration Applications
Navigation Systems
Aerospace Instrumentation
Digital Signal Processing
Gun Launched Munitions
.200 + .005
–
(5.08 + .13)
–
1
2
.103
(2.62)
Bypass
Cap.
.079
(2.0)
.071
(1.8)
Package Specifications & Outline:
•
•
•
•
•
•
•
4
3
.055
(1.4)
.047
(1.2)
Typical
PCB
Layout
.200 + .005
–
(5.0 + .13)
–
Package: Ceramic 90% AL
2
O
3,
Seal: Hermetic – Resistance Welded
Weight: 0.15 Gms Typical, 0.2 Gms Max.
o
Thermal Resistance, Junction to Case ( θ
JC
): 38 C / Watt
o
Solder Reflow, Temp./Time: 260 C Max for 10 Seconds Max.
Pad Finish: 0.3 to 1.0 μm gold over 1.27 to 8.9 μm nickel
Dimensions: Inches (mm).
An External 0.01uF Bypass Capacitor
is required between VDD and GND.
E/D ( Enable/Disable ) Input:
A “Low”
level at the input disables the Output
into a high impedance state.
E/D
Input has internal pull-up. It can
be left floating or connected to Vdd.
Hot Solder Tinning per MIL-PRF-55310 is optional at additional cost.
Contact Xsis Electronics
at xsis@xsis.com for any special requirements.
ORDERING INFORMATION
( Please build your part number from options below ) :
P/N EXAMPLE: XC5R– 7BM - 24.000 MHz =
1.8 V HCACMOS, + 75 PPM Overall Frequency Accuracy over -55
o
C to +125
o
C,
55/45% Symmetry, Tristate Output , 100% Screening, 24.000 MHz
XC5R
Model #
7
B
M
24.000 MHz
Output Frequency
* Overall Frequency Accuracy Options
1
= + 50 PPM over -10 C to +70 C
2
= + 25 PPM over -10 C to +70 C
3
= + 100 PPM over -40
o
C to +85
o
C
4
= + 50 PPM over -40
o
C to +85
o
C
5
= + 25 PPM over -40
o
C to +85
o
C
6
= + 100 PPM over -55
o
C to +125
o
C
7
= + 75 PPM over -55
o
C to +125
o
C
8
= + 20 PPM over -40
o
C to +85
o
C
9
= + 50 PPM over -55
o
C to +105
o
C
o
o
o
o
100% Screening Options
Symmetry & Tristate Options
A
= 60/40% & Tristate
B
= 55/45% & Tristate
D
= 60/40% & No Tristate
E
= 55/45% & No Tristate
X
= No Screening
M
= 100% Screening
MP
= Enhanced Reliability Screening
* Overall Frequency Accuracy includes initial Accuracy
& Frequency changes due to Temperature, Aging,
Suppy Voltage & Load variations.
Rev 09 /15
Page 1 of 4
Xsis Electronics, Inc.,
12620 W. 63rd St., Shawnee, KS 66216 Tel. 913-631-0448 Fax. 913-631-1170, www.xsis.com, email xsis@xsis.com
