HB16SKW01-5D-CB datasheet, PDF

Datasheet> All Categories > unclassified> HB16SKW01-5D-CB

HB16SKW01-5D-CB: DescriptionPUSHBUTTON SWITCH; Categoryunclassified; File Size240KB，6 Pages; ManufacturerETC2

Download Datasheet Parametric View All

HB16SKW01-5D-CB Overview

PUSHBUTTON SWITCH

HB16SKW01-5D-CB Parametric

Parameter Name	Attribute value
state	Active
Switch type	PUSHBUTTON SWITCH
Manufacturer Series	HB

Preview

Download Datasheet

View All

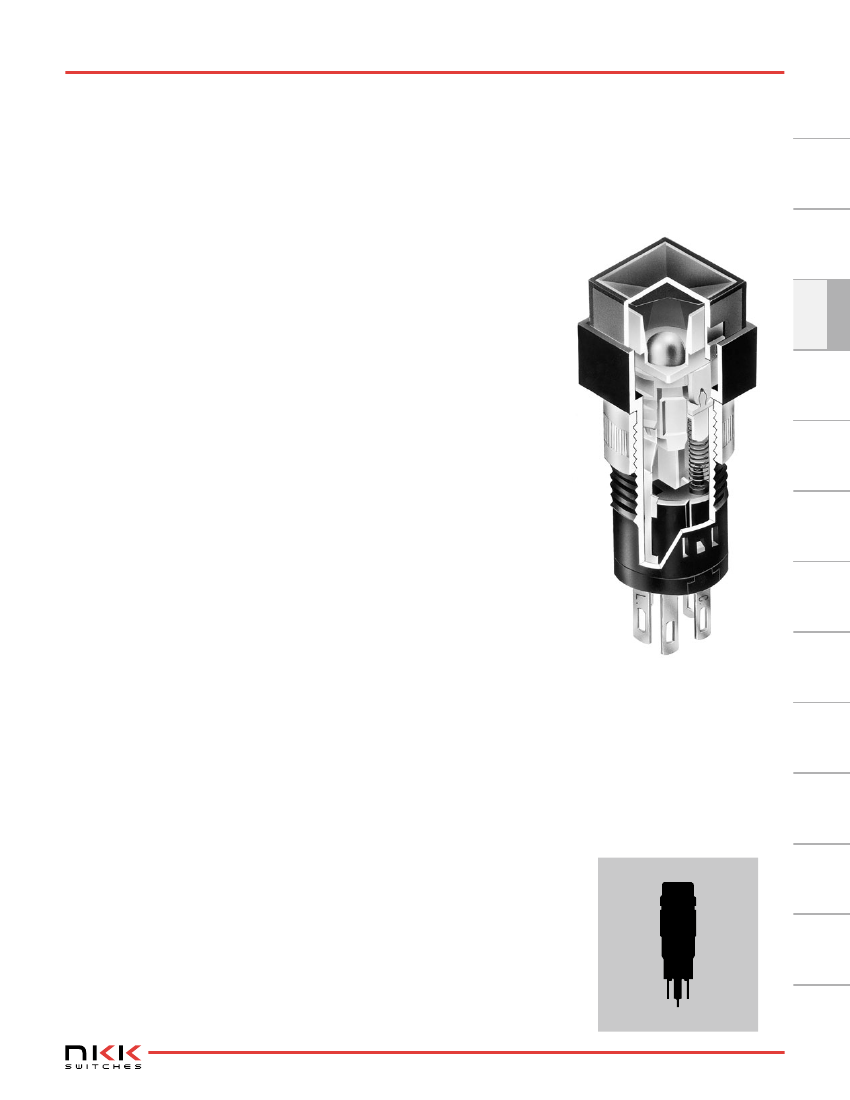

Series HB

Toggles

Subminiature Pushbuttons

Rockers

General

Specifications

Electrical Capacity (Resistive Load)

Power Level (silver):

0.1A maximum @ 30V AC/DC

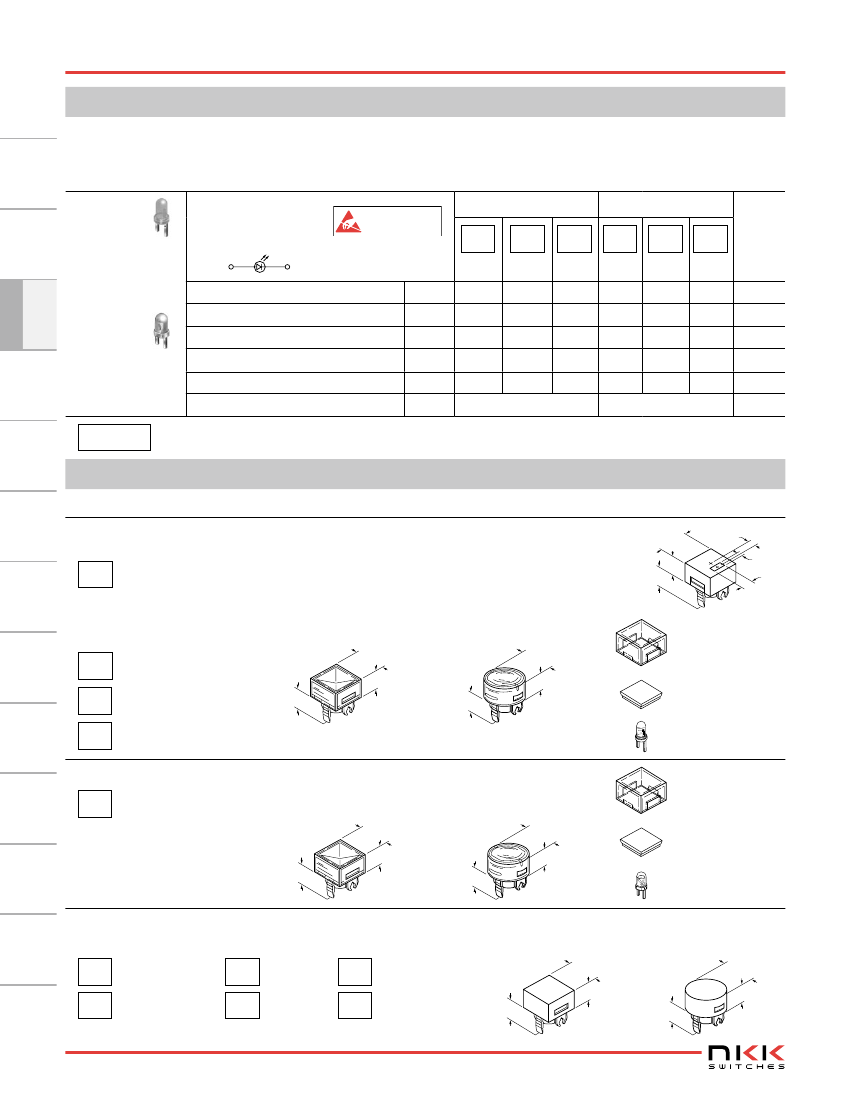

Pushbuttons

Other Ratings

Programmable

Illuminated PB

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Mechanical Life:

Electrical Life:

Nominal Operating Force:

Contact Timing:

Travel:

50 milliohms maximum

100 megohms minimum @ 500V DC

500V AC minimum for 1 minute minimum

100,000 operations minimum

50,000 operations minimum

3.43N

Nonshorting (break before make)

Pretravel .087” (2.2mm); Overtravel .031” (0.8mm); Total Travel .118” (3.0mm)

Materials & Finishes

Rotaries

Housing:

Base:

Movable Contact:

Stationary Contacts:

Common Terminal:

End Terminals:

Lamp Terminals:

Glass fiber reinforced polyamide

Phosphor bronze with silver plating

Keylocks

Slides

Environmental Data

Operating Temperature Range:

Humidity:

Vibration:

Shock:

Tactiles

–25°C through +50°C (–13°F through +122°F) for Illuminated

–25°C through +70°C (–13°F through +158°F) for Nonilluminated

90 ~ 95% humidity for 96 hours @ 40°C (104°F)

10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning

in 1 minute; 3 right angled directions for 2 hours

50G (490m/s

) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)

Installation

Tilt

Mounting Torque:

Cap Installation Force:

Soldering Time & Temperature:

0.49Nm (4.34 lb

•

in) maximum for round mounting nut

9.8N (2.2 lbf) maximum downward force on cap

Manual Soldering: See Profile A in Supplement section.

Touch

Standards & Certifications

UL:

Supplement

Accessories

Indicators

File No. E44145 - Recognized only when ordered with marking on switch.

Add “/U” or “/CUL” before first dash in part number to order UL recognized switch.

All models recognized at 0.1A @ 30V AC/DC.

D12

www.nkk.com
