2317RJ-11 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2317RJ-11

2317RJ-11: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking,; CategoryThe connector The connector; File Size106KB，1 Pages; ManufacturerNeltron Industrial Company Ltd; Environmental Compliance

Download Datasheet Parametric View All

2317RJ-11 Overview

Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking,

2317RJ-11 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Neltron Industrial Company Ltd
Reach Compliance Code	unknown
body width	0.226 inch
subject depth	0.453 inch
body length	1.181 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
insulator material	NYLON66
Plug contact pitch	0.098 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	CSA;TUV;UL
Terminal length	0.1334 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	11
UL Flammability Code	94V-0

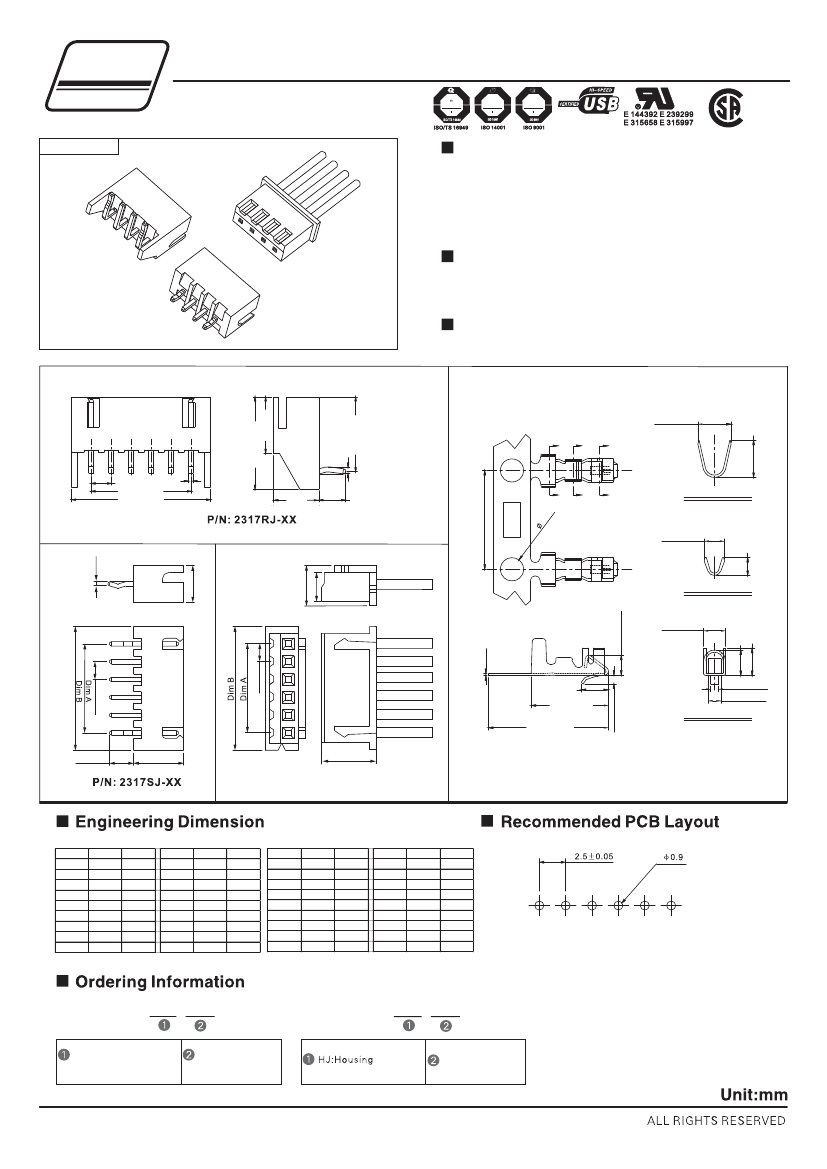

2317RJ-11 Preview

Neltron

Connectors

RoHS Compliant

2317SJ(RJ) & 2318HJ Series

2.5mm Wire to Board

Connectors

TUV

SUD

TUV

SUD

TUV

SUD

Specifications

Current rating:3.0A AC/DC

Voltage rating:250V AC/DC

Contact resistance:20m ohm. max.

Insulation resistance:1000M ohm. Min.

Withstanding voltage:1000V AC for one minute

Operating temperature range:-40

℃

to +85

℃

Application: Wire Awg 22 to 30

J-

Material and Finish

A. Housing Insulator: Nylon 66(UL94V-0)

B. Crimp Terminal: Phosphor Bronze Tin Plated

C. Wafer Insulator: Nylon 66(UL94V-0)

Contact: Brass Tin Plated

-X

Connection

2318HJ-XX Mates With:2317SJ(RJ)-XX

11.50 ± 0.35

7.0 ± 0.3

0.85 ± 0.1

9.30 ± 0.3

2.85 ± 0.25

8.5

2.50 ± 0.1 0.63

Dim.A ± 0.2

Dim.B ± 0.3

5.75

3.4 ± 0.3

Section:A-A

1.55± 0. 25

0.65 ± 0.10

1.10 ± 0.10

1.75 ± 0.25

0.64

5.7 ± 0.2

4.10

Section:B-B

1.70 ± 0.15

2.20± 0. 10

2.35± 0. 10

1.90 ± 0.15

2.5 ± 0.1

0.20

6.65 ± 0.25

10.33 ± 0.25

0.75 ± 0.10

2.35 ± 0.15

Section:C-C

3.4 ± 0.1

7±0.2

7.7±0.2

P/N:2318HJ

P/N:2318TJ

P/N:2317SJ(RJ)-XX

Circuits Dim. A Dim. B

2.50

7.50

5.00

10.00

7.50

12.50

10.00

15.00

12.50

17.50

15.00

20.00

17.50

22.50

20.00

25.00

22.50

27.50

Circuits Dim. A

27.50

30.00

32.50

35.00

37.50

40.00

42.50

45.00

47.50

Dim. B

32.50

35.00

37.50

40.00

42.50

45.00

47.50

50.00

52.50

P/N:2318HJ-XX

Circuits Dim. A

2.50

5.00

7.50

10.00

12.50

15.00

17.50

20.00

22.50

Dim. B

7.40

9.90

12.40

14.90

17.40

19.90

22.40

24.90

27.40

Circuits Dim. A

27.50

30.00

32.50

35.00

37.50

40.00

42.50

45.00

47.50

Dim. B

32.40

34.90

37.40

39.90

42.40

44.90

47.40

49.90

52.40

P/N:2317SJ(RJ)-XX

2317 SJ - XX

SJ:Straight Type

RJ:Right Angle Type

No. Of Contacts

2318HJ - XX

No. Of Contacts

2017-2026

3.20± 0. 25

5.75

2.5 ± 0.1

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
