2317-3641: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size183KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

2317-3641 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking

2317-3641 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.437 inch
subject depth	0.457 inch
body length	3.74 inch
Connector type	BOARD EURO CONNECTOR
Contact point gender	MALE
Contact style	SQ PIN-SKT
DIN compliance	YES
Manufacturer's serial number	2317
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	8u inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal length	0.157 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64

Preview

Download Datasheet

View All

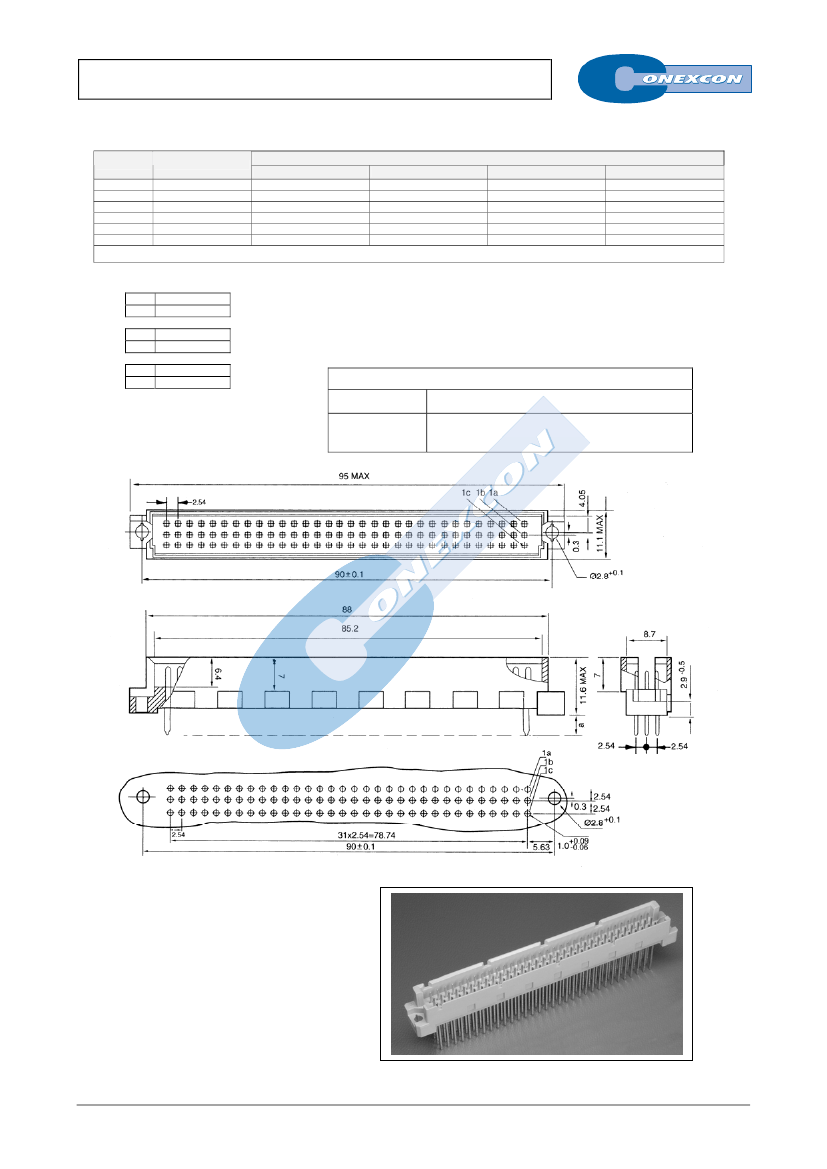

DIN 41612 EUROCARD CONNECTOR

2317 SERIES.

Vertical Male Type R Connectors.

Circuit Size

32

48

64

96

Configuration

a

a+c

a + b +c

a+b

a+c

a + b +c

CÓDIGOS

PCB Solder 4 mm

2317 –

T021

2317 –

T321

2317 –

T481

2317 –

T041

2317 –

T641

2317 –

T961

Wrap post tail length 13 mm Wrap post tail length 17 mm

2317 –

T023

2317 –

T027

2317 –

T323

2317 –

T327

2317 –

T483

2317 –

T487

2317 –

T043

2317 –

T047

2317 –

T643

2317 –

T647

2317 –

T963

2317 –

T967

-

2317 –

T028

2317 –

T328

2317 –

T488

2317 –

T048

2317 –

T648

2317 –

T968

Available with press-in contacts (Consult with the Sales Office)

T = Plating and class connector

a

4

a

13

a

17

0.3 x 0.63

PCB Solder

0.6 x 0.69

Wrap post

0.6 x 0.69

Wrap post



T =

3.

0.20 µ” over 1.27 µ” Ni. 200 cycles class 2B

T =

4.

0.38 µ” over 1.27 µ” Ni. 400 cycles class 2

T =

5.

0.76 µ” over 1.27 µ” Ni. 500 cycles class 1

Options

2317 – 0000

2317 – 3644

TRANSFER. (Connector Body without pins)

Straight male type C for PCB a+c 62 Circuits

Advanced pins 1a, 1c, 32a and 32c.

FULL LINE CATALOGUE

Q-XX
