8392-3-19-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8392-3-19-1

8392-3-19-1: DescriptionBoard Connector, 19 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator; CategoryThe connector The connector; File Size69KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8392-3-19-1 Overview

Board Connector, 19 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator

8392-3-19-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.1 inch
subject depth	0.161 inch
body length	1.916 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8392
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	19

Preview

Download Datasheet

View All

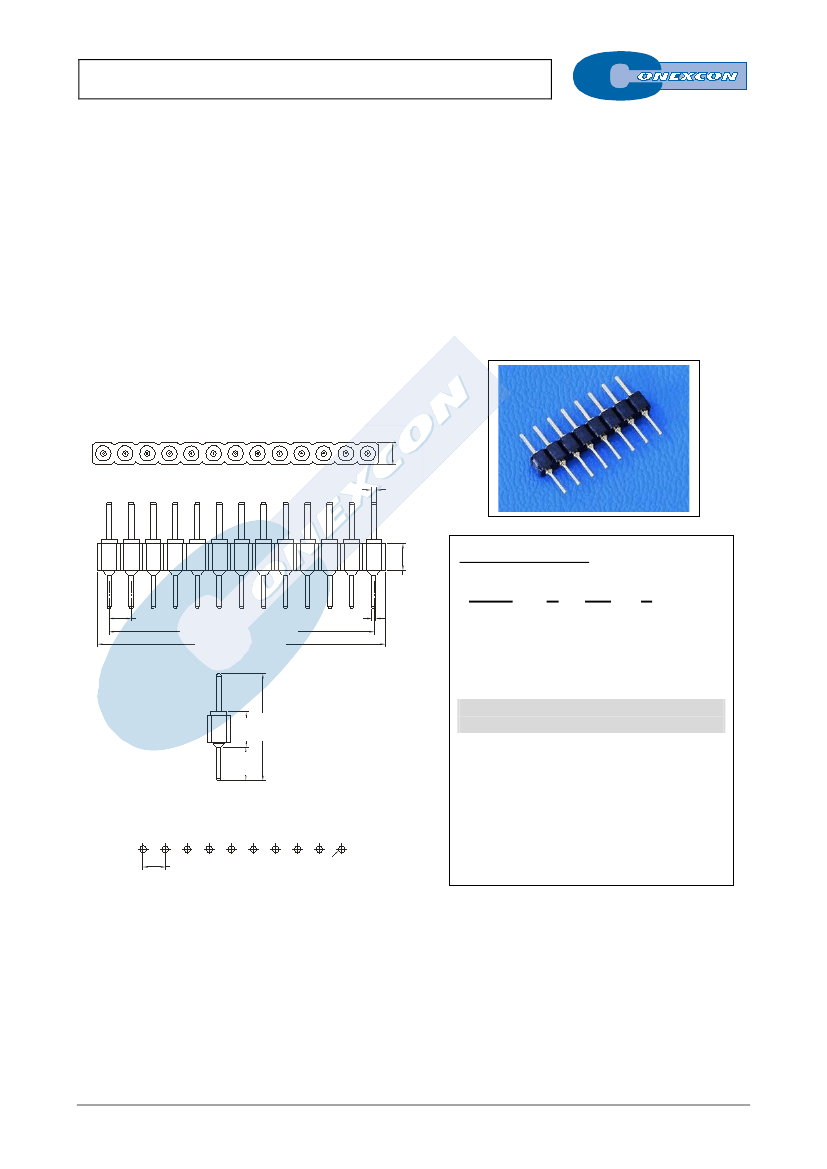

SINGLE ROW VERTICAL PIN HEADER

8392 SERIES.

2.54 mm. (0.100”) pitch. Machined contact.

General Features

Electrical Features



Available in 2 through 40 circuits



0.64 round pin in contact area



With different plating options



Voltage rating: < 250V

Current rating: < 3 A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: PPS black + 30% GF UL 94 V-0

Contact: Brass

Operating temperature. -40ºC to +105ºC

RoHS compliant



Pin retention force to insulator: > 0.80 Kgf



Durability: 500 Cycles

Dimension Information

ø0.64

2.54±0.15

Ordering Information:

3.00±0.15

8392 -

T-

XX-

2.54±0.10

2.54 x Nº Cont.-2.54±0.20

2.54 x Nº Pos ±0.40

ø0.50

1. Connector Series

2. (T) Contact Plating

12.20



T =

gold flash over 30-50µ" Ni overall

Recommended Finish

4.10



T =

15.

15µ" selec. gold over 30-50µ" Ni

overall

3.80



T =

16.

30µ" selec. gold over 30-50µ" Ni

3. (XX) Number of circuits

MECANIZADO RECOMENDADO

(Tolerancia ±0.05)



Available in 2 through 40 circuits

.80

ø0

2.54

Dimensions:

(In mm.)

= 2.54 x (XX*-1)

= 2.54 x (XX*)+0.41

* XX

(Number of circuits)

A-XX

FULL LINE CATALOGUE

Recommended Resources

High output voltage amplifier circuit

Motor accurate positioning control circuit

MC145026 (general) infrared, ultrasonic or radio frequency remote control transmission encoding circuit

Zero point detection circuit diagram

pulse height modulator

Telephone time lock circuit diagram

How to use DXP to measure the distance in PCB Gerber files: How to use DXP to measure the distance between two electrical boundary lines when only the panelized PCB Gerber Files are available? See the attached picture for detailed operation steps. Thanks~...; dirty PCB Design

【Design Tools】Video Demonstration of Xilinx's Latest Software Design Tool PlanAhead (Chinese): Found it online, it seems pretty good.Faster, more efficient design solutions can help you achieve your performance goals. PlanAhead provides an RTL to bitstream design flow with a new and improved us...; ddllxxrr FPGA/CPLD

RAS dial-up Internet access problem under wince: [HKEY_LOCAL_MACHINE\ExtModems\XXX] "FriendlyName"="XXX(COMX)" "DeviceType"=dword:00000001 "Port"="COMX:" The first configuration is as follows [code] "1"="AT""2"="ATE0V1" [HKEY_LOCAL_MACHINE\ExtModems...; zheng_qs Embedded System

Re-understanding Hall Sensor: Reprinted from: deyisupport [align=left][color=#000]Today's position sensing technology is not only very reliable, low cost, but also easy to implement. What does it take? A 3-pin device and a small p...; maylove Analogue and Mixed Signal

New intelligent power supply VIPer12A: 1 Introduction At present, the number of portable devices such as mobile phones, laptops, wireless drills, digital cameras, MP3 players, etc. is increasing day by day, and there are many kinds of them...; pere Power technology

Share the summary of MSP430F5529 clock module: I started to learn a new CPU of MSP430 series, F5529. According to the method of learning 430 before, I began to understand its clock part. I learned it by referring to TI official routines. There was...; fish001 Microcontroller MCU
