Printview: eCOM pluggable PCB connector with straight solder pins; without gripping plate; 4-pole; Pin
spacing 7.5 mm / 0.295 in - Item No.: 2092-3174/200-000
.
eCOM pluggable PCB connector with straight solder pins; without
gripping plate; 4-pole; Pin spacing 7.5 mm / 0.295 in
Item No.: 2092-3174/200-000
.
eCOM pluggable PCB connector with straight solder pins; without gripping plate; 4-pole; Pin spacing 7.5 mm / 0.295
in
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
2092-3174/200-000
4050821396376
1
100
Item description:Universal connection for all conductor typesSimple, push-in termination of solid and ferruled
conductorsEasy-to-use design does not require specialty toolsAbility to wire while mated or unmatedIntegrated test
ports for testing parallel to conductor entryFactory-installed, straight or angled solder pins allow horizontal or vertical
mounting to the PCB
Technical data
Miscellaneous
No. of poles
Pin spacing
4
7.5 mm (0.295 in)
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: eCOM pluggable PCB connector with straight solder pins; without gripping plate; 4-pole; Pin
spacing 7.5 mm / 0.295 in - Item No.: 2092-3174/200-000
Technical data
Total number of connection points
Total number of potentials
Color
Ratings per
Rated voltage (III / 3) [V]
Rated impulse voltage (III / 3) [kV]
Pollution degree (1)
Rated voltage (III/2) [V]
Rated impulse voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated impulse voltage (II / 2) [kV]
Rated current [A]
Legend for ratings
Number of connection objects
Number of levels
Pull-in time
Connection technology
Number of connection points connector
Actuation type
Solid conductor
Fine-stranded conductor
Fine-stranded conductor with ferrule with plastic collar
4
4
light gray
IEC/EN 60664-1
400 [V]
6 [kV]
2
320 [V]
4 [kV]
630 [V]
4 [kV]
16 [A]
(III / 2 ) Overvoltage category III /
1
1
0.0
Push-in CAGE CLAMP®
1
Operating lever
0.2 … 2.5 mm² / 24 … 12 AWG
0.2 … 2.5 mm² / 24 … 12 AWG
0.25 … 1.5 mm² / …
Fine-stranded conductor with ferrule without plastic collar 0.25 … 2.5 mm² / …
Strip length
Conductor entry angle to the PCB [°]
Solder pin length [mm]
Solder pin diameter [mm]
Drilled hole diameter (tolerance) [mm]
Material group
Insulating material
Flammability class per UL94
Limit temperature range
Clamping spring material
Contact material
9 … 10 mm / 0.35 … 0.39 Inch
90 [°]
2.4 [mm]
1.4 [mm]
1.6(+ 0.1) [mm]
I
Polyphthalamide (PPA GF)
V0
-60 … 100 °C
Chrome-nickel spring steel (CrNi)
Electrolytic copper (Ecu)
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: eCOM pluggable PCB connector with straight solder pins; without gripping plate; 4-pole; Pin
spacing 7.5 mm / 0.295 in - Item No.: 2092-3174/200-000
Technical data
Contact plating
Fire load [MJ]
Weight [g]
Width
Height
Depth
tin-plated
0.009 [MJ]
5.573 [g]
27.5 mm / 1.083 Inch
16.2 mm / 0.638 Inch
13.4 mm / 0.528 Inch
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: eCOM pluggable PCB connector with straight solder pins; without gripping plate; 4-pole; Pin
spacing 7.5 mm / 0.295 in - Item No.: 2092-3174/200-000

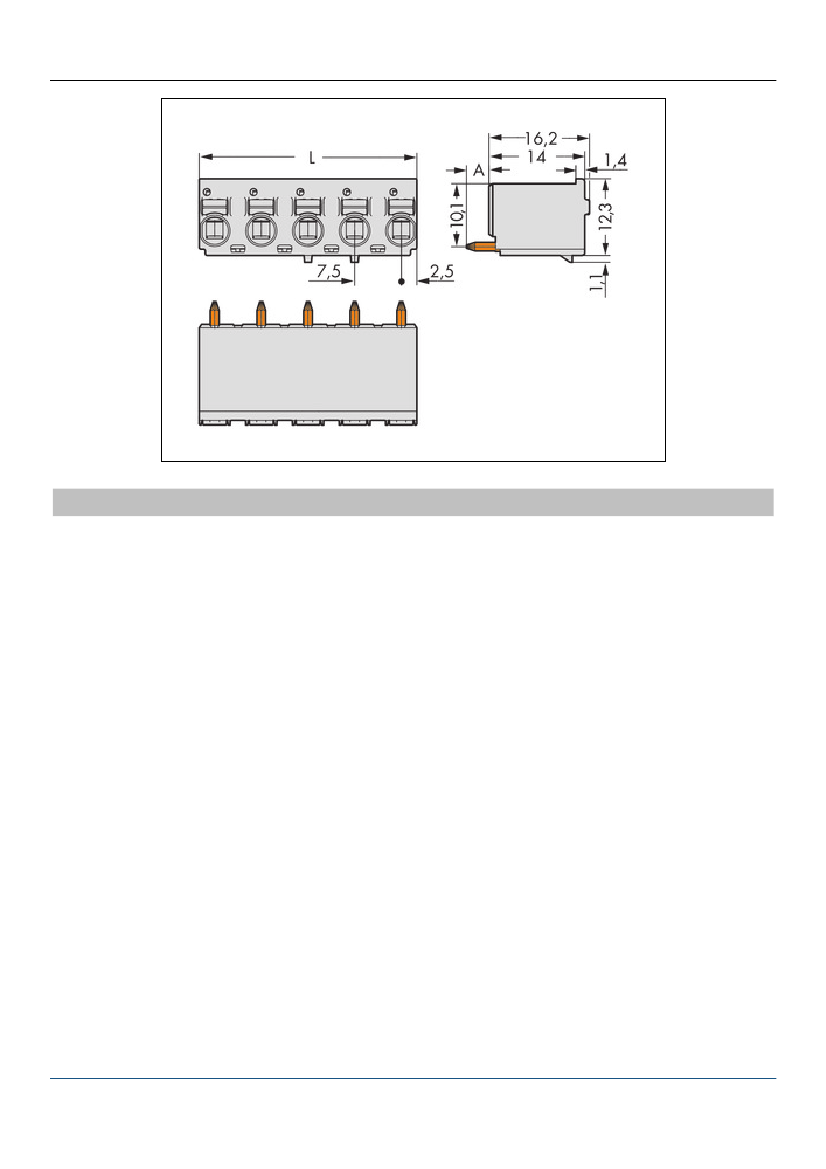

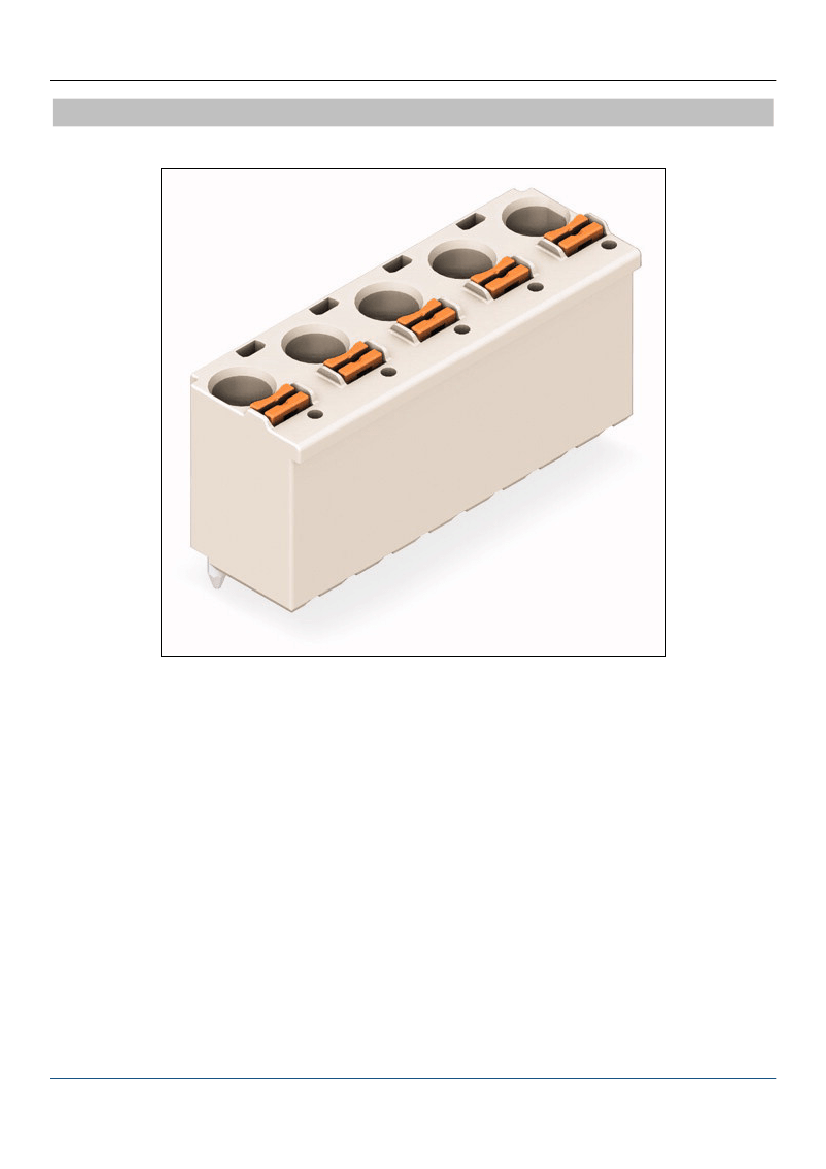

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
4
Printview: eCOM pluggable PCB connector with straight solder pins; without gripping plate; 4-pole; Pin
spacing 7.5 mm / 0.295 in - Item No.: 2092-3174/200-000
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
WAGO Kontakttechnik GmbH & Co. KG
5
