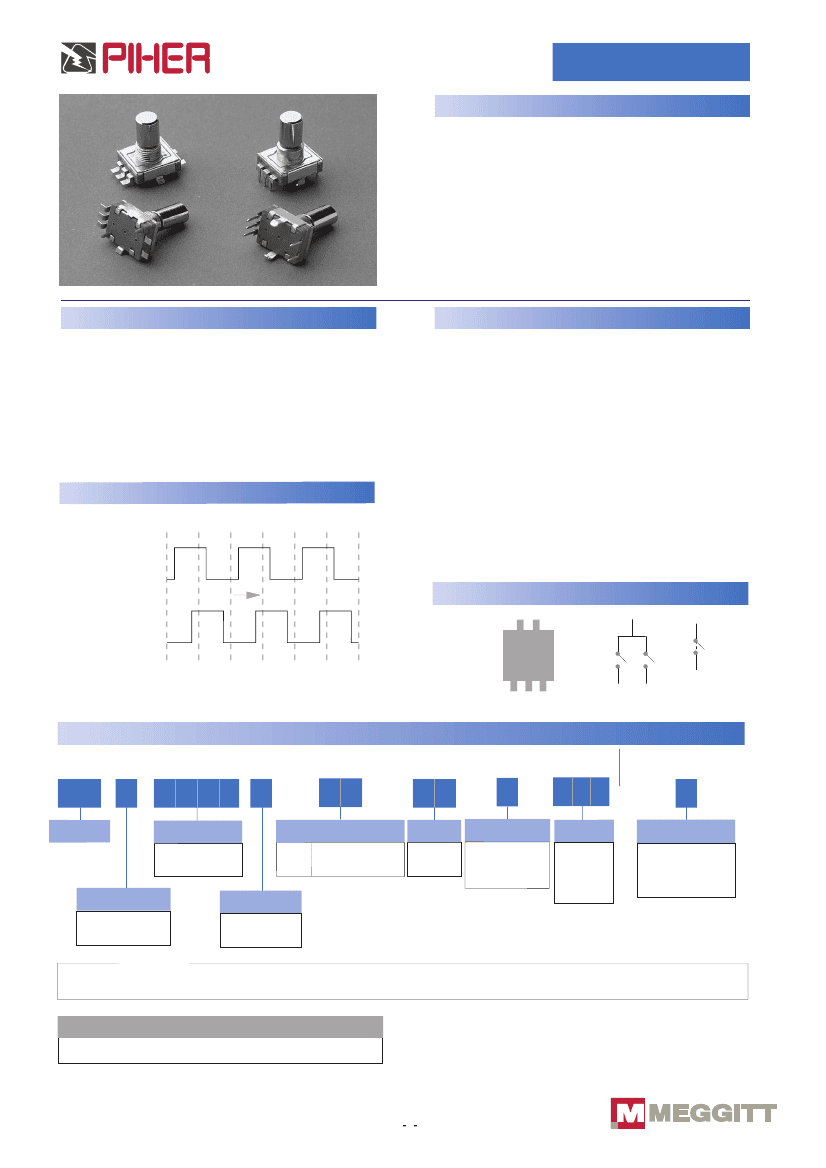

CI-11
FEATURES
11mm Low-Profile
Incremental Encoder
- 2 bit counting code
-
(see graph code)
- Contact type
- Push-on switch (optional)
- Mechanical detents
- High reliability
- High precision
- Low cost
- Long life
- Compact design
- Snap-in or bush type fastening
- Threaded or plain bush options
- Available in SMD
-
and vertical mount
- Bushless version also available
MAIN SPECIFICATIONS
Operating temperature:
Max. Current per contact:
Life (endless rotation):
Operating torque:
Push-on switch:
Contact resistance (max):
Pulses/Detents:
-40°C to 85°C
5mA DC
25,000 cycles
0.3 to 2 Ncm
0.5 mm
0.5 ohms
9/18,15/30
TYPICAL APPLICATIONS
In all kinds of applications which require a single or
multi-function rotary control interfaced with a digital
electronic circuit:
- Automotive:
Car radio: volume & tuning controls.
Climate control: temperature control & airflow distribution.
Navigation systems: mode switching.
- Consumer:
Home appliances: washing machine/Microwave
Oven timer & temperature programming controls,
Hi-Fi, CD, Mini disc and MP3 players, volume, tone and
title search controls.
- Multimedia:
LCD & CRT Monitor multi-function mode select control
(using push-on switch option)
- Professional:
Input/output adjustment for Digital Audio Mixers.
GRAPH CODE
Sequence: AB
ON
D
D
D
D
D
D
D
(A - C)
OFF
CW
ON
TERMINAL DESIGNATIONS
D E
C
E
(B - C)
OFF
Viewed from
mounting side
D= Detent
Sequence AB.....
Sequence BA.....
D
A C B
B C A
Bit Generator
A
(rotary)
B
Push-on
momentary switch

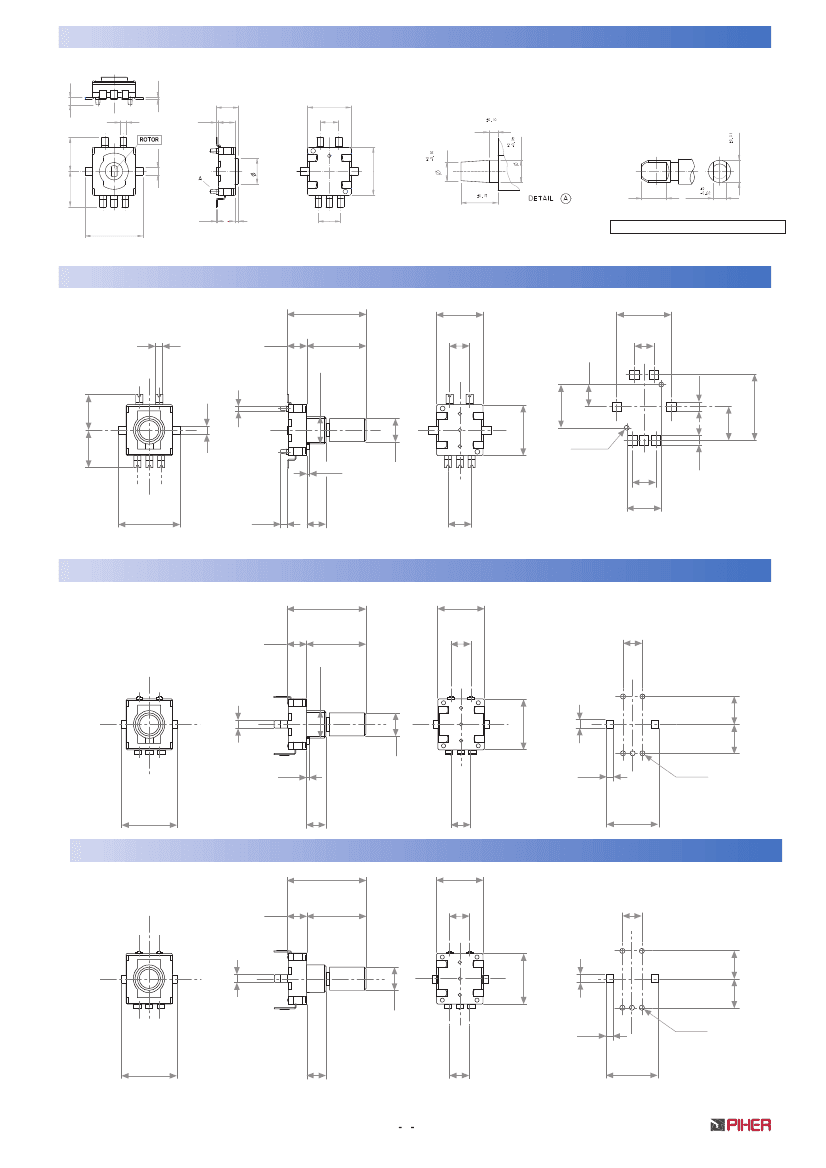

HOW TO ORDER
OPTIONAL EXTRAS
CI-11
Series
S
0 S
9
1
8
L
0
5
A
B
N
Bushing
T = Threaded
N = Not threaded
0 = Bushless
0 0 1

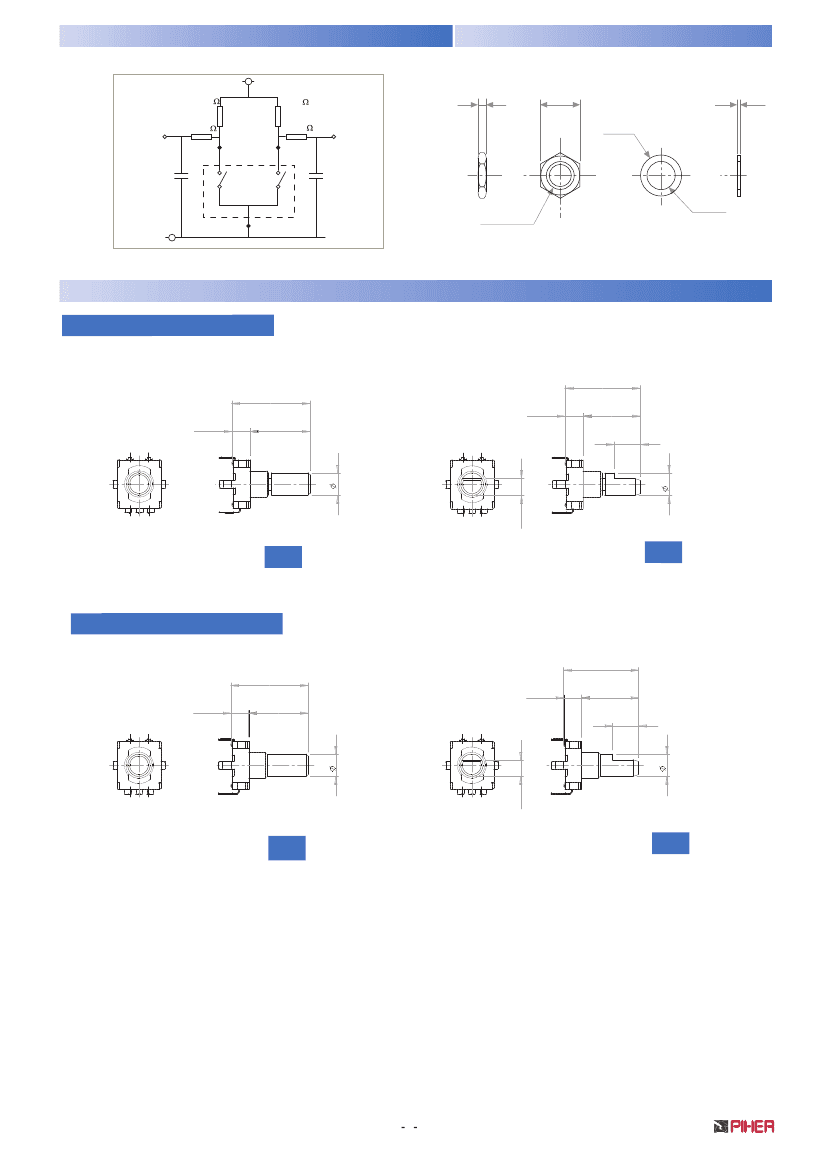

Shaft Code
001
007
101
103
(See note 1)
Pulses/Detents
09 18
15 30
Code Push on Switch
05
00
0.5 mm. travel
No switch
Sequence
AB
BA
Nut and Washer
–TA = Loose nut
and washer
–T– = Loose nut
(See note 2)
Mounting Method
V = Vertical
S = SMD
Detent Torque
L = Low
H = High
(1)
Shaft material: steel (standard) or Die Cast upon request.
(2)
Options only available for “T” Bushing models.
(Others upon request)
NOTES:
STANDARD OPTIONS
Nut & Washer . . . . . . . . . . . . . . . . . . . . . . . . . Without Nut & Washer
NOTE: The information contained here may be changed without prior notice.
