TEA18363T
GreenChip SMPS control IC
Rev. 2 — 12 December 2013
Product data sheet
1. General description
The TEA18363T is a controller IC for low-cost Switched Mode Power Supplies (SMPS). It
is intended for flyback topologies. The built-in green functions provide high efficiency at all
power levels.
At high power levels the flyback operates in Quasi-Resonant (QR) mode. At lower power
levels, the controller switches to Frequency Reduction (FR) or Discontinuous Conduction
Mode (DCM) and limits the peak current to approximately 25 % of the maximum peak
current. Valley switching is used in all operating modes.
At low power levels, when the flyback switching frequency drops below 25 kHz, the
flyback converter switches to burst mode. A special burst mode has been integrated
which reduces the opto current to a minimum level, ensuring high efficiency at low power
and excellent no load power performance. As the switching frequency in this mode has a
minimum value of 25 kHz while the burst frequency is below 800 Hz, the frequencies are
outside the audible range. During the non-switching phase of the burst mode, the internal
IC supply current is minimized for further efficiency optimization.
The TEA18363T includes an accurate OverPower Protection (OPP). The OPP enables
the controller to operate in overpower situations for a limited amount of time. If the output
is shorted, the system switches to low-power mode where the output power is limited to a
lower level.
The TEA18363T is manufactured in a high-voltage Silicon-On-Insulator (SOI) process.
The SOI process combines the advantages of a low-voltage process (accuracy,
high-speed protection, functions, and control), while maintaining the high-voltage
capabilities (high-voltage start-up, low standby power, and an integrated X-capacitor
discharge function).
The TEA18363T enables low-cost, highly efficient and reliable supplies for power
requirements up to 75 W to be designed with a minimum number of external components.
All values mentioned in this data sheet are typical values, unless otherwise specified.
NXP Semiconductors
TEA18363T
GreenChip SMPS control IC
2. Features and benefits
2.1 General features
SMPS controller IC for low-cost applications
Large supply voltage range (up to 30 V)
Integrated high-voltage start-up
Continuous VCC regulation during start-up and protection via the HV pin, allowing a
minimum VCC capacitor value
Reduced opto current in burst mode enabling low no load power consumption
Operating frequencies in all operating modes are outside the audible area
Integrated X-capacitor discharge; NXP Semiconductors patented
(Patent reference: 81512184EP01 (Patent pending))
Adjustable soft start
2.2 Green features
Low supply current during normal operation (0.6 mA without load)
Low supply current during non-switching state in burst mode (0.2 mA)
Valley switching for minimum switching losses
Frequency reduction with fixed minimum peak current to maintain high efficiency at
low output power levels
2.3 Protection features
Mains voltage independent OverPower Protection (OPP)
OverTemperature Protection (OTP)
Integrated overpower time-out
Integrated restart timer for system fault conditions
Continuous mode protection using demagnetization detection
Accurate OverVoltage Protection (OVP)
Driver maximum on-time protection
3. Applications
Applications requiring efficient and cost-effective power supply solutions up to 75 W
4. Ordering information
Table 1.
Ordering information
Package
Name
TEA18363T/1
SO8
Description
plastic small outline package; 8 leads; body width 3.9 mm
Version
SOT96-1
Type number
TEA18363T
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2013. All rights reserved.
Product data sheet
Rev. 2 — 12 December 2013
2 of 27
xxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxx x xxxxxxxxxxxxxx xxxxxxxxxx xxx xxxxxx xxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxx
xxxxx xxxxxx xx xxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxx xxxxxxx xxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxx xxxxxxxxxxxxxx xxxxxx xx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxxxx xxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxx xxxxx x x
Product data sheet
Rev. 2 — 12 December 2013
3 of 27
TEA18363T
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2013. All rights reserved.
5. Block diagram
GreenChip SMPS control IC
NXP Semiconductors
TEA18363T
Fig 1.

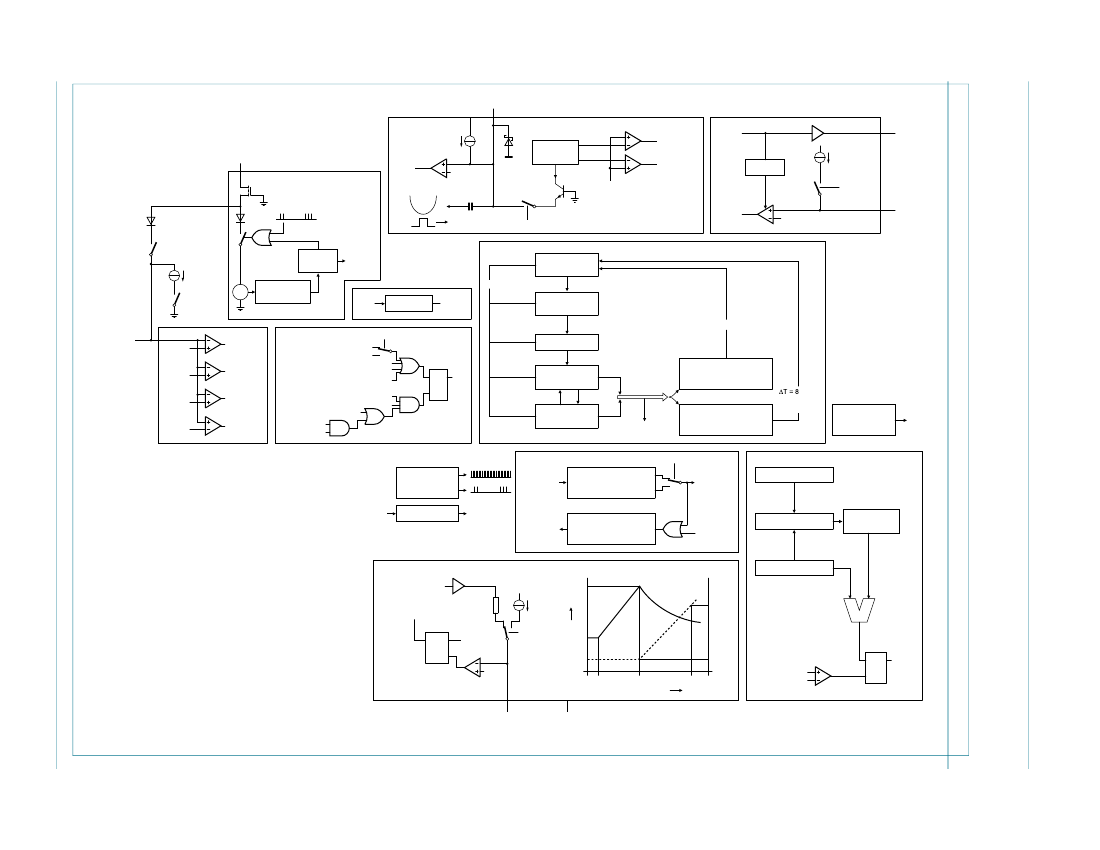

Block diagram
NXP Semiconductors
TEA18363T
GreenChip SMPS control IC
6. Pinning information
6.1 Pinning
Fig 2.
TEA18363T pinning diagram
6.2 Pin description
Table 2.
Pin
VCC
GND
DRIVER
ISENSE
AUX
CTRL
n.c.
HV
Pin description
Pin number
1
2
3
4
5
6
7
8
Description
supply voltage
ground
gate driver output
current sense input
auxiliary winding input for demagnetization timing, valley
detect, overpower correction, and OVP
control input
not connected
high voltage start-up; active X-capacitor discharge
TEA18363T
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2013. All rights reserved.
Product data sheet
Rev. 2 — 12 December 2013
4 of 27
NXP Semiconductors
TEA18363T
GreenChip SMPS control IC
7. Functional description
7.1 General control
Figure 3
shows a typical configuration of the TEA18363T, including flyback circuit
controller.
Fig 3.
Typical TEA18363T configuration
7.1.1 Start-up and UnderVoltage LockOut (UVLO)
Initially, the capacitor on the VCC pin is charged from the high-voltage mains using the
HV pin. As long as V
CC
is below V
startup
, the IC current consumption is minimized to
40
A.
When V
CC
reaches the V
startup
level, the control logic activates the internal circuitry. The
IC then waits for the CTRL pin to reach V
startup(CTRL)
, and the mains voltage to increase to
above the brownin level. When both conditions are met, the soft start capacitor on the
ISENSE pin (C
SS
in
Figure 3)
is charged. The system starts switching. In a typical
application, the supply voltage is taken over by the auxiliary winding of the transformer.
During the start-up period, the VCC pin is continuously regulated to the V
startup
level using
the HV charge current until the output voltage is at its regulation level, which is detected
via the CTRL pin. In this way the VCC capacitor value can be limited. Due to the limited
current capability from the HV pin and depending on the mains voltage, the voltage on pin
VCC can still drop slightly during the start-up period.
TEA18363T
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2013. All rights reserved.
Product data sheet
Rev. 2 — 12 December 2013
5 of 27
Analogue and Mixed Signal
