S-8244AACFN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> S-8244AACFN

S-8244AACFN: DescriptionPower Supply Support Circuit, Fixed, 4 Channel, PDSO8, MSOP-8; CategoryPower/power management The power supply circuit; File Size67KB，1 Pages; ManufacturerSII Semiconductor Corporation

Download Datasheet Parametric Compare View All

S-8244AACFN Overview

Power Supply Support Circuit, Fixed, 4 Channel, PDSO8, MSOP-8

S-8244AACFN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SII Semiconductor Corporation
package instruction	LSSOP,
Reach Compliance Code	compliant
Adjustable threshold	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G8
length	2.95 mm
Number of channels	4
Number of functions	1
Number of terminals	8
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	1.3 mm
Maximum supply voltage (Vsup)	24 V
Minimum supply voltage (Vsup)	3.6 V
surface mount	YES
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	2.8 mm

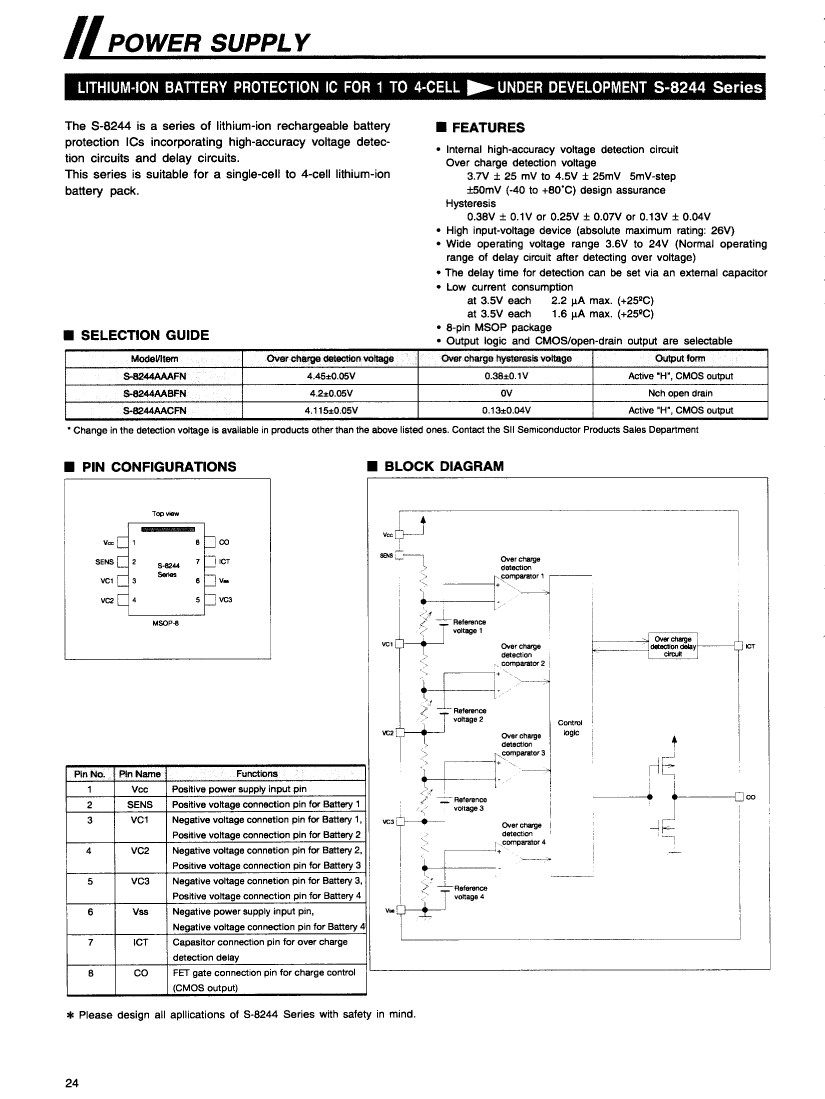

Preview

Download Datasheet

View All

S-8244AACFN Related Products

	S-8244AACFN	S-8244AABFN	S-8244AAAFN
Description	Power Supply Support Circuit, Fixed, 4 Channel, PDSO8, MSOP-8	Power Supply Support Circuit, Fixed, 4 Channel, PDSO8, MSOP-8	Power Supply Support Circuit, Fixed, 4 Channel, PDSO8, MSOP-8
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	SII Semiconductor Corporation	SII Semiconductor Corporation	SII Semiconductor Corporation
package instruction	LSSOP,	LSSOP,	LSSOP,
Reach Compliance Code	compliant	compliant	compliant
Adjustable threshold	NO	NO	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
length	2.95 mm	2.95 mm	2.95 mm
Number of channels	4	4	4
Number of functions	1	1	1
Number of terminals	8	8	8
Maximum operating temperature	80 °C	80 °C	80 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	LSSOP	LSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.3 mm	1.3 mm	1.3 mm
Maximum supply voltage (Vsup)	24 V	24 V	24 V
Minimum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V
surface mount	YES	YES	YES
Temperature level	OTHER	OTHER	OTHER
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	2.8 mm	2.8 mm	2.8 mm
