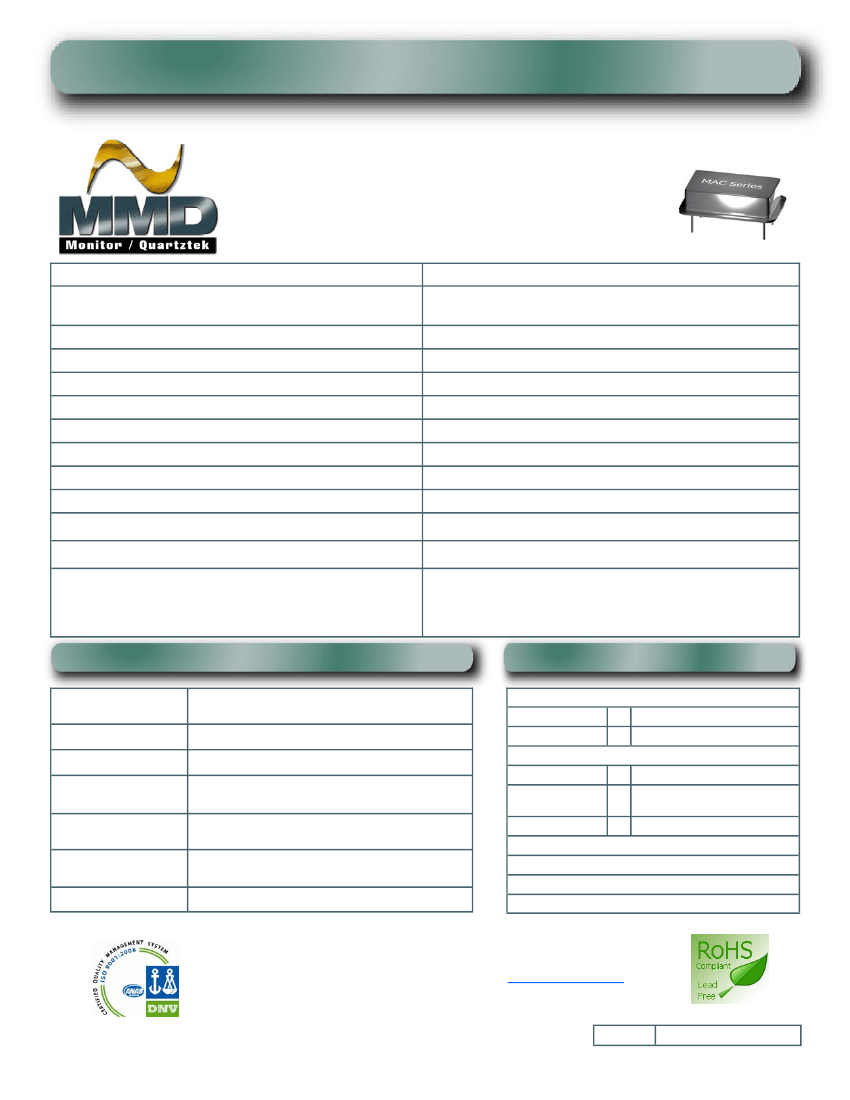

MAC Series 14 Pin DIP Oscillator
Industry Standard Package
RoHS Compliant Available
32.768KHz
CMOS Output
Frequency Range
Frequency Stability (Inclusive of Temperature, Load, Voltage
and Aging)
Operating Temperature
Storage Temperature
Supply Voltage
Supply Current
Waveform
Logic “0”
Logic “1”
Duty Cycle
Load
Rise / Fall Time
10% to 90% of waveform
32.768KHZ
See Part Number Guide
See Part Number Guide
-55°C to +125°C
5.0VDC ±10%
10mA max
CMOS
10% Vdd max
90% Vdd min
See Part Number Guide
10K Ohms // 15pF
10nSec max
Tri-State Operation
Voh =
70% of Vdd min or No Connection to Enable Output
Vol =
30% of Vdd max or grounded to Disable Output (High Imped-
ance)
Environmental & Mechanical Detail
Shock
Solderability
Solvent Resistance
Vibration
Gross Leak Test
Fine Leak Test
MSL
MIL-STD-883, Method 2002 Cond B
MIL-STD-883, Method 2003
MIL-STD-202, Method 215
MIL-STD-883, Method 2007, Cond A
MIL-STD-883, Method 1014, Cond C
MIL-STD-883, Method 1014, Cond A2
Level 1 per IPC/JEDEC J-STD 20
Marking Detail
Line 1 = MXXXXX
M
XXXXX
=
=
MMD
Frequency in MHZ
Internal Code
4 Numerical Digit Date
Code (Year / Week)
Denotes RoHS Compliant
Line 2 = SYYWWL
S =
YYWW
L
Line 3 = XXXXX
=
=
Internal use only
May vary with lots
Pin 1 Designator
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
In the event of conflict, the requirements of this specification shall govern.
Revisions only with customer approval
11/18/10 E
Pg 1 of 2

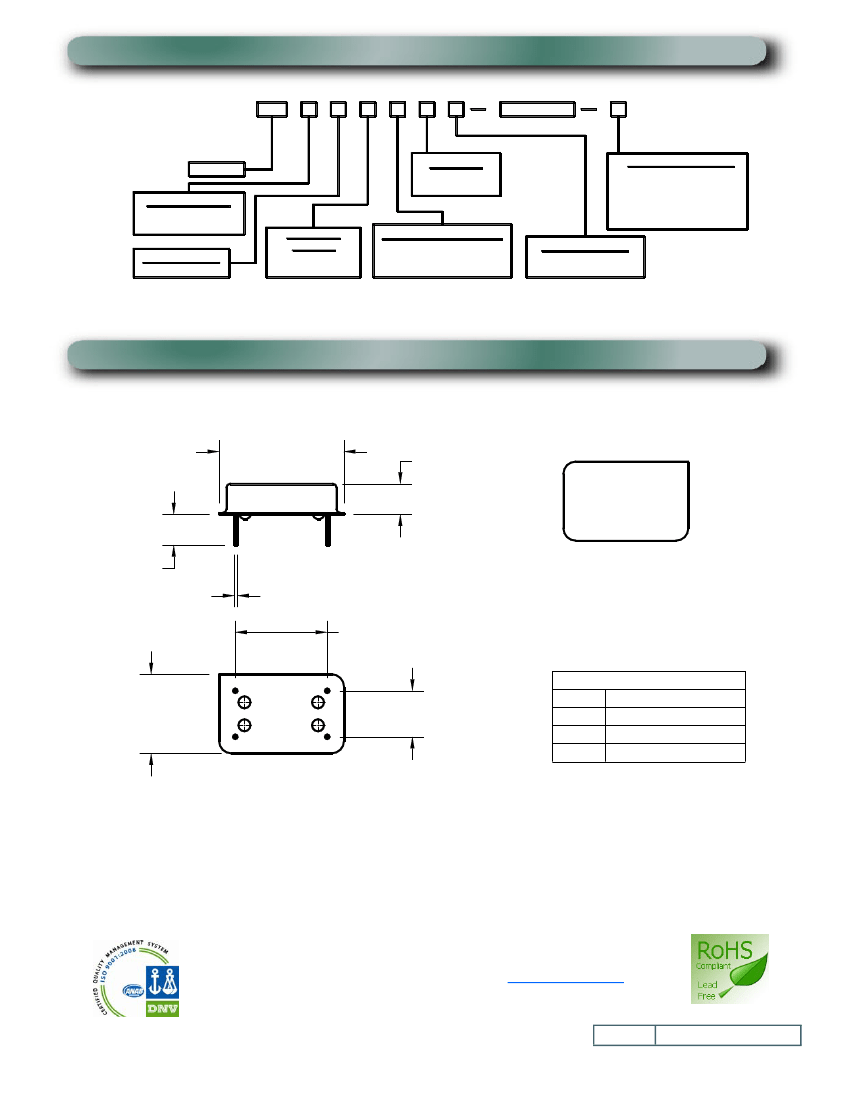

Part Number Guide
MAC
5
32.768KHZ
14 pin DIP
RoHS Compliant
Blank = Not Compliant
F = Is RoHS Compliant
Supply Voltage
5 = +5.0 VDC
Frequency
Stability
050 = ±50 ppm
100 = ±100 ppm
Symmetry
Blank = 40/60%
A = 45/55%
Value Added Options
Blank = No Added Options
G1 = Gull-Wing (option 1)
G = Gull-Wing (option 2)
CLXXX = Cut Leads
XXX = Lead Length Code
Pin 1 Connection
Blank = No Connect
H = Tri-state
Operating Temperature
Blank = 0°C to +70°C
27 = -20°C to +70°C
48 = -40°C to +85°C
PLEASE CONSULT WITH MMD SALES DEPARTMENT FOR ANY OTHER PARAMETERS OR OPTIONS
Mechanical Details
20.70 [.815]
MAX
5.08 [.200]
MXXXXX
SYYWWL
XXXXX
5.08 [.200]
MIN
.50 [.020]
15.24 [.600]
1
14
7
PIN CONNECTIONS
PIN 1 N/C OR TRI-STATE
PIN 7 CASE GROUND
PIN 8 OUTPUT
PIN 14 SUPPLY VOLTAGE
13.10 [.516]
MAX
7.62 [.300]
8
DIMENSIONS IN BRACKET ARE IN INCHES
EXTERNAL BYPASS CAPACITOR RECOMMENDED
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
In the event of conflict, the requirements of this specification shall govern.
Revisions only with customer approval
11/18/10 E
Pg 2 of 2
