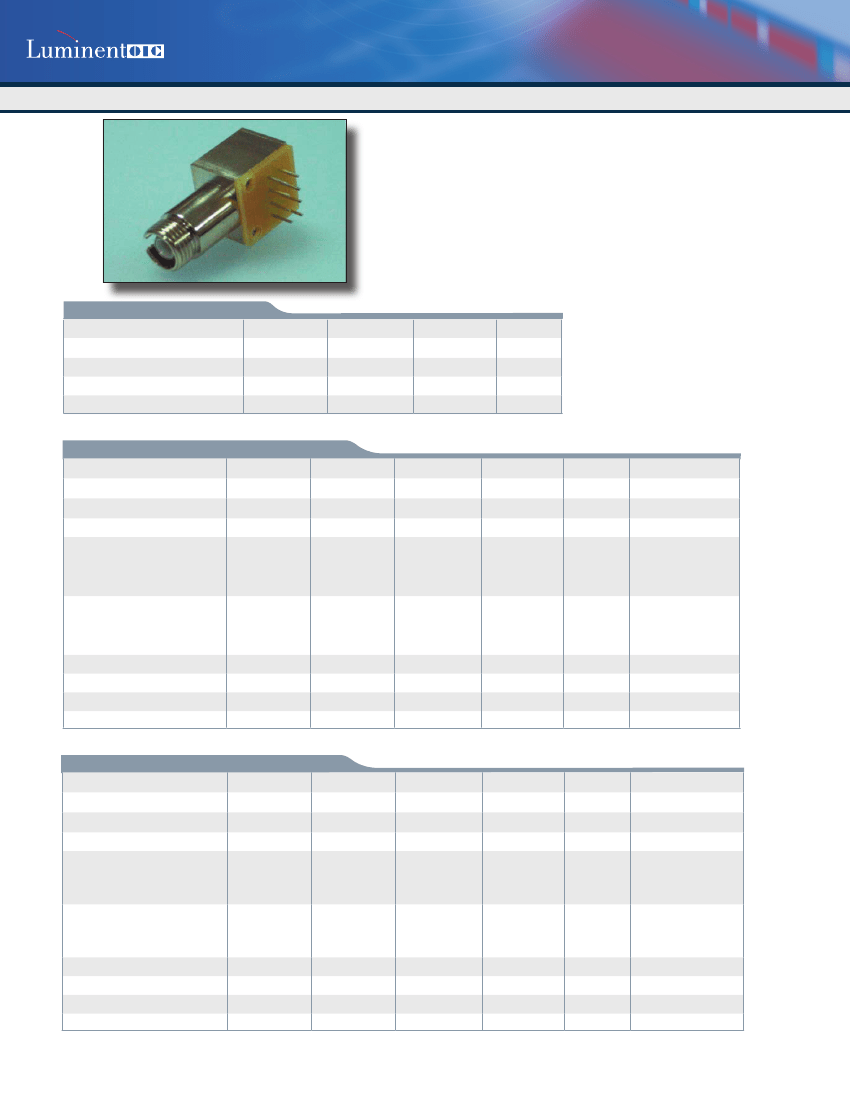

ELED FC Sugar Cube Transmitter
Preliminary
SGC-GC-XXB-X-XXFC-XX
Features
• 1300nm or 1550nm Wavelength
• For Singlmode / Multimode Applications
• High Optical Power
• Low Operating Current
• High Speed
• Low Modal Noise
• 8 Pin Package with FC
• High Operating Temperature
• FC Type Sugar Cube
• For Data com Measurement Application
• RoHS Compliant available
Absolute Maximum Ratings (Tc=25ºC)
Parameter
Reverse Voltage
Operating Current
Operating Temperature
Storage Temperature
Symbol
V
r
I
op
T
opr
T
stg
Condition
CW
CW
-
-
Rating
2.5
150
-20 ~ 70
-40 ~ 85
Unit
V
mA
ºC
ºC
(All optical data refer to a coupled 9/125
µ
m SM & 50/125
µ
m M/M fiber)
Optical and Electrical Characteristics 1300nm (Tc=25ºC)
Parameter
Wavelength
Spectral Width
Operating Current
Output Power (SM, 9/125µm)
L
M
H
Output Power(MM, 50/125µm)
L
M
H
Foward Voltage
Rise Time
Fall Time
Output Power Variation
Symbol
λ
∆λ
I
op
P
f
Min
1260
30
-
10
30
50
30
50
70
-
-
Typ
1300
-
80
-
-
-
-
-
-
1.2
1.5
2.5
4
Max
1340
80
100
40
60
80
-
-
-
2.0
-
-
-
Unit
nm
nm
mA
µW
Test Conditions
CW
CW
CW
Iop=80 mA
P
f
Vf
T
r
T
f
µW
V
ns
ns
dB
Iop=80 mA
CW
-
-
25ºC to 70ºC
(All optical data refer to a coupled 9/125
µ
m SM & 50/125
µ
m M/M fiber)
Optical and Electrical Characteristics 1550nm (Tc=25ºC)
Parameter
Peak Wavelength
Spectral Width(RMS)
Operating Current
Output Power(SM, 9/125µm)
L
M
H
Output Power(MM, 50/125µm)
L
M
H
Foward Voltage
Rise Time
Fall Time
Output Power Variation
LUMINENTOIC.COM
Symbol
λ
∆λ
I
op
P
f
Min
1510
45
-
10
20
30
20
30
40
-
-
Typ
1550
-
80
-
-
-
-
-
-
1.2
1.5
2.5
4
Max
1590
80
100
-
-
-
-
-
-
2.0
-
-
-
Unit
nm
nm
mA
µW
Test Conditions
CW
CW
CW
Iop=80 mA
P
f
Vf
T
r
T
f
µW
V
ns
ns
dB
Iop=80 mA
CW
-
-
25ºC to 70ºC
LUMNDS706-SEP2905
rev. A.2
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
1

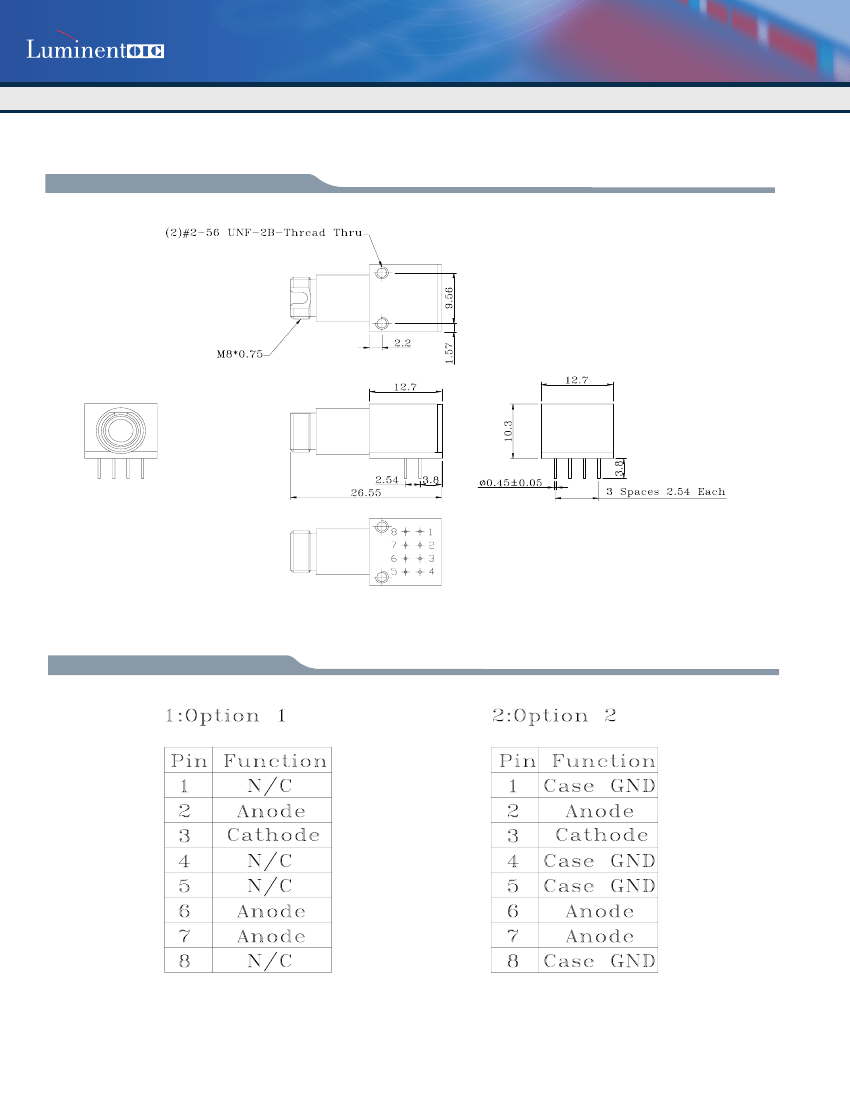

ELED FC Sugar Cube Transmitter
Preliminary
SGC-GC-XXB-X-XXFC-XX
Ordering Information
SGC-GC-XXB-X-XXFC-XX
Family
SGC=Sugar Cube
Application
C=CW
Tolerance
B=+/- 40nm
Pinout
1=Option 1 (Tx)
2=Option 2 (Tx)
Connector
FC=FC
Device
G=ELED (Long)
Wavelength
30:1300nm
55:1550nm
Power
L/M/H
Fiber
S = Singlemode 9/125/900um
M= Multimode 50/125/900um
-/G5/GR
Blank = RoHS non-compliant product
G5 = RoHS 5/6-compliant product (lead exemption)
GR = Full RoHS compliant product (no exemption)
RoHS Compliant
Warnings
Handling Precautions:
This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Follow
guidelines according to proper ESD procedures.
Laser Safety:
Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.
Legal Notice
IMPORTANT NOTICE!
All information contained in this document is subject to change without notice, at Luminent＇s sole and absolute discretion. Luminent warrants performance of its
productstocurrentspecificationsonlyinaccordancewiththecompany＇sstandardone-yearwarranty;however,specificationsdesignatedas“preliminary＂aregivento
describecomponentsonly,andLuminentexpresslydisclaimsanyandallwarrantiesforsaidproducts,includingexpress,implied,andstatutorywarranties,warranties
ofmerchantability,fitnessforaparticularpurpose,andnon-infringementofproprietaryrights. Pleaserefertothecompany＇sTermsandConditionsofSaleforfurther
warranty information.
Luminentassumesnoliabilityforapplicationsassistance,customerproductdesign,softwareperformance,orinfringementofpatents,services,orintellectualproperty
describedherein. Nolicense,eitherexpressorimplied,isgrantedunderanypatentright,copyright,orintellectualpropertyright,andLuminentmakesnorepresenta-
tionsorwarrantiesthattheproduct(s)describedhereinarefreefrompatent,copyright,orintellectualpropertyrights. ProductsdescribedinthisdocumentareNOT
intended for use in implantation or other life support applications where malfunction may result in injury or death to persons. Luminent customers using or selling
products for use in such applications do so at their own risk and agree to fully defend and indemnify Luminent for any damages resulting from such use or sale.
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS＂ BASIS. Customer agrees that Luminent is not liable for any actual,
consequential, exemplary, or other damages arising directly or indirectly from any use of the information contained in this document. Customer must contact Lumi-
nent to obtain the latest version of this publication to verify, before placing any order, that the information contained herein is current.
© Luminent, Inc. 2005
All rights reserved
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS706-SEP2905
rev. A.2
3
