LL4707 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> LL4707

LL4707: DescriptionZener Diode, 20V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-213AA; CategoryDiscrete semiconductor diode; File Size138KB，1 Pages; ManufacturerInternational Semiconductor Inc

Download Datasheet Parametric Compare View All

LL4707 Overview

Zener Diode, 20V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-213AA

LL4707 Parametric

Parameter Name	Attribute value
Maker	International Semiconductor Inc
package instruction	O-LELF-R2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-213AA
JESD-30 code	O-LELF-R2
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Certification status	Not Qualified
Nominal reference voltage	20 V
surface mount	YES
technology	ZENER
Terminal form	WRAP AROUND
Terminal location	END
Maximum voltage tolerance	5%
Working test current	0.05 mA

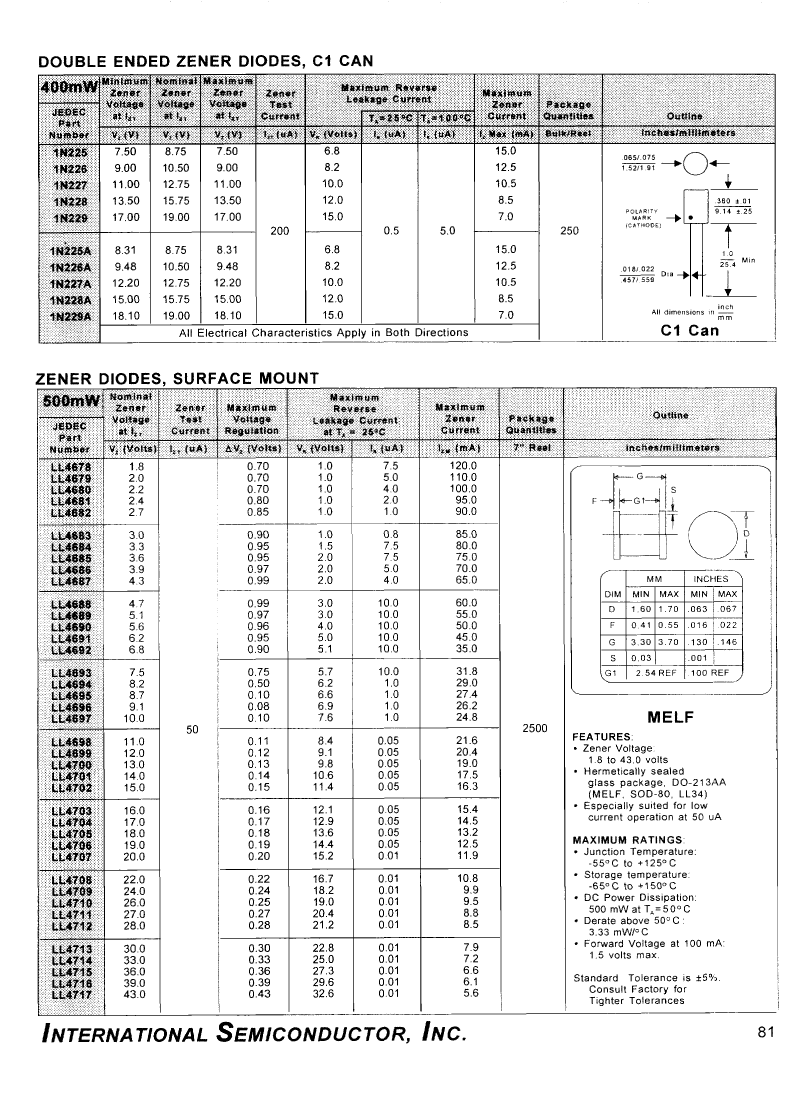

Preview

Download Datasheet

View All

LL4707 Related Products

	LL4707	LL4695	LL4691	LL4699	LL4693
Description	Zener Diode, 20V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-213AA	Zener Diode, 8.7V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-213AA	Zener Diode, 6.2V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-213AA	Zener Diode, 12V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-213AA	Zener Diode, 7.5V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-213AA
Maker	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc
package instruction	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
JEDEC-95 code	DO-213AA	DO-213AA	DO-213AA	DO-213AA	DO-213AA
JESD-30 code	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2
Number of components	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	20 V	8.7 V	6.2 V	12 V	7.5 V
surface mount	YES	YES	YES	YES	YES
technology	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal form	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND
Terminal location	END	END	END	END	END
Maximum voltage tolerance	5%	5%	5%	5%	5%
Working test current	0.05 mA	0.05 mA	0.05 mA	0.05 mA	0.05 mA
