Features
■
■
■
Applications
■
DC to 4 GHz
Flanged model
Low VSWR
*R
oH
S
CO
M
High power RF transmission
PL

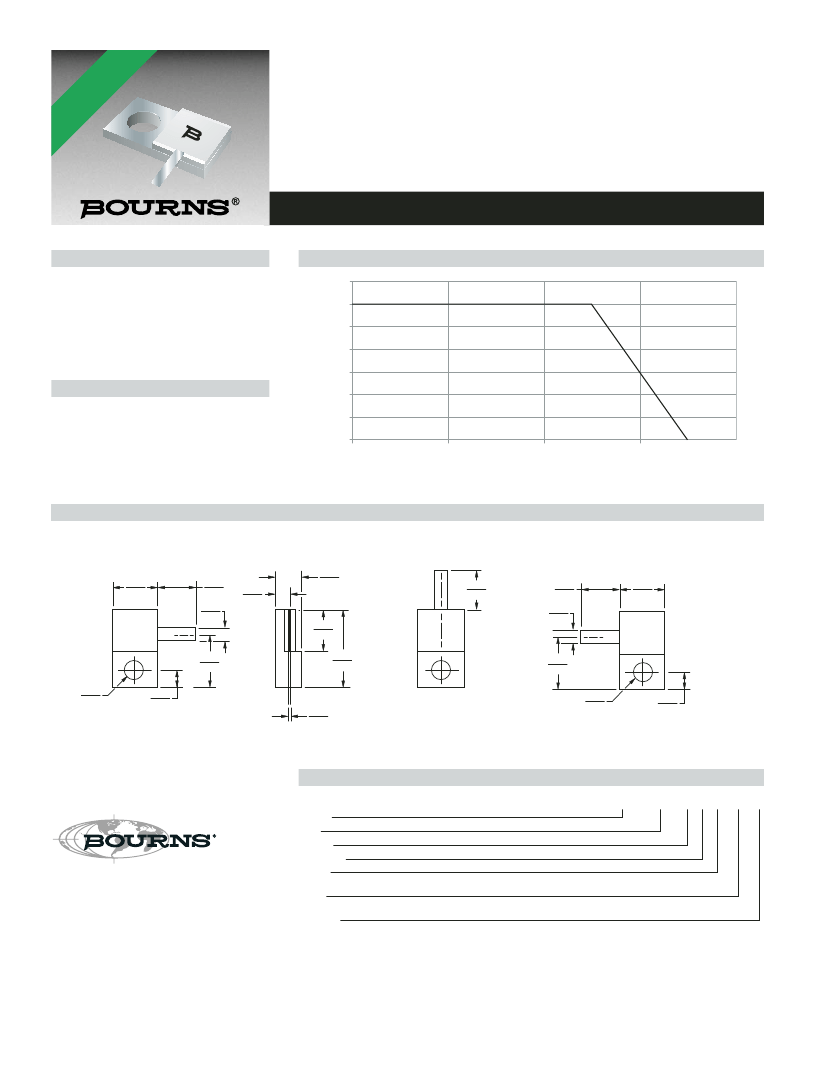

CHF5225CBF Series 60 W Power RF Flanged Chip Termination
General Specifications
Substrate ...........................................Beo
Resistive Film...........................Thick Film
Tab .......................................................Ag
Cover Substrate.............................AL203
Mounting Flange ..........Cu plated with Ni
Resistance........................................50
Ω
Tolerance .........................................±5 %
Packaging ...........................100 pcs./box
Absolute Ratings
Power...............................................60 W
Frequency ...................................4.0 GHz
VSWR .................................1.2 Maximum
Characteristic Curve
70
60
50
Power (Watts)
40
30
20
10
0
-55
0
100
150
Heat Sink Temperature (°C)
Product Dimensions
Version C
4.0
(.157)
Version D
Version E
6.35
(.025)
6.5
(.256)
1.5
(.059)
2.57
(.101)
6.5
(.256)
6.5
(.256)
1.5
(.059)
6.35
(.025)
6.35
(.250)
13.1
(.516)
10.0
(.394)
3.0
(.118)
DIA.
3.17
(.125)
10.0
(.394)
3.0
(.118)
DIA.
3.17
(.125)
0.1
(.004)
How To Order
CHF 5225 C B F 500 L
Model
Size
Version
Substrate
Mount
F = Flange
Value
500 = 50 Ohm
Function
L = Termination
