CD10ED750JO3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> CD10ED750JO3

CD10ED750JO3: DescriptionMica Capacitor, Mica, 500V, 5% +Tol, 5% -Tol, -20/+100ppm/Cel TC, 0.000075uF, Through Hole Mount, 3719, RADIAL LEADED; CategoryPassive components capacitor; File Size166KB，6 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric View All

CD10ED750JO3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD10ED750JO3	-	-	View	Buy Now

CD10ED750JO3 Overview

Mica Capacitor, Mica, 500V, 5% +Tol, 5% -Tol, -20/+100ppm/Cel TC, 0.000075uF, Through Hole Mount, 3719, RADIAL LEADED

CD10ED750JO3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.000075 µF
Capacitor type	MICA CAPACITOR
dielectric materials	MICA
high	8.6 mm
length	9.4 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
positive tolerance	5%
Rated (DC) voltage (URdc)	500 V
surface mount	NO
Temperature Coefficient	-20/+100ppm/Cel ppm/°C
Terminal pitch	3.6 mm
Terminal shape	WIRE
width	5.1 mm

Preview

Download Datasheet

View All

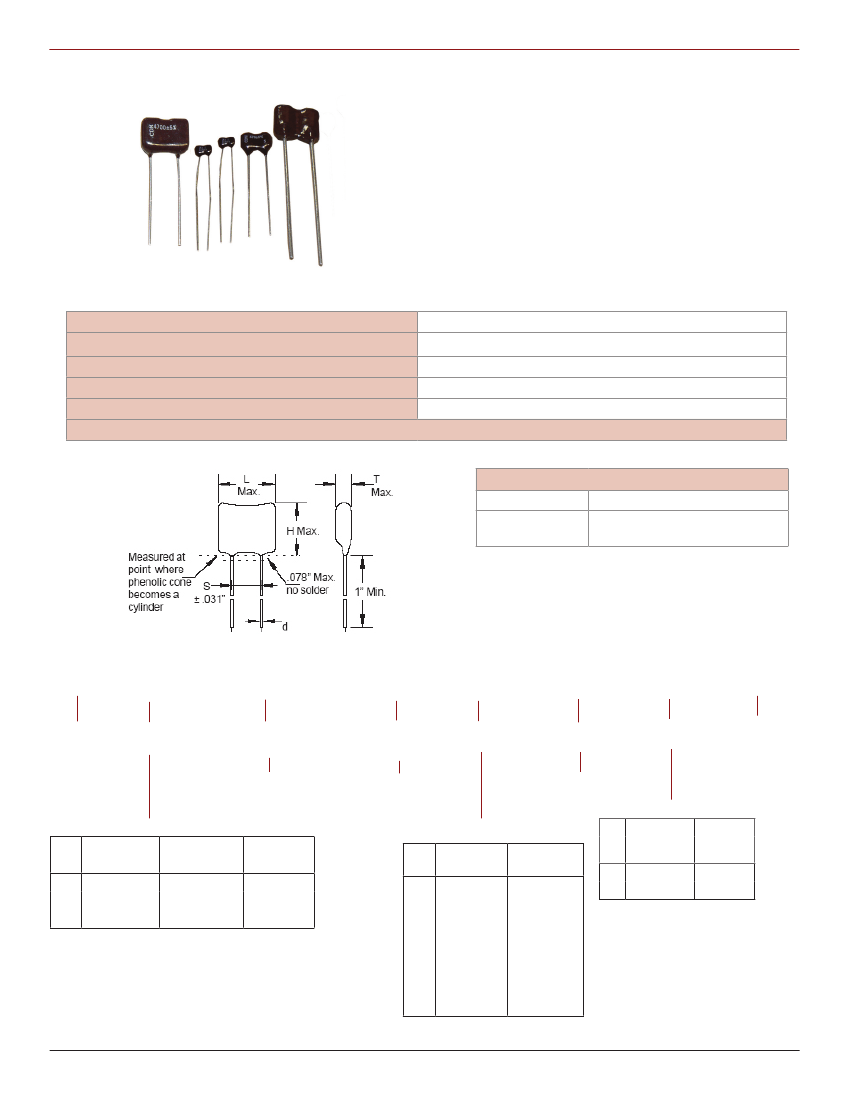

Mica Capacitors, Standard Dipped

Types CD10, D10, CD15, CD19, CD30, CD42, CDV19, CDV30

Stability and mica go hand-in-hand when you need to count

on stable capacitance over a wide temperature range. CDE’s

standard dipped silvered mica capacitors are the first choice for

timing and close tolerance applications. These standard types

are widely available through distribution.

Highlights

- Reel packaging available

- High temperature – up to +150 ºC

- Dimensions meet EIA RS153B specification

- 100,000 V/µs dV/dt pulse capability minimum

- Non-flammable units that meet IEC 695-2-2 are available

1 pF to 91,000 pF

±1/2 pF (D), ±1 pF (C), ±1/2% (E), ±1% (F), ±2% (G), ±5% (J)

100 Vdc to 2500 Vdc

–55 ºC to +125 ºC (O) –55 ºC to +150 ºC (P)*

200% of rated voltage

RoHS Compliant

* P temperature range available for types CD10, CD15, CD19, CD30 and CD42

Specifications

Capacitance Range

Capacitance Tolerance

Rated Voltage

Operating Temperature Range

Dielectric Strenght Test

Dimensions

Construction Details

Case Material

Terminal Material

Epoxy

Copper clad steel, nickle undercoat,

100% tin finish

Ordering Information

Order by complete part number as below. For other options,

write your requirements on your purchase order or request

for quotation.

Part Numbering System

(Radial-Leaded Silvered Mica Capacitors, except D10*)

CD15

Characteristic

Code

Voltage

(Vdc)

100

Capacitance

(pF)

Capacitance

Tolerance

Temperature

Range

Vibration

Grade

Blank =

Not Specified

F= RoHS

Compliant

Series

Characteristics

Code

Temp. Coeff.

ppm/ ºC

–200 to +200

–20 to +100

0 to +70

F = 1000 Vdc

A = 100 Vdc H = 1500 Vdc

C = 300 Vdc J = 2000 Vdc

D = 500 Vdc K = 2500 Vdc

Standard Cap.

Range

1–18 pF

20–82 pF

Drift

Capacitance

±(0.5% +0.1pF)

±(0.1% +0.1 pF)

010 = 1 pF

O = –55 ºC to +125 ºC

100 = 10 pF

P = –55 ºC to +150 ºC

(1.5) = 1.5 pF

361 = 360 pF

122 = 1200 pF

Capacitance Tolerance

Tol.

Code

Tolerance

±1 pF

±1⁄2 pF

±1⁄2 %

±1 %

±2 %

±3 %

±5 %

Capacitance

Range

1– 9 pF

1–99 pF

100 pF and up

50 pF and up

25 pF and up

18 pF and up

10 pF and up

Vibration Grade

Vibration

Condition

No. MIL-STD-202

(Hz)

Method 204

Condition D

10 to 2,000

±(0.05% +0.1 pF) 91 pF and up

Options Available

- Non-flammable units per IEC 695-2-2 are available for standard

dipped capacitors. Specify IEC 695-2-2 on your order.

- Tape and reeling, specify per application guide.

Standard tolerance is ±1/2 pF for less

* Order type D10 using the catalog numbers

than 10 pF and ±5% for 10 pF and up

shown in ratings tables.
