ISL59603IRZ-T7A datasheet, PDF

Datasheet> All Categories > Other integrated circuit (IC)> Consumption circuit> ISL59603IRZ-T7A

ISL59603IRZ-T7A: DescriptionMegaQ™: An Automatic Composite Video Equalizer, Fully-Adaptive to 1 Mile (1600m); QFN20; Temp Range: -40° to 85°C; CategoryOther integrated circuit (IC) Consumption circuit; File Size4MB，29 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

ISL59603IRZ-T7A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ISL59603IRZ-T7A	-	-	View	Buy Now

ISL59603IRZ-T7A Overview

MegaQ™: An Automatic Composite Video Equalizer, Fully-Adaptive to 1 Mile (1600m); QFN20; Temp Range: -40° to 85°C

ISL59603IRZ-T7A Parametric

Parameter Name	Attribute value
Brand Name	Intersil
Maker	Renesas Electronics Corporation
Parts packaging code	QFN
package instruction	HVQCCN, LCC20,.16SQ,20
Contacts	20
Reach Compliance Code	compliant
Factory Lead Time	5 weeks
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	S-PQCC-N20
JESD-609 code	e3
length	4 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	HVQCCN
Encapsulate equivalent code	LCC20,.16SQ,20
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1 mm
Maximum slew rate	60 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn) - annealed
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4 mm

Preview

Download Datasheet

View All

DATASHEET

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

MegaQ™: An Automatic Composite Video Equalizer, Fully-Adaptive

to 1 Mile (1600m)

The

ISL59601, ISL59602, ISL59603, ISL59604,

and

ISL59605

(the “MegaQ™” product family) are single-channel

adaptive equalizers designed to automatically compensate for

long runs of Cat 5/6 or RG-59 cable, producing high quality

video output with no user interaction. The ISL59601 equalizes

Cat 5/6 up to a distance of 1000 feet (300 meters), while the

ISL59605 equalizes up to 5300 feet (1600 meters).

MegaQ™ compensates for high frequency cable losses of up to

60dB (ISL59605) at 5MHz as well as source amplitude

variations up to ±3dB.

The ISL59601, ISL59602, ISL59603, ISL59604, and

ISL59605 operate from a single +5V supply. Inputs are

AC-coupled and internally DC-restored. The output can drive

P-P

into two source-terminated 75Ω loads (AC-coupled or

DC-coupled).

FN6739

Rev.3.00

May 22, 2019

Features

• ISL59605 Equalizes Up to 1 Mile (1600m) of Cat 5/6 and Up

to 6000 Feet (1800m) of RG-59

• Fully Automatic, Stand-Alone Operation - No User

Adjustment Required

• ±8kV ESD Protection on All Inputs

• Automatic Cable Type Compensation

• Compatible with Color or Monochrome, NTSC or PAL Signals

• Automatic Polarity Detection and Inversion

• Compensates for ±3dB Source Variation (in Addition to

Cable Losses)

• Optional Serial Interface Adds Additional Functionality

• 5MHz -3dB Bandwidth

• Works with Single-Ended or Differential Inputs

• Output Drives Up to Two 150Ω Video Loads

Related Literature

•

AN1775

“ISL59605-SPI-EVALZ Evaluation Board (with Serial

Interface) Operation” (Evaluation Board with USB Serial

Interface)

Applications

• Surveillance Video

• Video Distribution

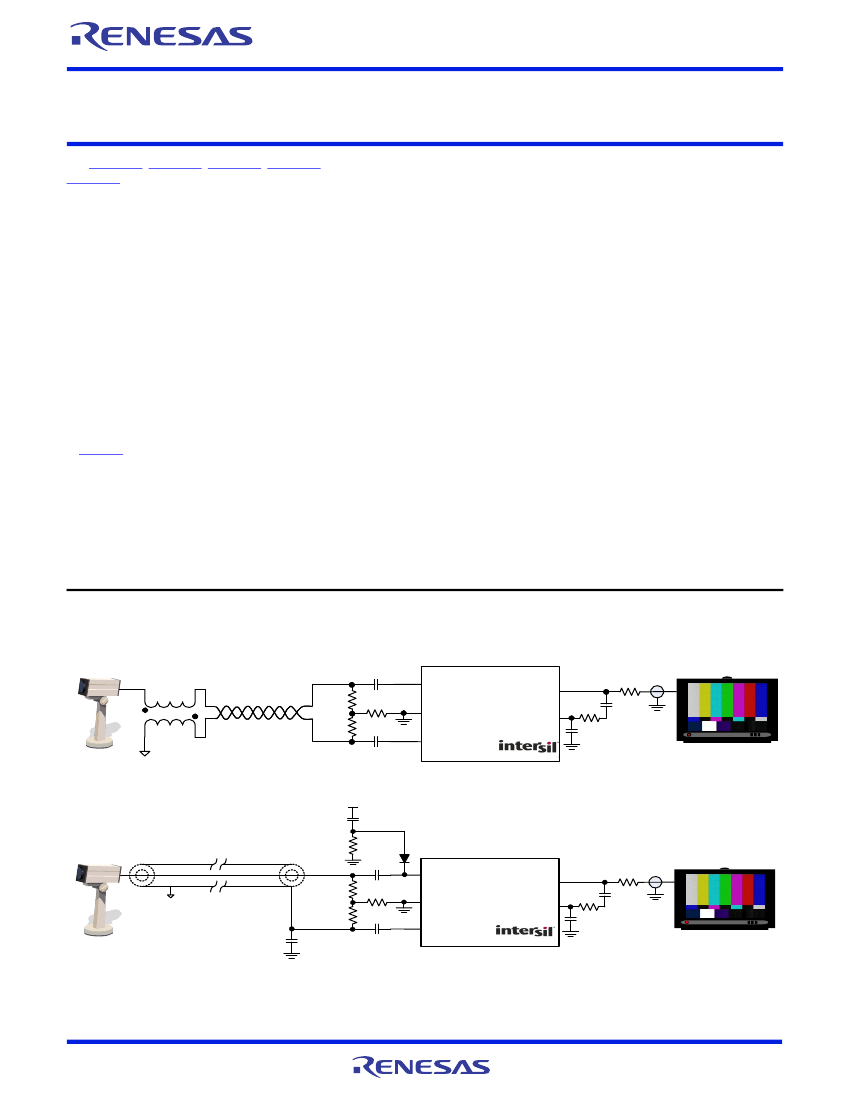

Typical Application

NTSC, PAL, OR

MONOCHROME CAMERA/

VIDEO SOURCE

PASSIVE

BALUN

Application Circuit for Cat x Cable

1.0µF

IN+

1.0µF

GND

IN-

UP TO 1 MILE OF

CAT-5/6 CABLE

ISL59601

ISL59602

ISL59603

ISL59604

ISL59605

OUT

CFB

300

1500pF

75.0

0.047µF

TV/DVR

0.1µF

Application Circuit for Coaxial Cable

N TSC, PAL, O R

M ON O CH RO M E CAM ERA /

VIDEO SOU RCE

10k

1.0µF

IN +

37.5

1.0µF

0 TO 6000 FEET OVER RG-59

CO PPER -CORE CO AXIAL CABLE

0.1µF

GND

IN -

37.5

ISL59601

ISL59602

ISL59603

ISL59604

ISL59605

OU T

CFB

300

1500pF

75.0

0.047µF

TV/DVR

FN6739 Rev.3.00

May 22, 2019

Page 1 of 29

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Pin Descriptions

PIN NUMBER

INPUTS

IN+

High impedance analog input. This is the positive differential video input. Input signals are externally AC-coupled with

an external 1.0µF capacitor. See Applications Information section for information regarding input network for Cat x

and coax cables.

High impedance analog input. This is the negative differential video input. Input signals are externally AC-coupled

with an external 1.0µF capacitor. See Applications Information section for information regarding input network for

Cat x and coax cables.

Analog input. Bypass to ground with a 1500pF capacitor and connect to VIDEO OUT via a 0.047µF capacitor in series

with a 300resistor.

PIN NAME

DESCRIPTION

IN-

OUTPUTS

DIGITAL I/O

CFB

VIDEO OUT

Single-ended video output. The internal AGC sets this level to 2V

P-P

for a nominal 1V

P-P

(pre-cable) video source.

EQ_DISABLE

Digital Input. Equalizer Disable.

0: Normal Operation

1: Disables the equalizer to allow for insertion of upstream data onto the signal path, e.g. RS-485.

This pin must be asserted high or low. Do not float this pin.

Digital I/O. Color Indicator/Override.

0: Monochrome

1: Color

When used as an output, this pin indicates whether the incoming signal does or does not have a colorburst. When

used as an input, this pin forces the state machine to into monochrome or color mode. See Figure 49 and associated

text for more information on functionality.

When COLOR is not externally driven, it is an output pin with a 13k (typical) output impedance. It is capable of driving

5V, high-impedance CMOS logic.

Note: The COLOR indicator may be invalid for monochrome signals over greater than ~4800 feet. The device will still

equalize properly if this occurs.

Digital I/O. Polarity Indicator/Override.

0: Nominal Polarity.

1: Inverted Polarity.

When used as an output, this pin indicates the polarity of the incoming signal. When used as an input, this pin

controls whether or not the input signal is inverted in the signal chain. See Figure 48 and associated text for more

information on functionality.

When INVERT is not externally driven, it is an output pin with a 13k (typical) output impedance. It is capable of driving

5V, high-impedance CMOS logic.

In stand-alone mode, toggling this pin high-low-high or low-high-low will make the equalizer reacquire the signal.

Digital Output.

0: Signal is not equalized (or not present).

1: Signal is equalized and settled.

Note: The LOCKED indicator may be invalid for monochrome signals over greater than ~4800 feet. The device will

still equalize properly if this occurs.

Digital Input. Freezes equalizer in its current EQ state.

0: Continuous Update

1: Freeze EQ in current state.

For stand-alone operations, connect FREEZE to the LOCKED pin to enter the recommended Lock Until Reset mode.

Tie this pin low if unused.

COLOR

INVERT

LOCKED

FREEZE

SERIAL INTERFACE

POWER

DD1

+5V power supply for analog equalizer. Isolate from +5V source with a ferrite bead and bypass to ground with a 0.1µF

capacitor in parallel with a 4.7µF capacitor.

SEN

SCK

Digital Input. Serial Interface Enable. This pin should be tied to ground when not in use.

Digital Input. Serial Interface Clock Signal. This pin should be tied to ground when not in use.

Digital I/O. Serial Interface Data Signal. This pin should be tied to ground when not in use.

FN6739 Rev.3.00

May 22, 2019

Page 3 of 29

ISL59601, ISL59602, ISL59603, ISL59604, ISL59605

Table of Contents

Absolute Maximum Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Thermal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Serial Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Serial Timing Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Typical Performance Over 1000 Feet of Cat 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Typical Performance Over 2000 Feet of Cat 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Typical Performance Over 3000 Feet of Cat 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Typical Performance Over 4000 Feet of Cat 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Typical Performance Over 5200 Feet of Cat 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Typical Performance Over 1000 Feet of Copper-Core RG-59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Typical Performance Over 2000 Feet of Copper-Core RG-59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Typical Performance Over 3000 Feet of Copper-Core RG-59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Typical Performance Over 4000 Feet of Copper-Core RG-59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Typical Performance Over 5000 Feet of Copper-Core RG-59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Typical Performance Over 6000 Feet of Copper-Core RG-59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

MegaQ™ Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Equalization for Various Cable Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Application Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Unshielded Twisted Pair (UTP) App Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Coax Input Circuit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Dual UTP/Coax Input Circuit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Input Multiplexing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Stand-Alone Operation and Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Lock Until RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Continuous Update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Polarity Detection and Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

The COLOR Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Monochrome Video Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Security Cameras. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Additional Equalization Modes Available With the Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Lock Until RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Lock Until Signal Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Manual Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Serial Interface Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Write Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Read Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Register Listing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Bypassing and Layout Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

General PowerPAD Design Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Package Outline Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

FN6739 Rev.3.00

May 22, 2019

Page 5 of 29

ISL59603IRZ-T7A Related Products

	ISL59603IRZ-T7A	ISL59605IRZ	ISL59605IRZ-T7A	ISL59603IRZ	ISL59601IRZ-T7A	ISL59601IRZ
Description	MegaQ™: An Automatic Composite Video Equalizer, Fully-Adaptive to 1 Mile (1600m); QFN20; Temp Range: -40° to 85°C	MegaQ™: An Automatic Composite Video Equalizer, Fully-Adaptive to 1 Mile (1600m); QFN20; Temp Range: -40° to 85°C	MegaQ™: An Automatic Composite Video Equalizer, Fully-Adaptive to 1 Mile (1600m); QFN20; Temp Range: -40° to 85°C	MegaQ™: An Automatic Composite Video Equalizer, Fully-Adaptive to 1 Mile (1600m); QFN20; Temp Range: -40° to 85°C	MegaQ™: An Automatic Composite Video Equalizer, Fully-Adaptive to 1 Mile (1600m); QFN20; Temp Range: -40° to 85°C	MegaQ™: An Automatic Composite Video Equalizer, Fully-Adaptive to 1 Mile (1600m); QFN20; Temp Range: -40° to 85°C
Brand Name	Intersil	Intersil	Intersil	Intersil	Intersil	Intersil
Parts packaging code	QFN	QFN	QFN	QFN	QFN	QFN
package instruction	HVQCCN, LCC20,.16SQ,20	HVQCCN, LCC20,.16SQ,20	HVQCCN, LCC20,.16SQ,20	HVQCCN, LCC20,.16SQ,20	HVQCCN, LCC20,.16SQ,20	HVQCCN, LCC20,.16SQ,20
Contacts	20	20	20	20	20	20
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	S-PQCC-N20	S-PQCC-N20	S-PQCC-N20	S-PQCC-N20	S-PQCC-N20	S-PQCC-N20
JESD-609 code	e3	e3	e3	e3	e3	e3
length	4 mm	4 mm	4 mm	4 mm	4 mm	4 mm
Humidity sensitivity level	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	HVQCCN	HVQCCN	HVQCCN	HVQCCN	HVQCCN	HVQCCN
Encapsulate equivalent code	LCC20,.16SQ,20	LCC20,.16SQ,20	LCC20,.16SQ,20	LCC20,.16SQ,20	LCC20,.16SQ,20	LCC20,.16SQ,20
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm
Maximum slew rate	60 mA	60 mA	60 mA	60 mA	60 mA	60 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
surface mount	YES	YES	YES	YES	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	30	NOT SPECIFIED	30	NOT SPECIFIED	30
width	4 mm	4 mm	4 mm	4 mm	4 mm	4 mm
Factory Lead Time	5 weeks	5 weeks	3 weeks	5 weeks	4 weeks	-
Base Number Matches	-	1	1	1	1	1

Recommended Resources

Fully automatic multi-purpose intelligent lighting circuit design

Frequency sensitive rheostat automatic forward and reverse starting circuit

RTS721/RTS731 circuit-b

High definition! Electric bicycle circuit diagram brushless dedicated chip MC33035

Improved single-stage PFC conversion circuit

Telephone Busy Indicator Circuit 2

ST Motor Kit Review: Due to personal reasons, I received the kit late. Thanks for the support of the forum. 1. Build the hardware system, the power supply mode is E5V, and select 3 resistor sampling...; wangxuewei stm32/stm8

Is there anyone who has ever tried to obtain AC synchronization signals?: I need to make an LED control solution now, and need to sample the AC signal for synchronous processing. I wonder if any friends can provide specific ideas...; yhen Embedded System

Touching fish and water: The fish said: "You can't see the tears in my eyes, because I am in the water." The water said: "I can feel your tears, because you are in my heart." These two lines are very classic, almost everyone ...; lixiaohai8211 Talking

Anti-interference voice-activated switch circuit diagram: As shown in the figure, this is an anti-interference voice-controlled switch circuit. The circuit consists of a microphone S, a frequency-selective amplifier, a monostable shaping circuit IC1, signal ...; 探路者 Mobile and portable

Questions about VCA822: Regarding the processing of VCA822, I am now working on this module and I am so sad! I changed the diagrams one after another. At the beginning, it got hot when powered on. After solving it, some mega...; ywlzh Electronics Design Contest

Which CDMA module is better? Which one is cheaper?: The boss is going to buy a CDMA Modem to send text messages....; 13802373669 Embedded System

Shortcut: E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components
