420VXW39MKC12.5X35 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 420VXW39MKC12.5X35

420VXW39MKC12.5X35: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 420V, 39uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size64KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

420VXW39MKC12.5X35 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 420V, 39uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

420VXW39MKC12.5X35 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	39 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.38395 mA
Manufacturer's serial number	VXW
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	420 V
ripple current	310 mA
surface mount	NO
Delta tangent	0.2
Terminal surface	Tin (Sn)
Terminal shape	WIRE

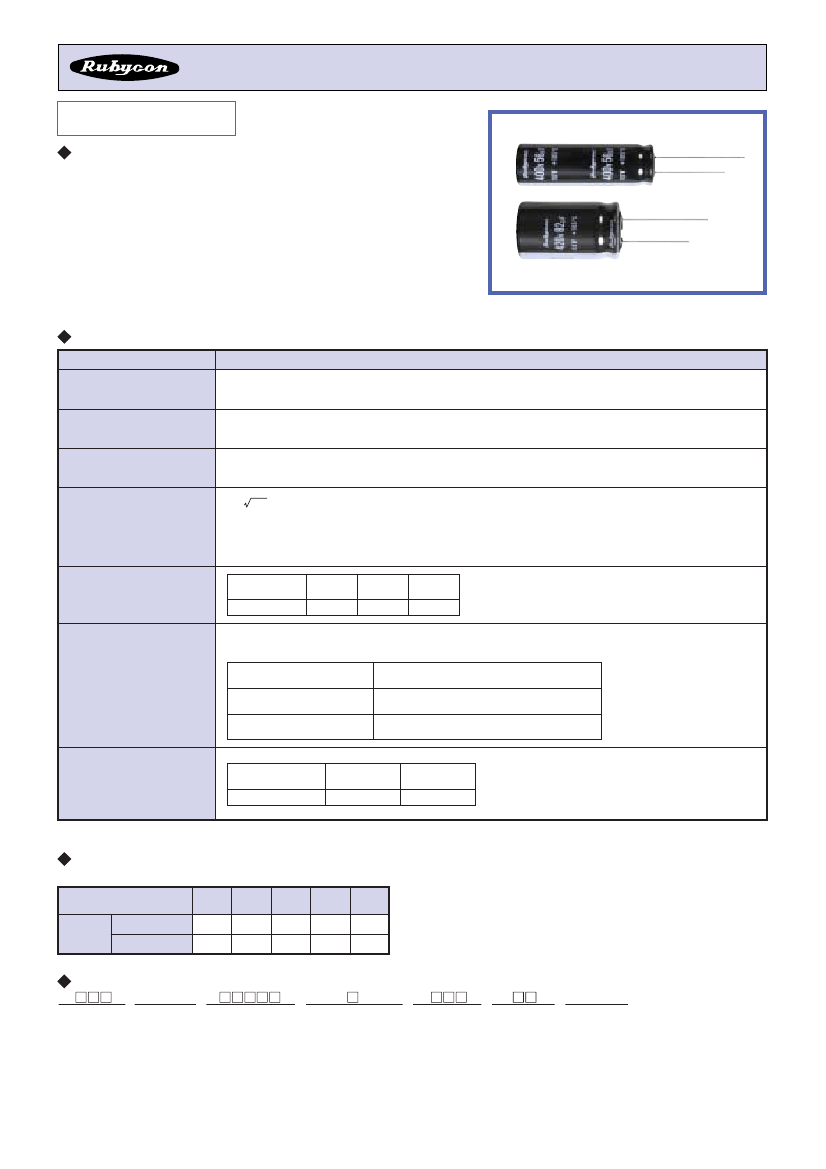

420VXW39MKC12.5X35 Preview

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

VXW

SERIES

FEATURES

•

Load Life : 105

C 10000 hours.

•

Body diameter of

φ12.5mm

φ18mm

with high ripple current capability.

•

Longer life than the current AXW series.

•

RoHS compliance.

SPECIFICATIONS

Items

Category Temperature Range

Characteristics

-25

∼

+105

200

•

400

•

420

•

450V.DC

- 20%(20

C,120Hz)

I=3

(After 5 minutes application of rated voltage)

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

Leakage Current

(µA)

Rated Voltage

(V)

tanδ

Rated Capacitance

(µF)

Rated Voltage

(V)

(20

C,120Hz)

Dissipation Factor(MAX)

(tanδ)

200

0.15

400

0.15

420

∼

450

0.20

After applying rated voltage with rated ripple current for 10000hrs at 105

C, the capacitors shall meet the following requirements.

Within - 20% of the initial value.

Not more than 200%of the specified value.

Not more than the specified value.

Capacitance Change

Endurance

Dissipation Factor

Leakage Current

Impedance Ratio(MAX)

Rated Voltage

(V)

C) /Z(20

200

400

∼

450

(120Hz)

MULTIPLIER FOR RIPPLE CURRENT

Frequency coefficient

Frequency

(Hz)

60(50) 120

0.8

1.0

500

1.20

1.25

1.30

1.40

10k <

1.40

1.50

Coefficient

200WV

400∼450WV

PART NUMBER

VXW

Rated Voltage

Series

Rated Capacitance

Capacitance Tolerance

Option

Lead Forming

D×L

Case Size

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

VXW

(mm)

DIMENSIONS

SLEEVE

0.5

φD

φd

12.5

0.6

5.0

0.8

7.5

2.5

L+αMAX

15MIN

4MIN

D+0.5MAX

STANDARD SIZE, RATED RIPPLE CURRENT

Cap

(µF)

120

150

180

220

270

330

390

470

φD

φ12.5

12.5

0.53

0.62

0.70

0.76

0.88

1.10

0.81

0.87

1.01

1.13

1.27

200

φ16

φ18

Cap

(µF)

100

120

150

180

φD

φ12.5

12.5

0.32

0.37

0.42

400

φ16

φ18

0.48

0.50

0.58

0.66

0.58

0.67

0.77

0.88

Cap

(µF)

100

120

12.5

0.27

0.31

0.36

φD

φ12.5

420

φ16

φ18

φ12.5

12.5

0.25

0.28

0.32

450

φ16

φ18

0.43

0.51

0.57

0.51

0.57

0.61

0.66

0.38

0.44

0.49

0.48

0.55

0.65

0.74

Please check with us about individual WV, Cap., size and dimensions.

Size

φD

L(mm)

Ripple Current (A r.m.s./105

C, 120Hz)

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
