DB3502 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DB3502

DB3502: DescriptionBridge Rectifier Diode, Avalanche, 1 Phase, 35A, 200V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size95KB，2 Pages; ManufacturerDiotec Electronics Corp; Environmental Compliance

Download Datasheet Parametric Compare View All

DB3502 Overview

Bridge Rectifier Diode, Avalanche, 1 Phase, 35A, 200V V(RRM), Silicon

DB3502 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Diotec Electronics Corp
package instruction	S-PUFM-W4
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JESD-30 code	S-PUFM-W4
Maximum non-repetitive peak forward current	400 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	125 °C
Maximum output current	35 A
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	UPPER

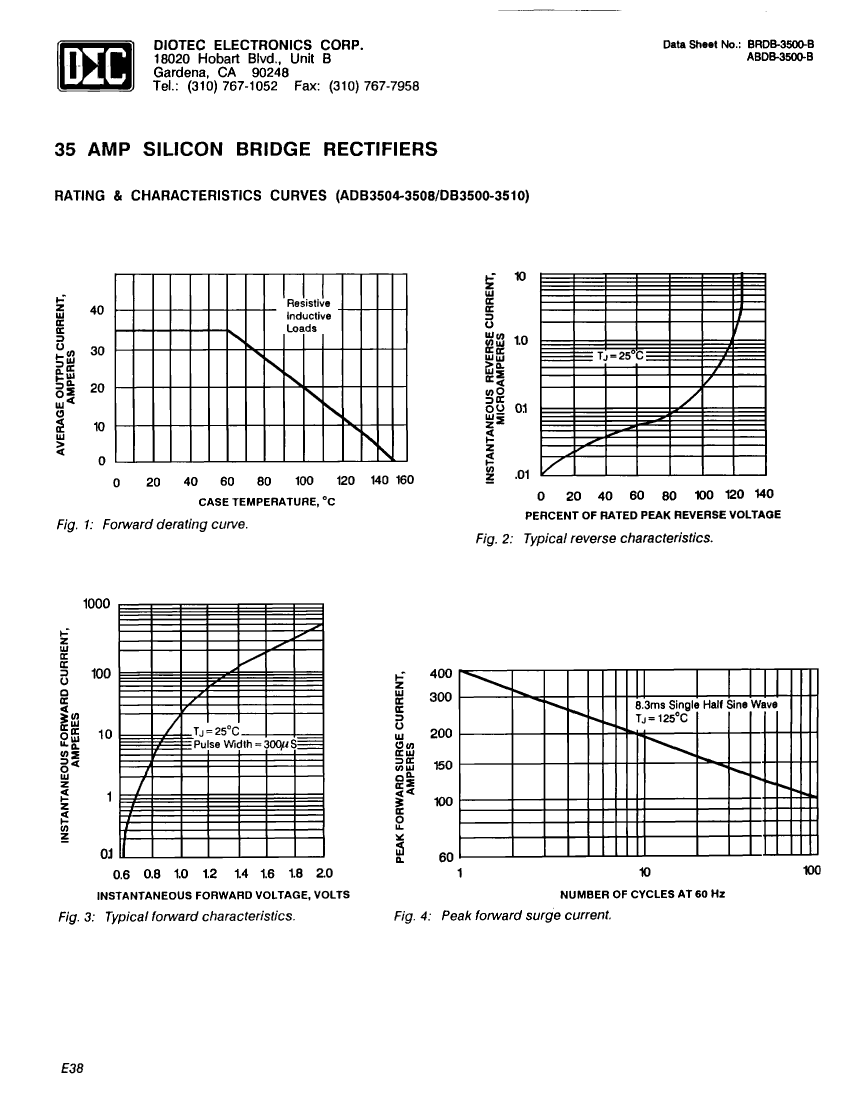

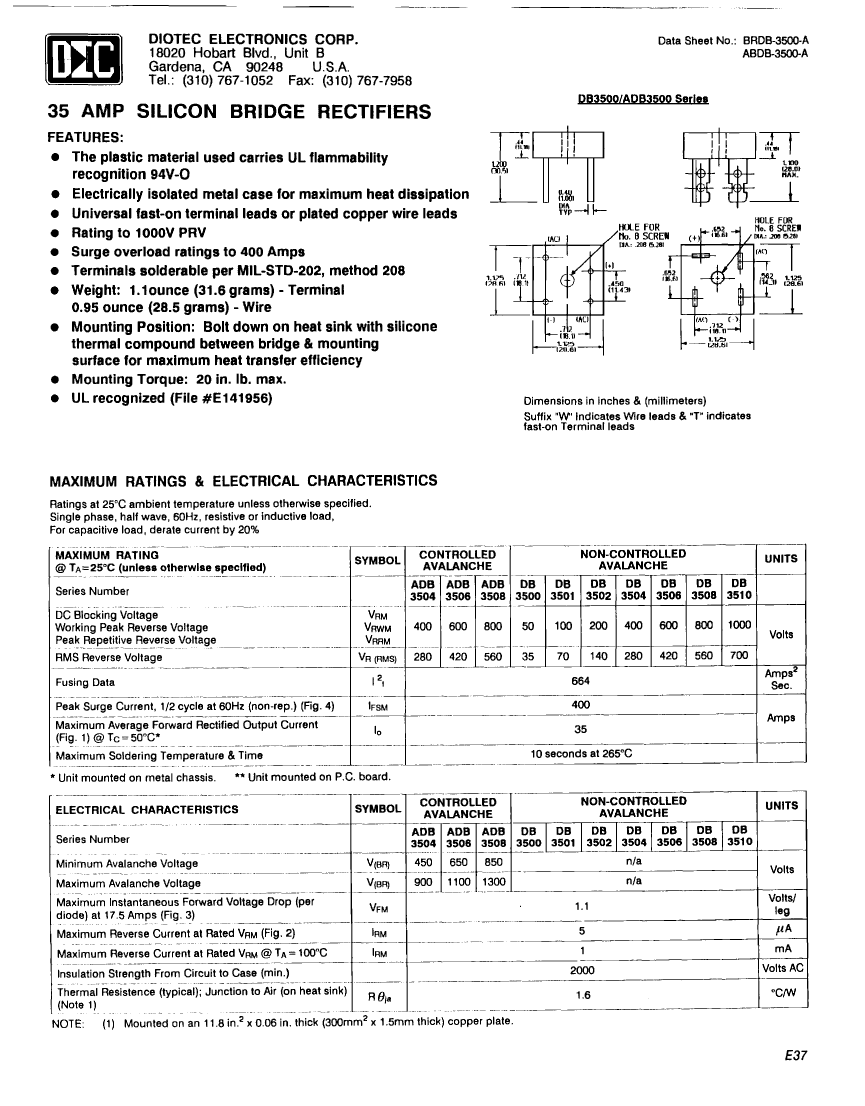

Preview

Download Datasheet

View All

DB3502 Related Products

	DB3502	ADB3506	DB3504	ADB3504	DB3510	DB3506	DB3501	DB3500	DB3508	ADB3508
Description	Bridge Rectifier Diode, Avalanche, 1 Phase, 35A, 200V V(RRM), Silicon	Bridge Rectifier Diode, Avalanche, 1 Phase, 35A, 600V V(RRM), Silicon	Bridge Rectifier Diode, Avalanche, 1 Phase, 35A, 400V V(RRM), Silicon	Bridge Rectifier Diode, Avalanche, 1 Phase, 35A, 400V V(RRM), Silicon	Bridge Rectifier Diode, Avalanche, 1 Phase, 35A, 1000V V(RRM), Silicon	Bridge Rectifier Diode, Avalanche, 1 Phase, 35A, 600V V(RRM), Silicon	Bridge Rectifier Diode, Avalanche, 1 Phase, 35A, 100V V(RRM), Silicon	Bridge Rectifier Diode, Avalanche, 1 Phase, 35A, 50V V(RRM), Silicon	Bridge Rectifier Diode, Avalanche, 1 Phase, 35A, 800V V(RRM), Silicon	Bridge Rectifier Diode, Avalanche, 1 Phase, 35A, 800V V(RRM), Silicon
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4
Maximum non-repetitive peak forward current	400 A	400 A	400 A	400 A	400 A	400 A	400 A	400 A	400 A	400 A
Number of components	4	4	4	4	4	4	4	4	4	4
Phase	1	1	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4	4	4
Maximum output current	35 A	35 A	35 A	35 A	35 A	35 A	35 A	35 A	35 A	35 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	600 V	400 V	400 V	1000 V	600 V	100 V	50 V	800 V	800 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maker	Diotec Electronics Corp	-	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp
Maximum forward voltage (VF)	1.2 V	-	1.2 V	-	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	-
Maximum operating temperature	125 °C	-	125 °C	-	125 °C	125 °C	125 °C	125 °C	125 °C	-
