ATS-49-RFREQ4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> ATS-49-RFREQ4

ATS-49-RFREQ4: DescriptionParallel - Fundamental Quartz Crystal, 6MHz Min, 9.999MHz Max, ROHS COMPLIANT, HERMETIC PACKAGE-2; CategoryPassive components Crystal/resonator; File Size274KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

ATS-49-RFREQ4 Overview

Parallel - Fundamental Quartz Crystal, 6MHz Min, 9.999MHz Max, ROHS COMPLIANT, HERMETIC PACKAGE-2

ATS-49-RFREQ4 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	MtronPTI
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	AT CUT CRYSTAL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.005%
frequency tolerance	30 ppm
JESD-609 code	e1
load capacitance	18 pF
Manufacturer's serial number	ATS-49
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	9.999 MHz
Minimum operating frequency	6 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L11.05XB4.65XH3.5 (mm)/L0.435XB0.183XH0.138 (inch)
Series resistance	100 Ω
surface mount	NO
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)

Preview

Download Datasheet

View All

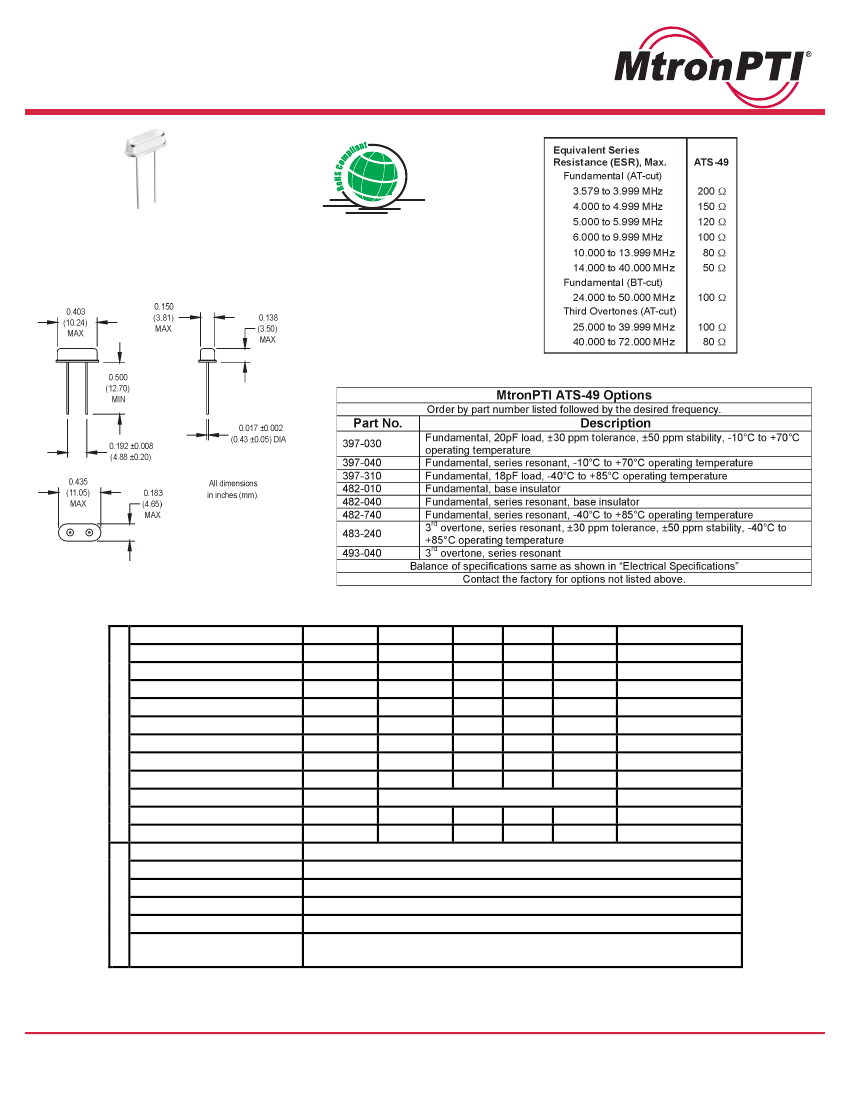

ATS-49 Crystals

*ATS-49 00.0000 MHz

(customer specified)

*ATS-49-R 00.0000 MHz

(RoHS Compliant and customer specified frequency )

M1004Sxxx - Contact factory for datasheet.

PARAMETER

Frequency Range

Frequency Tolerance

Frequency Stability

Operating Temperature

Storage Temperature

Aging Per Year

Load Capacitance

Shunt Capacitance

ESR

Drive Level

Insulation Resistance

Mechanical Shock

Vibration

Thermal Cycle

Hermeticity

Solderability

Max Wave Soldering

Conditions

Electrical Specifications

Symbol

F/F

F/F

Min.

3.579545

-30

-50

-10

-55

Typ.

±5

Max.

+30

+50

+70

+125

±5

Units

MHz

ppm

Condition/Notes

See Note 1

Environmental

W

500

MOhms

MIL-STD-202, Method 213, C

(100 g’s)

MIL-STD-202, Method 201 & 204

(10 g’s from 10-2000 Hz)

MIL-STD-883, Method 1010, B

(-55°C to 125°C, 15 min dwell, 10 cycles)

MIL-STD-202, Method 112

(must meet 1 x 10-8)

Per EIAJ-STD-002

+260° for 10 secs. Max.

See ESR Table

100

500

See Note 2

Note 1: BT cut fundamentals from 24.000 to 40.000 MHz have a stability of ±100 ppm

Note 2: Series resonant designated “SR” prefix (i.e., SRATS-49)

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision:11-18-10
