KUSBX-BSFS1N-W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> KUSBX-BSFS1N-W

KUSBX-BSFS1N-W: DescriptionTelecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size248KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

KUSBX-BSFS1N-W Overview

Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle,

KUSBX-BSFS1N-W Parametric

Parameter Name	Attribute value
Maker	Kycon
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
Board mount options	SOLDERABLE RETENTION CLIPS
body width	0.431 inch
subject depth	0.639 inch
body length	0.476 inch
Body/casing type	RECEPTACLE
Connector type	USB CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	USB, SER B SQ
Dielectric withstand voltage	750VAC V
maximum insertion force	8.896 N
Insulation resistance	1000000000 Ω
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Terminal length	0.118 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	4
Evacuation force-minimum value	2.502 N

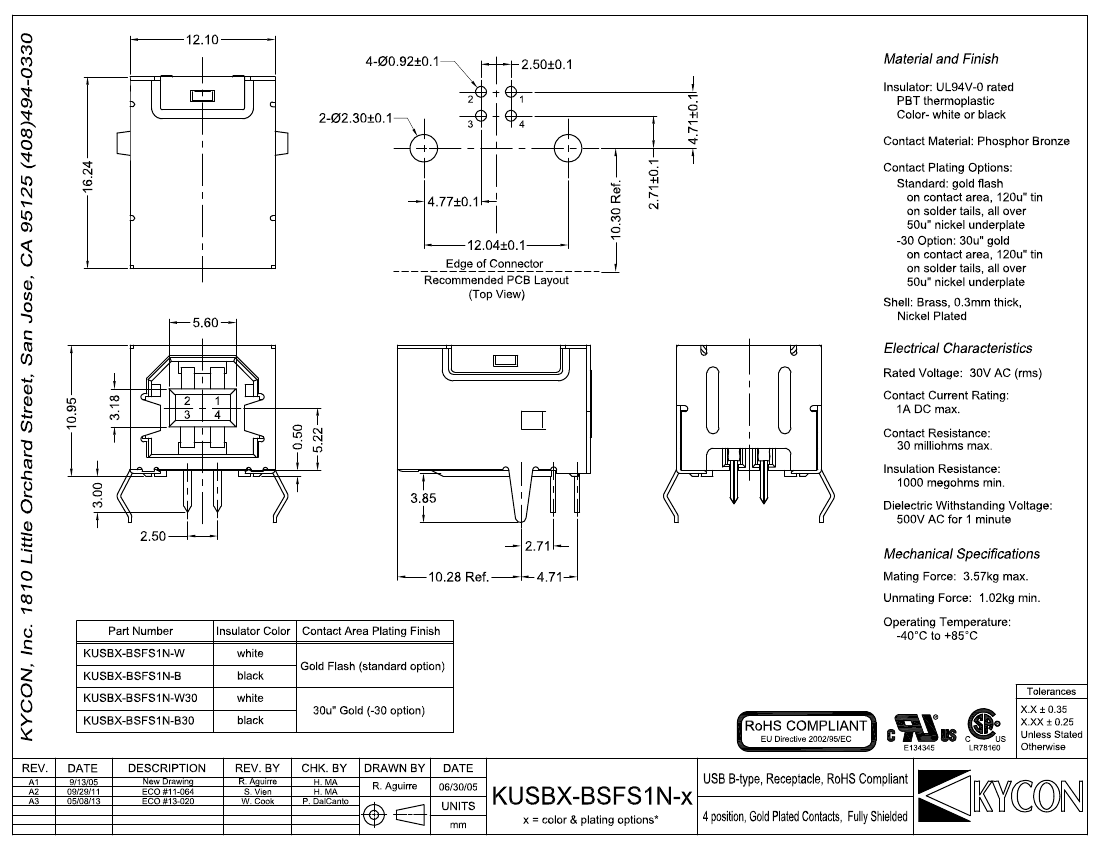

KUSBX-BSFS1N-W Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

KUSBX-BSFS1N-W Related Products

	KUSBX-BSFS1N-W	KUSBX-BSFS1N-B	KUSBX-BSFS1N-W30
Description	Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle,	Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle,	Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle,
Maker	Kycon	Kycon	Kycon
Reach Compliance Code	compliant	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Board mount options	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS
body width	0.431 inch	0.431 inch	0.431 inch
subject depth	0.639 inch	0.639 inch	0.639 inch
body length	0.476 inch	0.476 inch	0.476 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	30 mΩ	30 mΩ	30 mΩ
Contact style	USB, SER B SQ	USB, SER B SQ	USB, SER B SQ
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V
maximum insertion force	8.896 N	8.896 N	8.896 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of ports	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	FLASH inch	FLASH inch	30u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A
Guideline	CSA, UL	CSA, UL	CSA, UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL
Shell material	BRASS	BRASS	BRASS
Terminal length	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	2.4892 mm	2.4892 mm	2.4892 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	4	4	4
Evacuation force-minimum value	2.502 N	2.502 N	2.502 N
ECCN code	-	EAR99	EAR99
