22-55-3221 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 22-55-3221

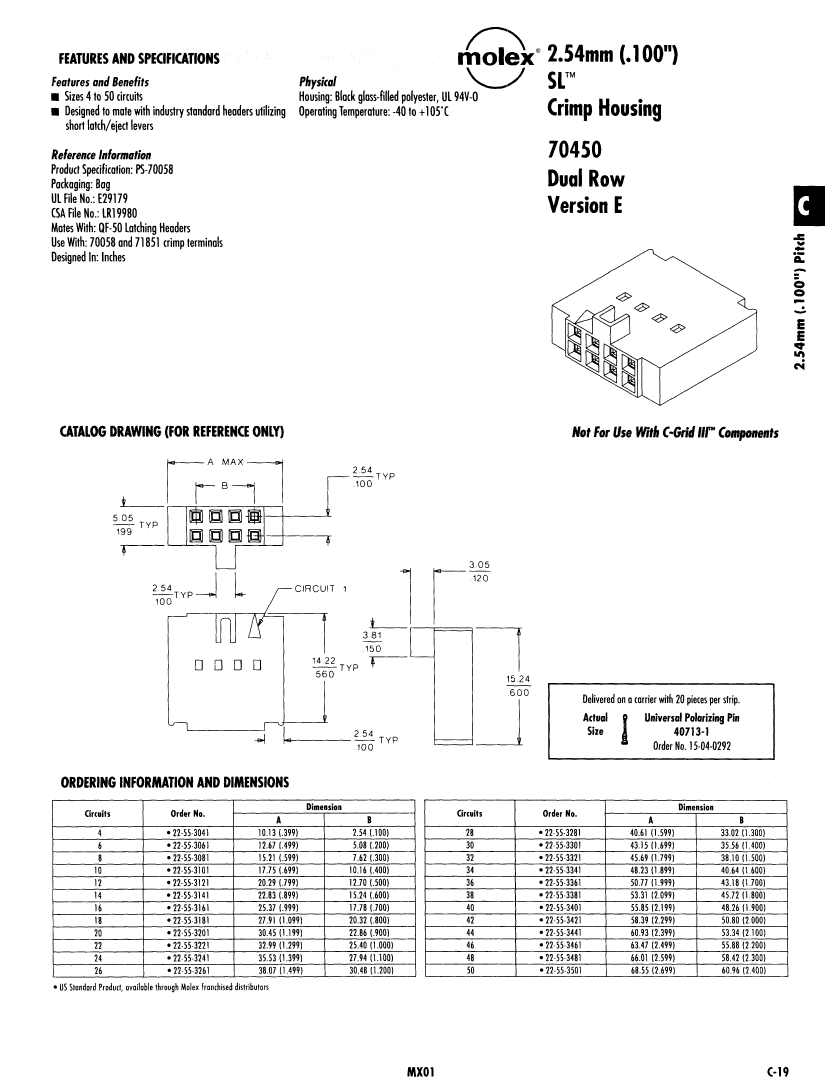

22-55-3221: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking Mech, Black Insulator, Plug; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

22-55-3221 Overview

Board Connector, 22 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking Mech, Black Insulator, Plug

22-55-3221 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	SL, COMPATIBLE CONTACTS: 16-02-0088; 16-02-0104; 16-02-1111, POLARIZED
body width	0.319 inch
subject depth	0.6 inch
body length	1.299 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	70450
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	120 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLAR PIN POSITION
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	22
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

22-55-3221 Related Products

	22-55-3221	22-55-3381	22-55-3441	22-55-3461
Description	Board Connector, 22 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking Mech, Black Insulator, Plug	Board Connector, 38 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking Mech, Black Insulator, Plug	Board Connector, 44 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking Mech, Black Insulator, Plug	Board Connector, 46 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking Mech, Black Insulator, Plug
Reach Compliance Code	unknow	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	SL, COMPATIBLE CONTACTS: 16-02-0088; 16-02-0104; 16-02-1111, POLARIZED	SL, COMPATIBLE CONTACTS: 16-02-0088; 16-02-0104; 16-02-1111, POLARIZED	SL, COMPATIBLE CONTACTS: 16-02-0088; 16-02-0104; 16-02-1111, POLARIZED	SL, COMPATIBLE CONTACTS: 16-02-0088; 16-02-0104; 16-02-1111, POLARIZED
body width	0.319 inch	0.319 inch	0.319 inch	0.319 inch
subject depth	0.6 inch	0.6 inch	0.6 inch	0.6 inch
body length	1.299 inch	2.099 inch	2.399 inch	2.499 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	70450	70450	70450	70450
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation option 1	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH
Installation type	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2
Maximum operating temperature	120 °C	120 °C	120 °C	120 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
polarization key	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	22	38	44	46
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1
