L2N7002KWT3G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> L2N7002KWT3G

L2N7002KWT3G: DescriptionSmall Signal Field-Effect Transistor,; CategoryDiscrete semiconductor The transistor; File Size500KB，6 Pages; ManufacturerLRC; Websitehttp://www.lrc.cn; Environmental Compliance

Download Datasheet Parametric View All

L2N7002KWT3G Overview

Small Signal Field-Effect Transistor,

L2N7002KWT3G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	LRC
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	60 V
Maximum drain current (ID)	0.32 A
Maximum drain-source on-resistance	2.3 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
surface mount	YES
Terminal surface	NOT APPLICABLE
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON

Preview

Download Datasheet

View All

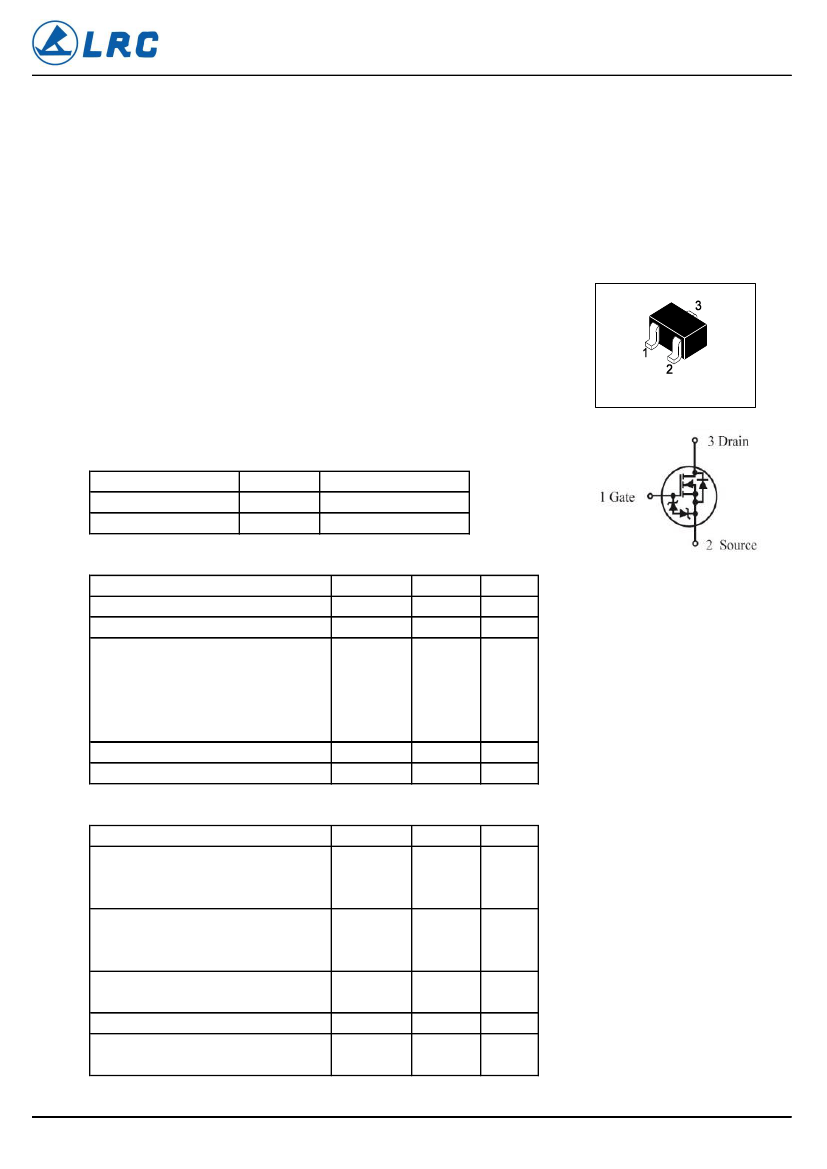

L2N7002KWT1G

S-L2N7002KWT1G

Small Signal MOSFET

380 mAmps, 60 Volts N–Channel SC-70

1. FEATURES

●

We declare that the material of product compliance with

RoHS requirements and Halogen Free.

S- prefix for automotive and other applications requiring

unique site and control change requirements; AEC-Q101

qualified and PPAP capable.

●

SC70(SOT-323)

●

ESD Protected

2. DEVICE MARKING AND ORDERING INFORMATION

Device

L2N7002KWT1G

L2N7002KWT3G

Marking

Shipping

3000/Tape&Reel

10000/Tape&Reel

3. MAXIMUM RATINGS(Ta = 25º

Parameter

Drain–Source Voltage

Gate-Source Voltage

Drain Current

– Steady State TA = 25°

TA = 85°

– t<5s

TA = 25°

TA = 85°

Pulsed Drain Current (tp=10μs)

Source Current (Body Diode)

IDM

Symbol

VDSS

VGS

320

230

380

270

1.5

300

Limits

±20

Unit

Vdc

mAdc

4. THERMAL CHARACTERISTICS

Parameter

Total Device Dissipation(Note 1)

– Steady State

– t<5s

Junction−to−Ambient(Note 1)

– Steady State

– t<5s

Lead Temperature for Soldering

Purposes (1/8 " from case for 10 s)

Junction and Storage temperature

Gate−Source ESD Rating(HBM,

Method 3015)

1. FR–5 = 1.0×0.75×0.062 in.

Leshan Radio Company, LTD.

Rev.E Mar 2016

1/6

Symbol

Limits

300

420

Unit

RΘJA

417

300

TJ,Tstg

ESD

260

−55∼+150

2000

C/W

ºC
