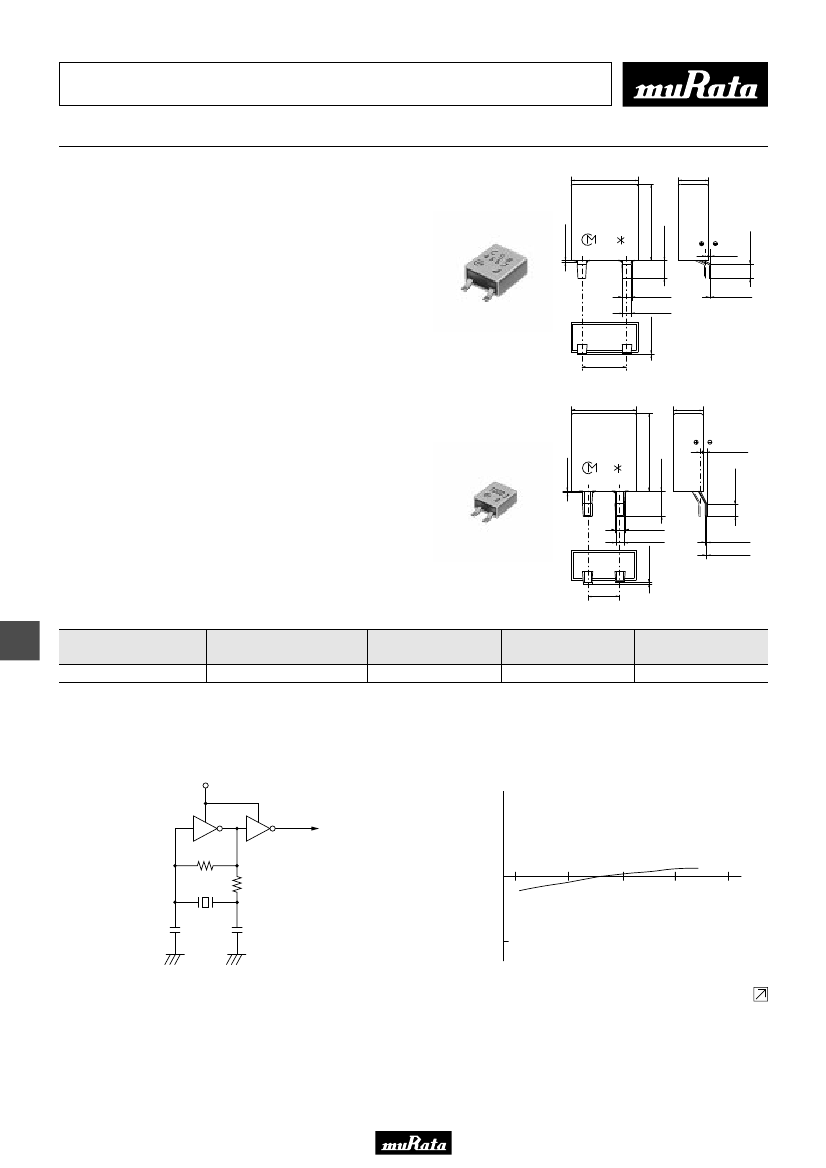

Ceramic Resonators (CERALOCKr)
kHz Chip Type -Standard Frequency Tolerance for General Usage-
7.5±0.3
3.3±0.3
MURATA's original package technologies have enabled
the development of the kHz band "CERALOCK".
The series is perfect in miniature remote control
units and AV modules.
"CERALOCK" can be reflow soldered and mounted by
automatic placers.
1.0 max.
8.5±0.3
2.0±0.5
0
-0.4
+0.1
1.1±0.1
0.9±0.1
0.15 max.
0.15±0.05
s
Features
1. The series withstands reflow soldering.
2. The series is mountable by automatic placers.
3. No adjustment is necessary for oscillation circuits.
CSBFB_J
430-519kHz
5.0±0.2
∗
: EIAJ code
(in mm)
s
Applications
1. Clock oscillators for microprocessors
2. OA equipment
3. AV modules
5.0±0.3
2.3±0.2
6.0±0.3
+0.1
0
−0.4
1.0 max.
2.0±0.5
0.8±0.2
0.7±0.2
0.15 max.
0.15±0.05
0.10±0.03
∗
: EIAJ code
(in mm)
CSBFB_J
700-1250kHz
2.5±0.2
6
Part Number
CSBFB_J
Oscillating Frequency
(kHz)
430 to 519, 700 to 1250
Initial Tolerance
±0.5%
Temp. Stability
(%)
±0.3
Temperature Range
(°C)
-20 to 80
Irregular or stop oscillation may occur under unmatched circuit conditions. Please check the actual conditions prior to use.
s
Oscillation Frequency Measuring Circuit
VDD
s
Oscillation Frequency Temperature Stability
W0.5
Oscillating Frequency Shift (%)
Rf
To Frequency counter
0
Y40
0
40
80
120
Temperature (˚C)
Rd
CL1
CL2
Y0.5
Continued on the following page.
30
1.0±0.3
1.0±0.5
!Note
• This PDF catalog is downloadedand
!CAUTION
(forMurata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our
!Note
• Please read rating from the website of storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
sales representatives or product engineers before ordering.
• This catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
P16E.pdf
08.3.3
Continued from the preceding page.
s
Standard Land Pattern Dimensions
CSBFB_J (430-519kHz)
CSBFB_J (700-1250kHz)
2.0
0.5
1.7
3.3
1.7
1.5
1.0
(in mm)
1.5
3.0
0.5
(in mm)
6
31
