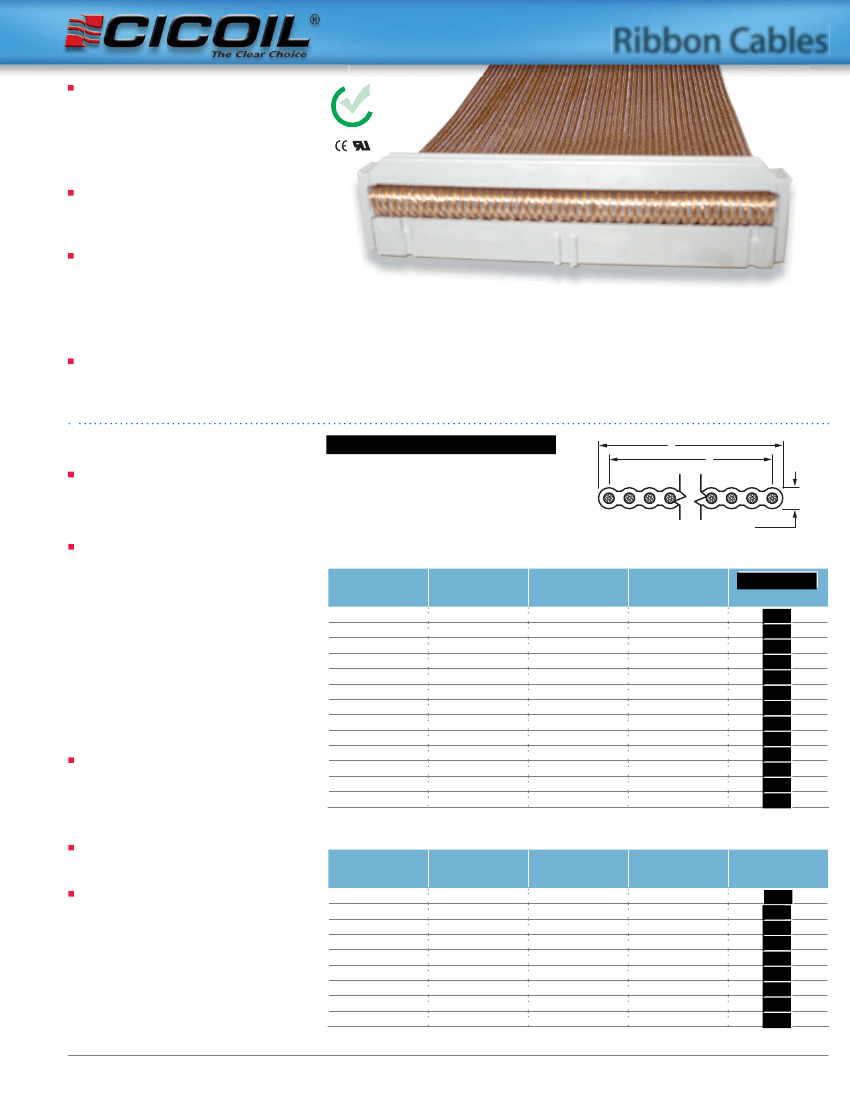

Ribbon Cables
Flexibility
Ultra Flex, tinned copper wire conductors, and
flexible silicone make Cicoil’s ribbon cables
highly flexible, with a bend radius as small as 0.4
inches in flexing applications. Also the cables can
be ‘folded over’ for static applications.
LEAD
COMPLIANT
SM
RoHS
CICOIL
FREE
Long Life
Rated for millions of cycles in
flexing applications.
Extreme Environments
Silicone rubber cables operate from -65°C to
260°C, including exposure to water, steam, salt,
and most chemicals. The cables are ideal for
clean room use, and they can also be used in
vacuum environments.
Fire Resistant
Cables are fire resistant, as they meet the UL-94
vertical flame standard, as well as other fire
standards.
Cicoil’s ribbon cables are constructed using Ultra High Flex 28 AWG, finely stranded
wire, and our exclusive silicone extrusion process for a strong, flexible, clear cable. Our
ribbon cables meet the standard ribbon cable dimensions, and they can be used with
any standard Insulation Displacement Connectors (IDC). The wire spacing (‘pitch’) is set
at .050” for the English version, or 1mm for the metric version.
Specifications
Electrical
Insulation Resistance:
200 megΩ @ 500Vdc
Dielectric Strength:
450 volts/mil (17.7KV/mm)
Dielectric Constant:
2.8 (nominal)
Specify Ribbon Cables by Part Number and
Length in feet. Ribbon Cables are maintained
in stock for immediate delivery. Cable with
prepared ends or assemblies with connectors
are produced to order with minimum lead times.
A
B
Environmental
Temperature Rating:
-65°C to 260°C
Moisture Rating:
Submersible
Vacuum Rating:
5 x 10
-5
torr
Å
Outgassing:
0.24 %TML, 0.02 %CVCM
Ç
Radiation:
10
7
Roentgens (exposure)
Acid Resistance:
Good
Ozone Resistance:
Outstanding
Oil Resistance:
Good
Flame Resistance:
Good
Water/Steam Resistance:
Excellent (Including
salt and DIW)
Alcohol Resistance:
Good
Toxins:
Halogen-free
.050” Pitch
No. of
Conductors
10
14
16
20
26
28
30
34
40
44
50
60
64
Thickness
.035” for .050” Pitch
.94mm for 1mm Pitch
Width
(A)-inches
0.50
0.70
0.80
1.00
1.30
1.40
1.50
1.70
2.00
2.20
2.50
3.00
3.20
Span
(B)-inches
0.45
0.65
0.75
0.95
1.25
1.35
1.45
1.65
1.95
2.15
2.45
2.95
3.15
Part Number
310J101-10
310J101-14
310J101-16
310J101-20
310J101-26
310J101-28
310J101-30
310J101-34
310J101-40
310J101-44
310J101-50
310J101-60
310J101-64
Mechanical
Minimum Bend Radius:
0.4”
Durometer Rating:
Shore A, 65
Tensile Strength:
6.5 Mpa (psi)
Tear Strength:
18 kN/m
1mm Pitch
Approvals
UL Recognized—File #E324413, CE
No. of
Conductors
10
16
20
26
30
34
40
44
50
Width
(A)-mm
10.00
16.00
20.00
26.00
30.00
34.00
40.00
44.00
50.00
Span
(B)-mm
9.00
15.00
19.00
25.00
29.00
33.00
39.00
43.00
49.00
Part Number
666K101-10
666K101-16
666K101-20
666K101-26
666K101-30
666K101-34
666K101-40
666K101-44
666K101-50
Price per Foot
Notes
1. Cicoil cable can exceed this rating when
specified
2. Cicoil outgassed cables are NASA rated for
space applications (NASA Outgassing spec
1124)
Specifications are nominal
Specifications and Pricing are subject to change
ISO/AS9100 Certified
#0300 4/10 2.5M
