Model 5056 & Assembly Instructions
Triaxial Male 2 Lug Connector to Cable
FEATURES:
•
Fits Belden triaxial 9222 .242” O.D.
MATERIALS:
Body and Fittings: Brass, Tarnish Resistant Plating
Center Contact: Male: Brass, Tarnish Resistant Plating
Female: Gold Plated Beryllium Copper
Outer Contact: Gold Plated Beryllium Copper
Dielectric: PTFE
RATINGS:
Voltage: 500 VRMS
Impedence: 50Ohms
Temperature: -65Û
Frequency Range: DC to 500MHz
ORDERING INFORMATION:
Model 5056
All dimensions are in inches and metric. All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
Sales: 800-490-2361 Fax: 888-403-3360 Technical Assistance: 800-241-2060
Rev: 5056_2_02.Doc
Date: 7/23/2002
www.pomonaelectronics.com
Page 1 of 2
Model 5056 & Assembly Instructions
Triaxial Male 2 Lug Connector to Cable

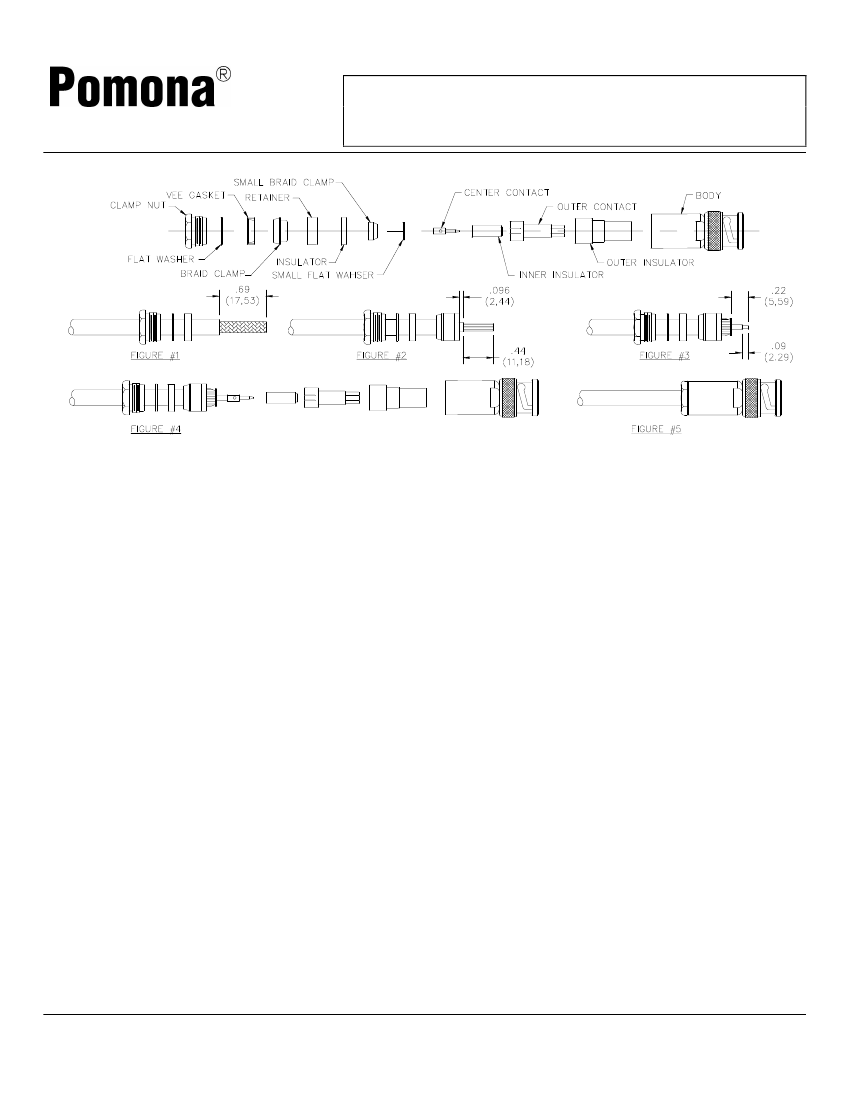

FIGURE #1
A. Slide clamp nut, flat washer and Vee gasket over cable.
B. Strip outer jacket or cable.
FIGURE #2
C. Comb braid forward.
D. Slide braid clamp over braid and against outer cable jacket. Fold braid back over braid clamp, trim even
with base of braid clamp.
E. Assemble retainer and insulator over inner jacket.
F. Trim inner jacket.
FIGURE #3
G. Place small braid clamp over inner braid and against inner jacket, comb out inner braid and fold inner braid
back over small braid clamp, trim inner braid even with base of small braid clamp.
H. Assemble washer over dielectric again inner braid.
I. Trim inner dielectric and center conductor.
FIGURE #4
J. Solder center contact to center conductor.
K. Place inner insulator, outer contact and outer insulator over center contact and insert into body.
L. Slide clamp nut, washer and Vee gasket forward, thread assembly into body and tighten.
FIGURE #5
Completed assembly shown.
