SS26R4G: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 60V V(RRM), Silicon, DO-214AA, GREEN, PLASTIC, SMB, 2 PIN; CategoryDiscrete semiconductor diode; File Size209KB，4 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric View All

SS26R4G Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 60V V(RRM), Silicon, DO-214AA, GREEN, PLASTIC, SMB, 2 PIN

SS26R4G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
package instruction	GREEN, PLASTIC, SMB, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW POWER LOSS
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.7 V
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	60 V
Maximum reverse current	400 µA
surface mount	YES
technology	SCHOTTKY
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

SS26R4G Preview

SS22 thru SS215

Taiwan Semiconductor

CREAT BY ART

FEATURES

- Low power loss, high efficiency

- Ideal for automated placement

- Guardring for overvoltage protection

- High surge current capability

- Moisture sensitivity level: level 1, per J-STD-020

- Compliant to RoHS Directive 2011/65/EU and

in accordance to WEEE 2002/96/EC

- Halogen-free according to IEC 61249-2-21 definition

Surface Mount Schottky Barrier Rectifier

MECHANICAL DATA

Case:

DO-214AA (SMB)

Molding compound, UL flammability classification rating 94V-0

Base P/N with suffix "G" on packing code - halogen-free

Base P/N with prefix "H" on packing code - AEC-Q101 qualified

Terminal:

Matte tin plated leads, solderable per JESD22-B102

Meet JESD 201 class 1A whisker test

with prefix "H" on packing code meet JESD 201 class 2 whisker test

Polarity:

Indicated by cathode band

Weight:

0.093 g (approximately)

DO-214AA (SMB)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

=25℃ unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current

Peak forward surge current, 8.3 ms single half sine-wave

superimposed on rated load

Maximum instantaneous forward voltage (Note 1)

= 2 A @ 25℃

= 2 A @ 100℃

Maximum reverse current @ rated VR

=25

℃

=100℃

=125

℃

SYMBOL

RRM

RMS

F(AV)

FSM

210

100

215

150

105

150

UNIT

0.5

0.4

0.70

0.65

0.85

0.70

0.1

0.95

0.80

dV/dt

θJL

θJA

STG

10000

V/μs

Voltage rate of change (Rated V

)

Typical thermal resistance

Operating junction temperature range

Storage temperature range

Note 1: Pulse test with PW=300μs, 1% duty cycle

C/W

- 55 to +125

- 55 to +150

Document Number: D1307005

Version: H13

SS22 thru SS215

Taiwan Semiconductor

ORDERING INFORMATION

PART NO.

AEC-Q101

QUALIFIED

SS2xx

(Note 1)

Prefix "H"

Suffix "G"

PACKING CODE

GREEN COMPOUND

CODE

SMB

850 / 7" Plastic reel

3,000 / 13" Paper reel

3,000 / 13" Plastic reel

PACKAGE

PACKING

Note 1: "xx" defines voltage from 20V (SS22) to 150V (SS215)

EXAMPLE

PREFERRED P/N

SS26 R5

SS26 R5G

SS26HR5

PART NO.

SS26

AEC-Q101

QUALIFIED

PACKING CODE

Green compound

AEC-Q101 qualified

GREEN COMPOUND

CODE

DESCRIPTION

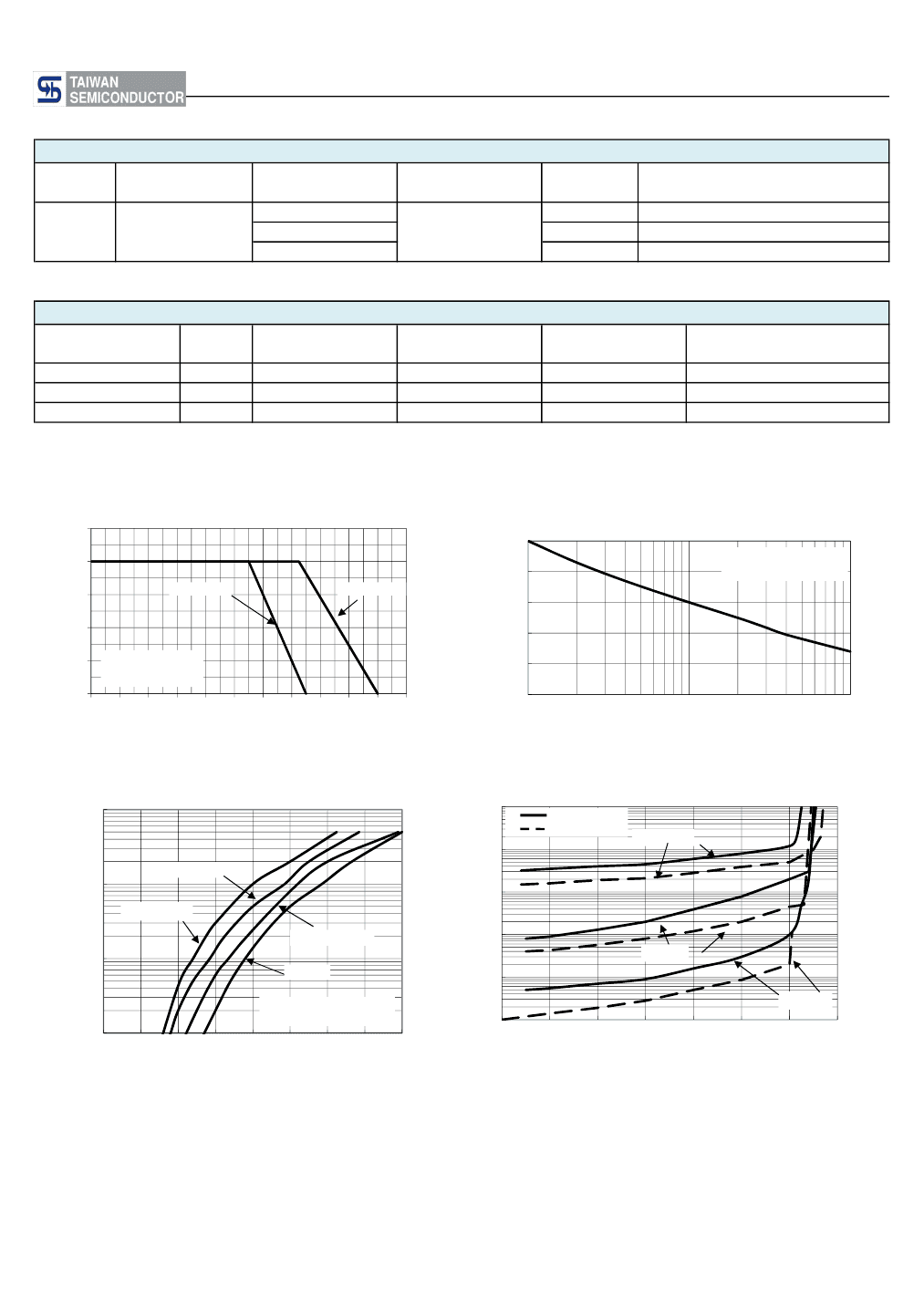

RATINGS AND CHARACTERISTICS CURVES

(TA=25℃ unless otherwise noted)

FIG.1- MAXIMUM FORWARD CURRENT DERATING

CURVE

PEAK FORWARD SURGE CURRENT

(A)

2.5

2.0

1.5

1.0

0.5

0.0

100

110

120

130

140

150

160

LEAD TEMPERATURE .(

RESISTIVE OR

INDUCTIVE LOAD

SS22-SS24

SS25-SS215

100

8.3ms Single Half Sine

Wave JEDEC Method

FIG. 2- MAXIMUM NON-REPETITIVE FORWARD

SURGE CURRENT

AVERAGE FORWARD

CURRENT (A)

NUMBER OF CYCLES AT 60 Hz

FIG. 3- TYPICAL FORWARD CHARACTERISTICS

100

FIG. 4- TYPICALREVERSE CHARACTERISTICS

SS22-SS24

SS25-SS215

INSTANTANEOUS FORWARD

CURRENT (A)

SS25-SS26

INSTANTANEOUS REVERSE

CURRENT (mA)

TJ=125℃

SS22-SS24

SS29-SS210

SS215

PULSE WIDTH=300μs

1% DUTY CYCLE

0.1

0.2

0.4

0.6

0.8

1.2

1.4

1.6

FORWARD VOLTAGE. (V)

0.1

TJ=75℃

0.01

TJ=25℃

0.001

100

120

140

PERCENT OF RATED PEAK REVERSE VOLYAGE(%)

Document Number: D1307005

Version: H13

SS22 thru SS215

Taiwan Semiconductor

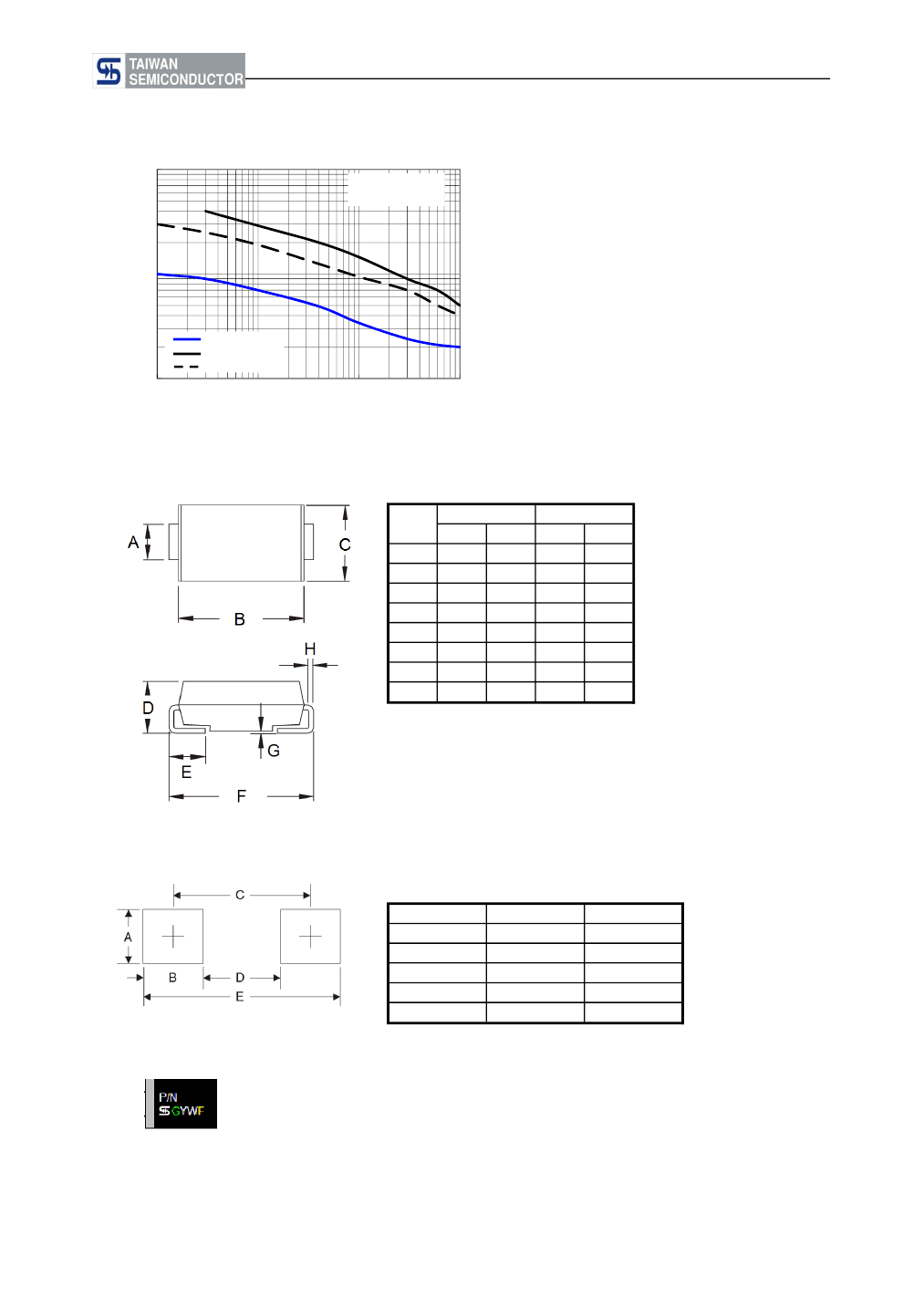

FIG. 5- TYPICAL JUNCTION CAPACITANCE

1000

f=1.0MHz

Vsig=50mVp-p

JUNCTION CAPACITANCE (pF)

100

SS29-SS215

SS22-SS24

SS25-SS26

0.1

100

REVERSE VOLTAGE (V)

PACKAGE OUTLINE DIMENSIONS

Unit (mm)

Min

1.95

4.25

3.48

1.99

0.90

5.10

0.10

0.15

Max

2.10

4.75

3.73

2.61

1.41

5.30

0.20

0.31

Unit (inch)

Min

0.077

0.167

0.137

0.078

0.035

0.201

0.004

0.006

Max

0.083

0.187

0.147

0.103

0.056

0.209

0.008

0.012

DIM.

SUGGESTED PAD LAYOUT

Symbol

Unit (mm)

2.3

2.5

4.3

1.8

6.8

Unit (inch)

0.091

0.098

0.169

0.071

0.268

MARKING DIAGRAM

P/N

= Specific Device Code

= Green Compound

= Date Code

= Factory Code

Document Number: D1307005

Version: H13

SS22 thru SS215

Taiwan Semiconductor

CREAT BY ART

Notice

Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,

assumes no responsibility or liability for any errors inaccuracies.

Information contained herein is intended to provide a product description only. No license, express or implied,to

any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of

sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,

relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,

merchantability, or infringement of any patent, copyright, or other intellectual property right.

The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.

Customers using or seling these products for use in such applications do so at their own risk and agree to fully

indemnify TSC for any damages resulting from such improper use or sale.

Document Number: D1307005

Version: H13
