PI49FCT3807QI: DescriptionLow Skew Clock Driver, FCT Series, 10 True Output(s), 0 Inverted Output(s), CMOS, PDSO20, 0.150 INCH, QSOP-20; Categorylogic logic; File Size255KB，5 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric View All

PI49FCT3807QI Overview

Low Skew Clock Driver, FCT Series, 10 True Output(s), 0 Inverted Output(s), CMOS, PDSO20, 0.150 INCH, QSOP-20

PI49FCT3807QI Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	QSOP
package instruction	SSOP,
Contacts	20
Reach Compliance Code	compliant
ECCN code	EAR99
series	FCT
Input adjustment	SCHMITT TRIGGER
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	8.65 mm
Logic integrated circuit type	LOW SKEW CLOCK DRIVER
Humidity sensitivity level	1
Number of functions	1
Number of inverted outputs
Number of terminals	20
Actual output times	10
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	240
propagation delay (tpd)	4.5 ns
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.5 ns
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	3.9116 mm

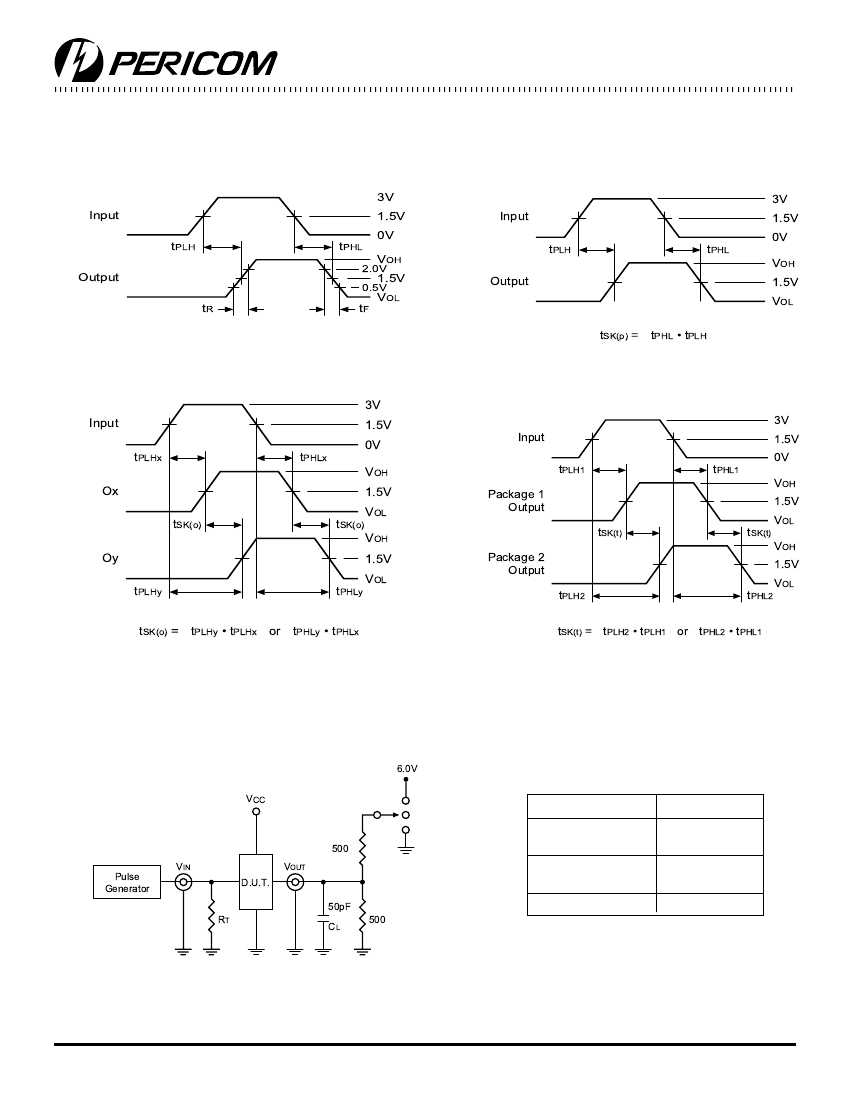

Preview

Download Datasheet

View All

21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321

PI49FCT3807

3.3V 1:10 CMOS Clock Driver

eatures

Description

Pericom Semiconductors PI49FCT series of logic circuits are

produced using the Companys advanced 0.5 micron CMOS

technology, achieving speeds up to 150 MHz, low-power dissipation,

and output skew less than 150ps.

The PI49FCT3807 is a 3.3V very low skew clock buffer that produces

ten outputs from a single low-capacitance input. Excellent output

signals to power and ground ratio minimize power and ground noise,

and also improves output performance.

Ultra low skew: <150ps

Fast switching frequency <150 MHz

Fast output rise/fall time <1.2ns

Low propagation delay <3.0ns

Low input capacitance <4.0pF

5V I/O Tolerant input

Rail-to-Rail CMOS outputs

Industrial Temperature: 40°C to +85°C

3.3V ±10% operation

Packages available:

20-pin 300-mil wide SOIC (S)

20-pin 150-mil wide QSOP (Q)

20-pin 209-mil wide SSOP (H)

Logic Block Diagram

Product Pin Configuration

GND

20-Pin

H, Q, S

GND

)

Product Pin Description

Pin Name

GND

Description

Input

Outputs

Ground

Power

PS7010C

10/06/99
