935189610112 datasheet, PDF - EEWORLD Datasheet

935189610112: DescriptionIC HCT SERIES, HEX 1-BIT DRIVER, INVERTED OUTPUT, PDSO16, PLASTIC, TSSOP-16, Bus Driver/Transceiver; Categorylogic logic; File Size47KB，7 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Environmental Compliance

Download Datasheet Parametric View All

935189610112 Overview

IC HCT SERIES, HEX 1-BIT DRIVER, INVERTED OUTPUT, PDSO16, PLASTIC, TSSOP-16, Bus Driver/Transceiver

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	NXP
Parts packaging code	TSSOP
package instruction	PLASTIC, TSSOP-16
Contacts	16
Reach Compliance Code	unknown
series	HCT
JESD-30 code	R-PDSO-G16
JESD-609 code	e4
length	5 mm
Logic integrated circuit type	BUS DRIVER
Humidity sensitivity level	1
Number of digits	1
Number of functions	6
Number of ports	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
propagation delay (tpd)	36 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	NICKEL PALLADIUM GOLD
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	4.4 mm

INTEGRATED CIRCUITS

DATA SHEET

For a complete data sheet, please also download:

•

The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications

•

The IC06 74HC/HCT/HCU/HCMOS Logic Package Information

•

The IC06 74HC/HCT/HCU/HCMOS Logic Package Outlines

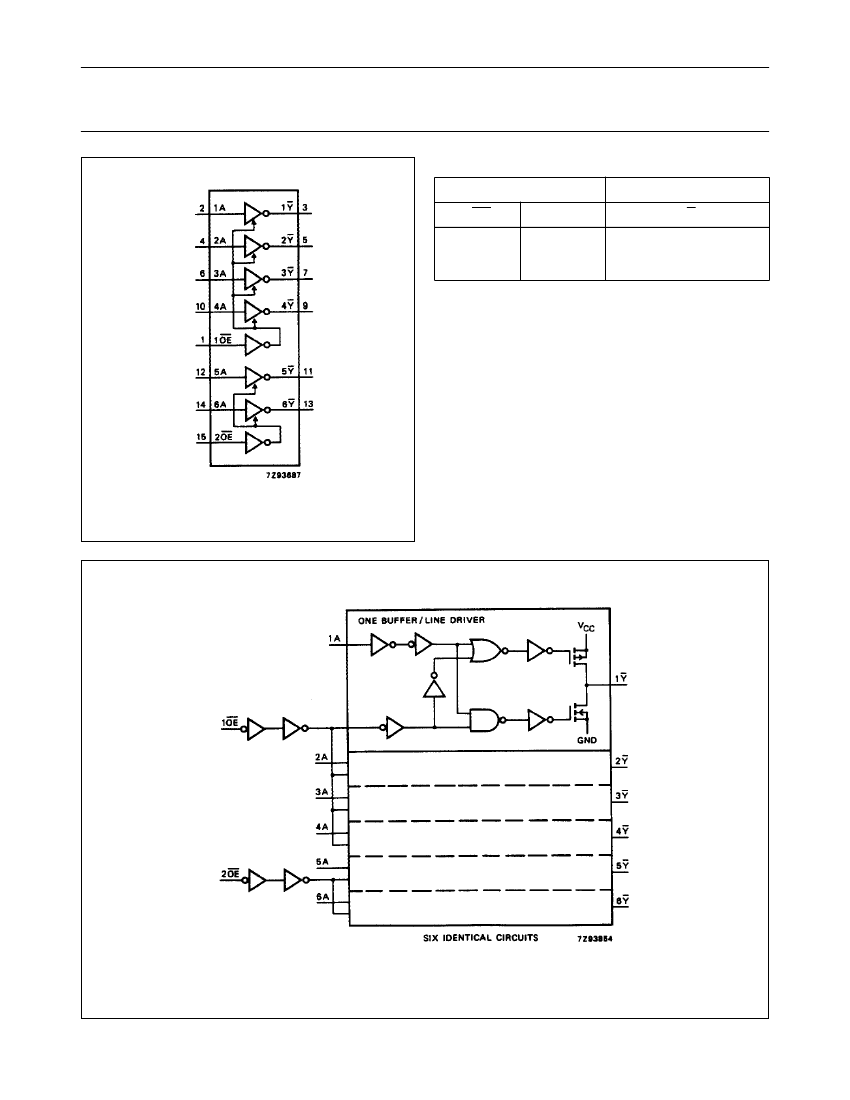

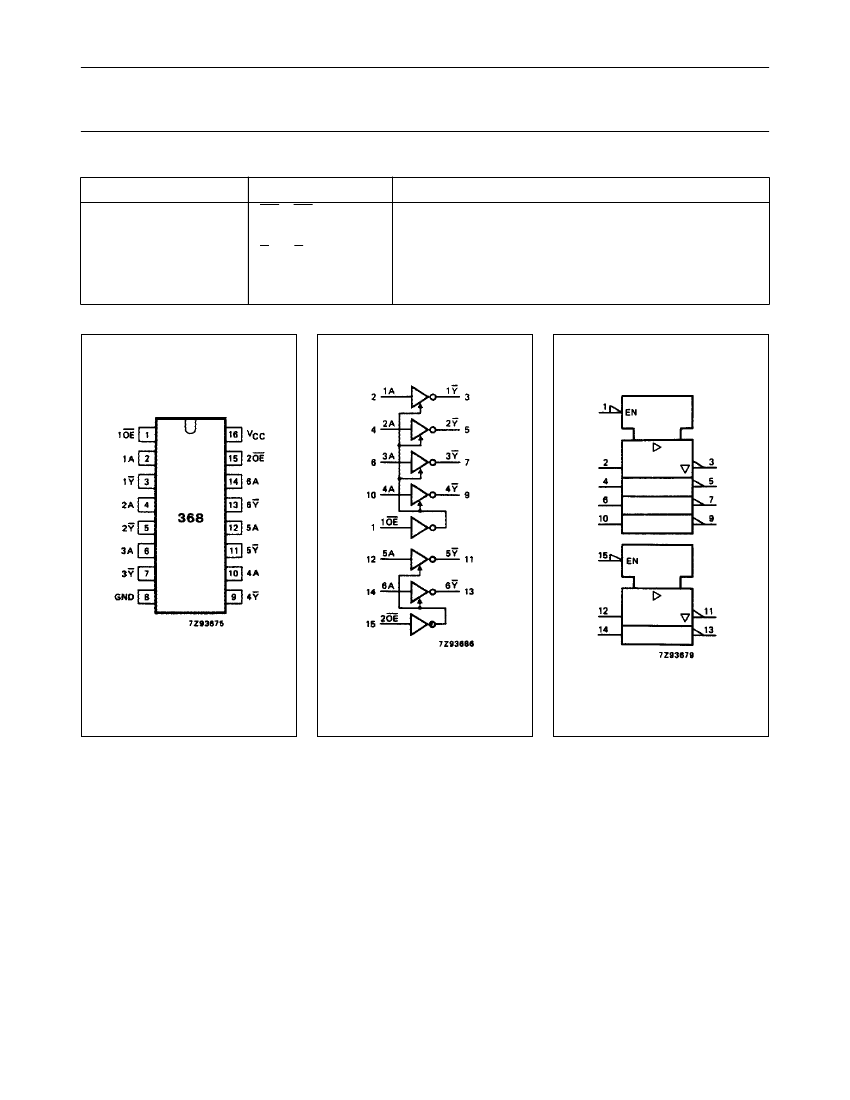

74HC/HCT368

Hex buffer/line driver; 3-state;

inverting

Product speciﬁcation

File under Integrated Circuits, IC06

December 1990
