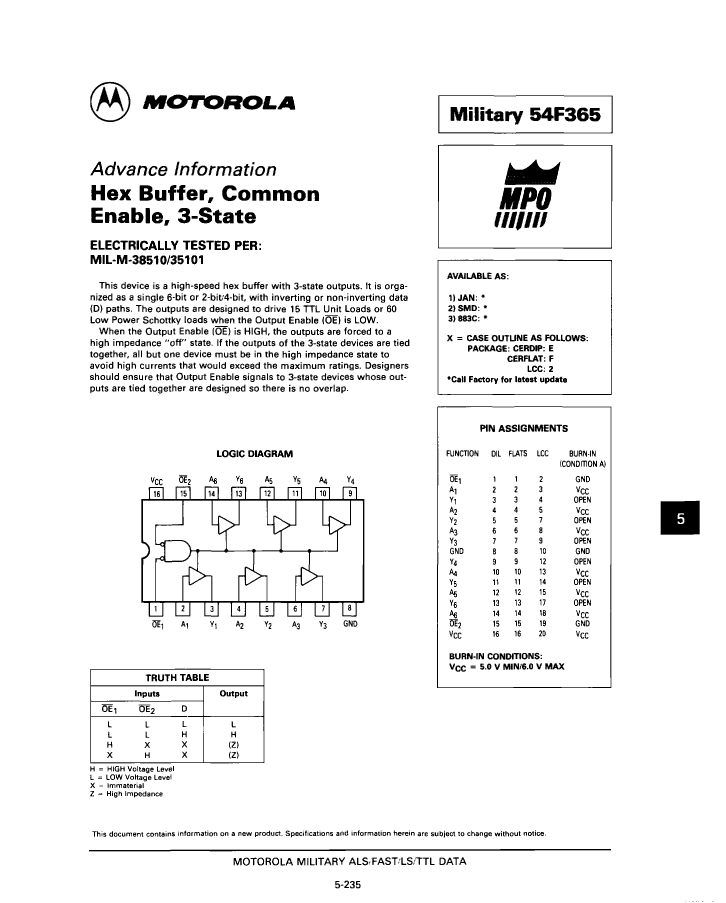

Bus Driver, F/FAST Series, 1-Func, 6-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20

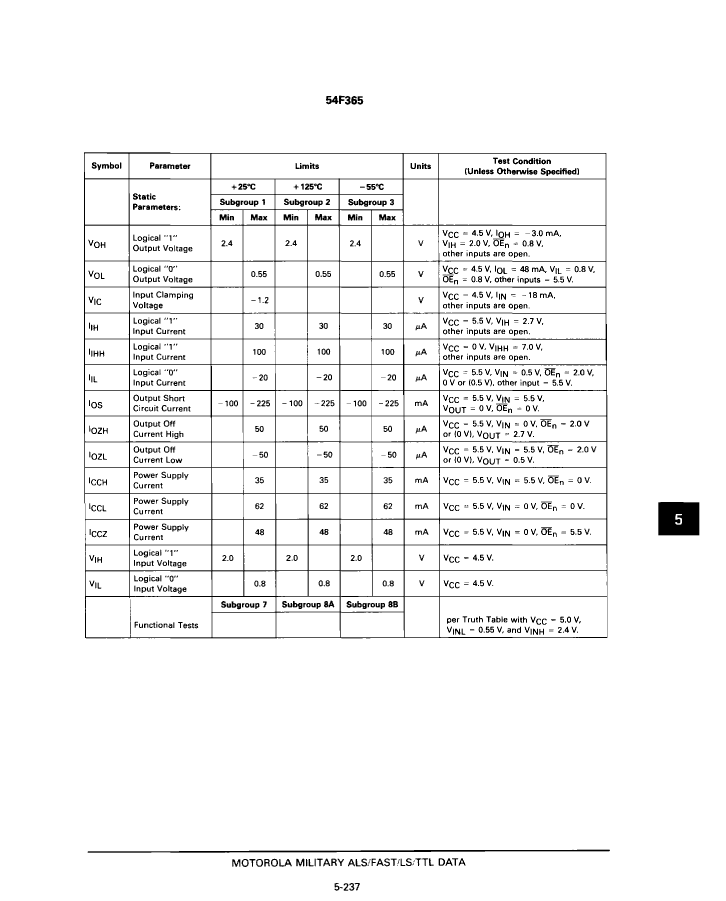

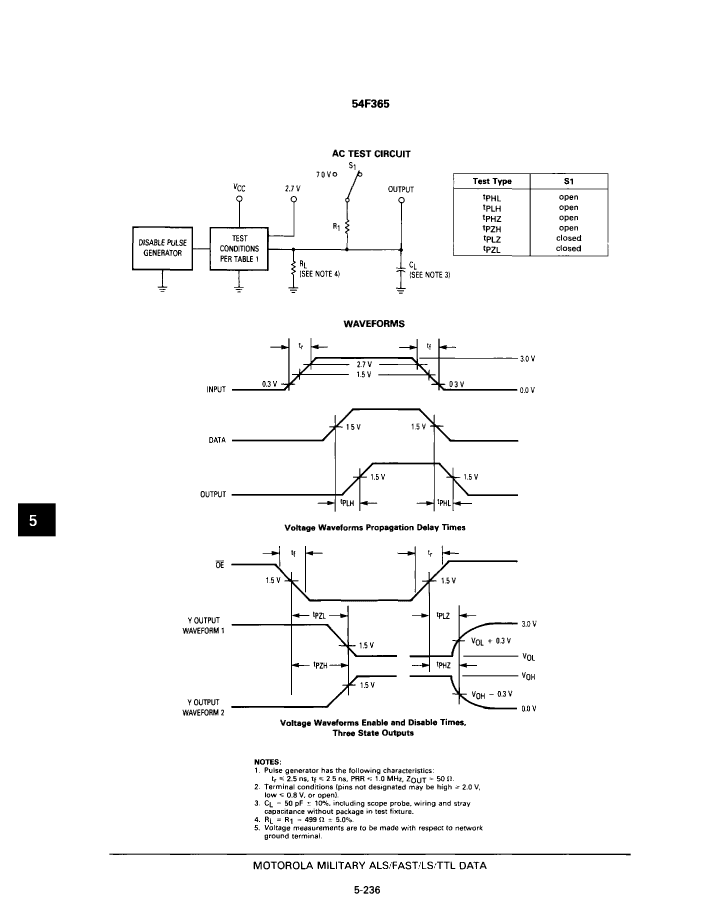

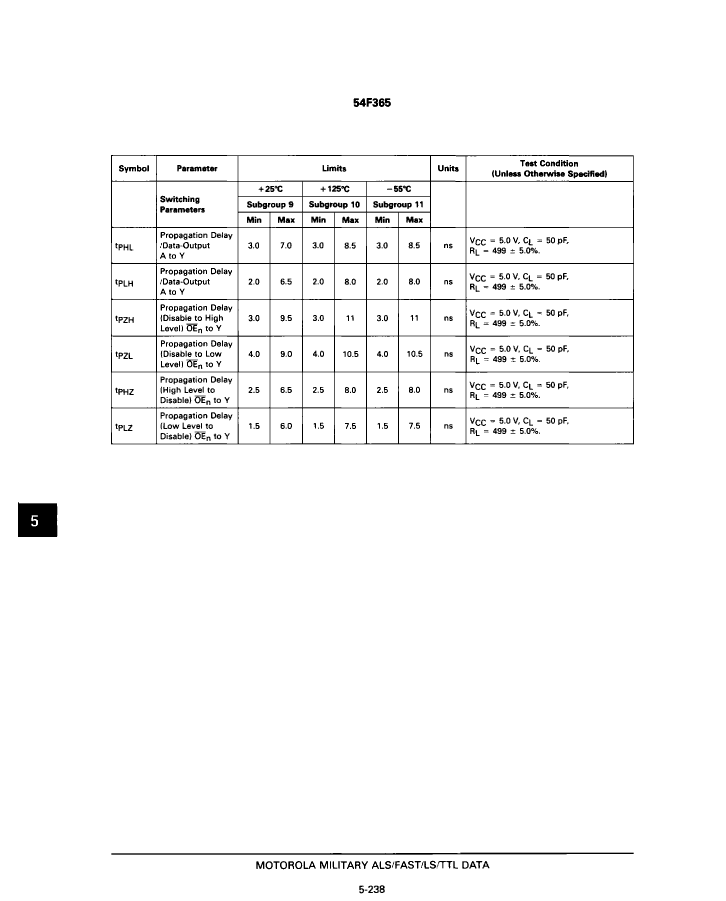

| Parameter Name | Attribute value |
| Maker | Motorola ( NXP ) |
| package instruction | QCCN, |
| Reach Compliance Code | unknown |
| Other features | WITH DUAL OUTPUT ENABLE |
| series | F/FAST |
| JESD-30 code | S-CQCC-N20 |
| length | 8.89 mm |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 6 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| propagation delay (tpd) | 8.5 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.9 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| width | 8.89 mm |
| 54F3652 | 54F365F | |
|---|---|---|
| Description | Bus Driver, F/FAST Series, 1-Func, 6-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20 | Bus Driver, F/FAST Series, 1-Func, 6-Bit, True Output, TTL, CDFP16, CERAMIC, FP-16 |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) |
| package instruction | QCCN, | DFP, |
| Reach Compliance Code | unknown | unknown |
| Other features | WITH DUAL OUTPUT ENABLE | WITH DUAL OUTPUT ENABLE |
| series | F/FAST | F/FAST |
| JESD-30 code | S-CQCC-N20 | R-GDFP-F16 |
| length | 8.89 mm | 9.65 mm |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER |
| Number of digits | 6 | 6 |
| Number of functions | 1 | 1 |
| Number of ports | 2 | 2 |
| Number of terminals | 20 | 16 |
| Maximum operating temperature | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C |
| Output characteristics | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED |
| encapsulated code | QCCN | DFP |
| Package shape | SQUARE | RECTANGULAR |
| Package form | CHIP CARRIER | FLATPACK |
| propagation delay (tpd) | 8.5 ns | 8.5 ns |
| Certification status | Not Qualified | Not Qualified |
| Maximum seat height | 1.9 mm | 2.15 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V |
| surface mount | YES | YES |
| technology | TTL | TTL |
| Temperature level | MILITARY | MILITARY |
| Terminal form | NO LEAD | FLAT |
| Terminal pitch | 1.27 mm | 1.27 mm |
| Terminal location | QUAD | DUAL |
| width | 8.89 mm | 6.415 mm |
