B37947K9122K060 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> B37947K9122K060

B37947K9122K060: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 16V, C0G, 0.0012uF, SURFACE MOUNT, 0805, CHIP; CategoryPassive components capacitor; File Size125KB，6 Pages; ManufacturerEPCOS (TDK)

Download Datasheet Parametric Compare View All

B37947K9122K060 Overview

CAPACITOR, CERAMIC, MULTILAYER, 16V, C0G, 0.0012uF, SURFACE MOUNT, 0805, CHIP

B37947K9122K060 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	EPCOS (TDK)
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0012 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Manufacturer's serial number	B37947
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, CARDBOARD, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	16 V
size code	0805
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Tin (Sn)
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

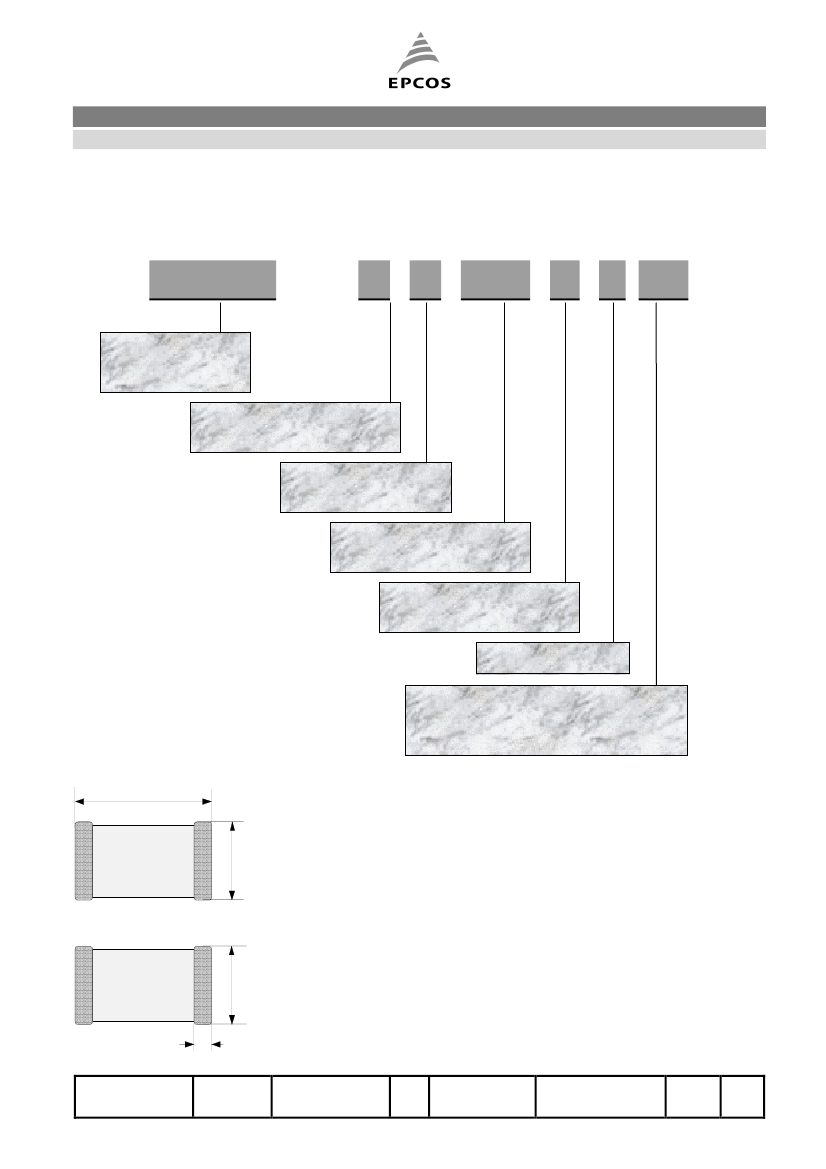

Multilayer Ceramic Capacitor

CPPS – Chip / Size 0805

Data sheet

CPPS / 0805 / 16V

B37947K9******

Order Code System

B37947

Type and Size:

K 9 103 J 0 62

CPPS / 0805

Metallization Type:

K = Ag/Ni/Sn

Rated Voltage:

9 = 16V

Rated Capacitance:

103 = 10 x 10

Capacitance Tolerance:

J = ±5%

K = ±10%

Internal Code

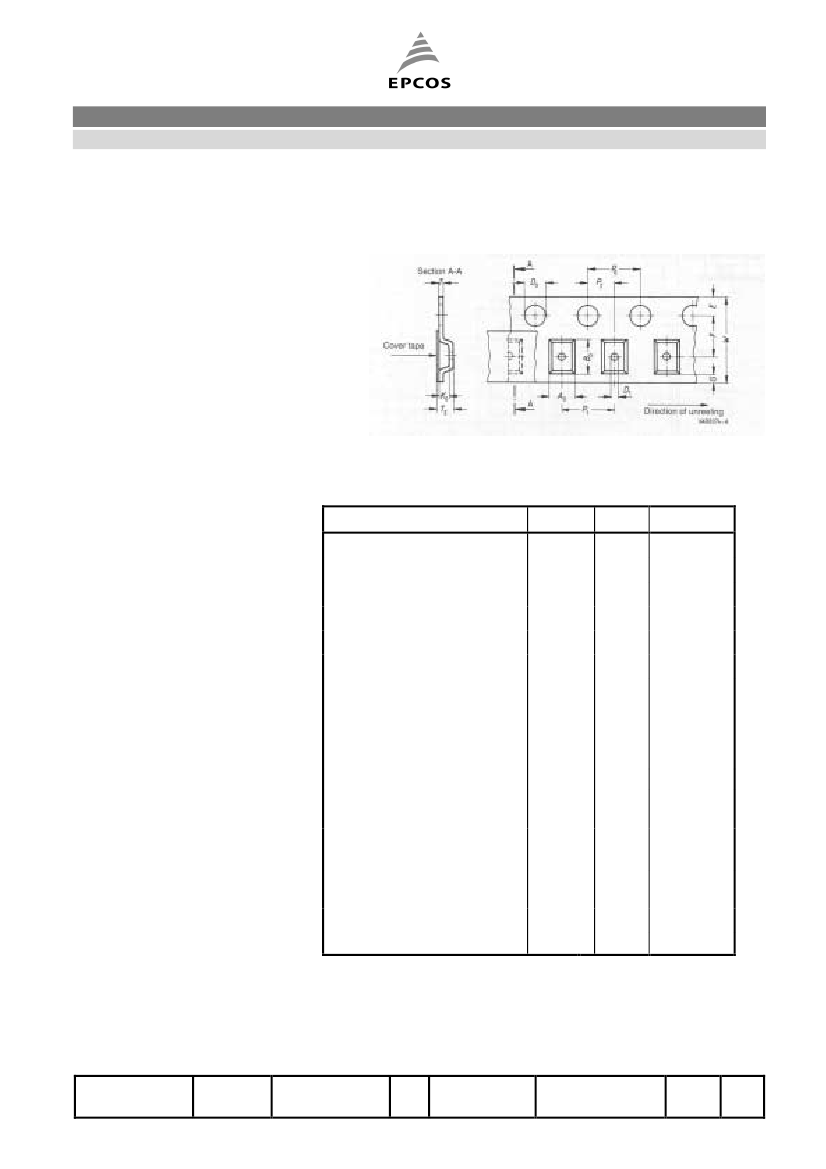

Packaging code:

Part Dimensions

60 = cardboard tape, 180mm reel

62 = blister tape, 180mm reel

l = 2,0 ± 0,2

b = 1,25 ± 0,15

s = 1,3 max

k = 0,5 ± 0,25

all Dimensions in [mm]

Tolerances acc. to CECC 32 101-801

ISSUE DATE

4.4.2002

ISSUE

PUBLISHER

EPCOS AG

PAGE

1/6

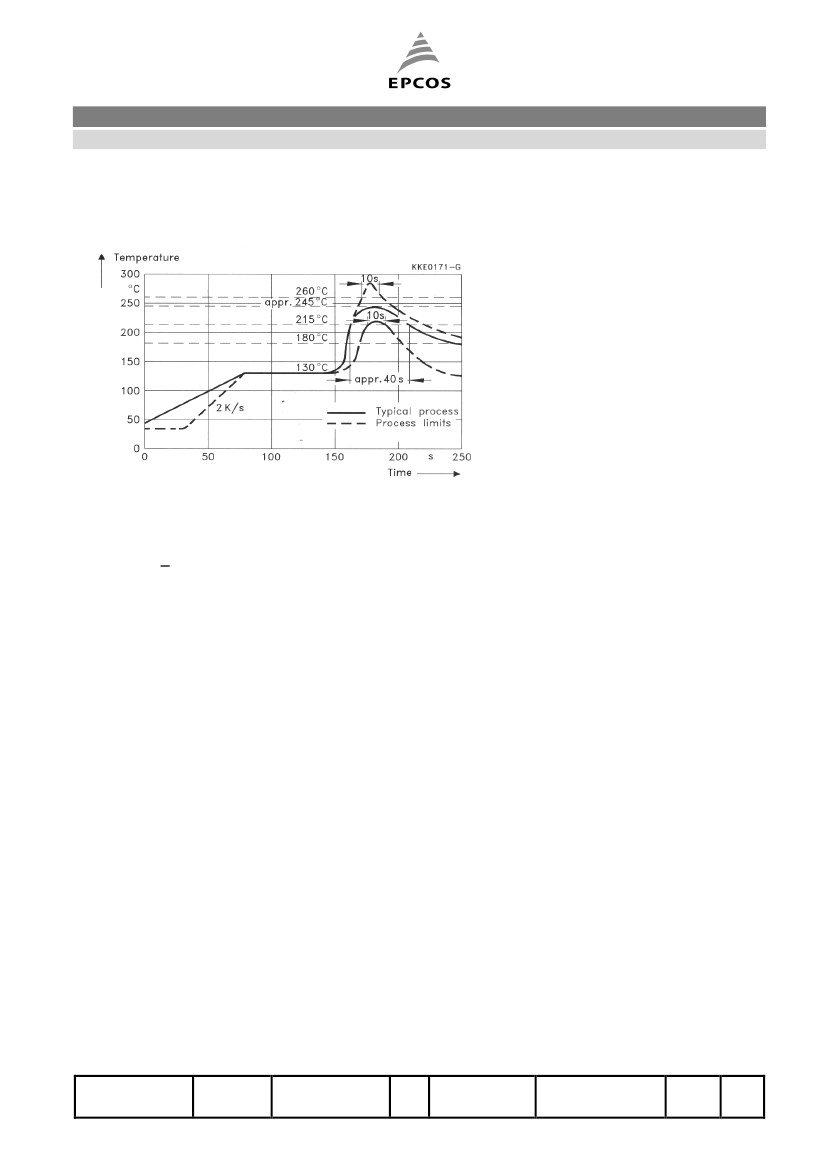

B37947K9122K060 Related Products

	B37947K9122K060	B37947K9182J060	B37947K9182J062	B37947K9182K060	B37947K9182K062	B37947K9392J060	B37947K9392J062
Description	CAPACITOR, CERAMIC, MULTILAYER, 16V, C0G, 0.0012uF, SURFACE MOUNT, 0805, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, C0G, 0.0018uF, SURFACE MOUNT, 0805, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, C0G, 0.0018uF, SURFACE MOUNT, 0805, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, C0G, 0.0018uF, SURFACE MOUNT, 0805, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, C0G, 0.0018uF, SURFACE MOUNT, 0805, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, C0G, 0.0039uF, SURFACE MOUNT, 0805, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, C0G, 0.0039uF, SURFACE MOUNT, 0805, CHIP
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)
package instruction	, 0805	, 0805	, 0805	, 0805	, 0805	, 0805	, 0805
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	0.0012 µF	0.0018 µF	0.0018 µF	0.0018 µF	0.0018 µF	0.0039 µF	0.0039 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	B37947	B37947	B37947	B37947	B37947	B37947	B37947
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
multi-layer	Yes	Yes	Yes	Yes	Yes	Yes	Yes
negative tolerance	10%	5%	5%	10%	10%	5%	5%
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR, CARDBOARD, 7 INCH	TR, CARDBOARD, 7 INCH	TR, BLISTER, 7 INCH	TR, CARDBOARD, 7 INCH	TR, BLISTER, 7 INCH	TR, CARDBOARD, 7 INCH	TR, BLISTER, 7 INCH
positive tolerance	10%	5%	5%	10%	10%	5%	5%
Rated (DC) voltage (URdc)	16 V	16 V	16 V	16 V	16 V	16 V	16 V
size code	0805	0805	0805	0805	0805	0805	0805
surface mount	YES	YES	YES	YES	YES	YES	YES
Temperature characteristic code	C0G	C0G	C0G	C0G	C0G	C0G	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Base Number Matches	-	1	1	1	1	-	-
