FFPF20UP30DN
—
Ultrafast Dual Diode
November 2013
FFPF20UP30DN
Features
20 A, 300 V, Ultrafast Dual Diode
Description

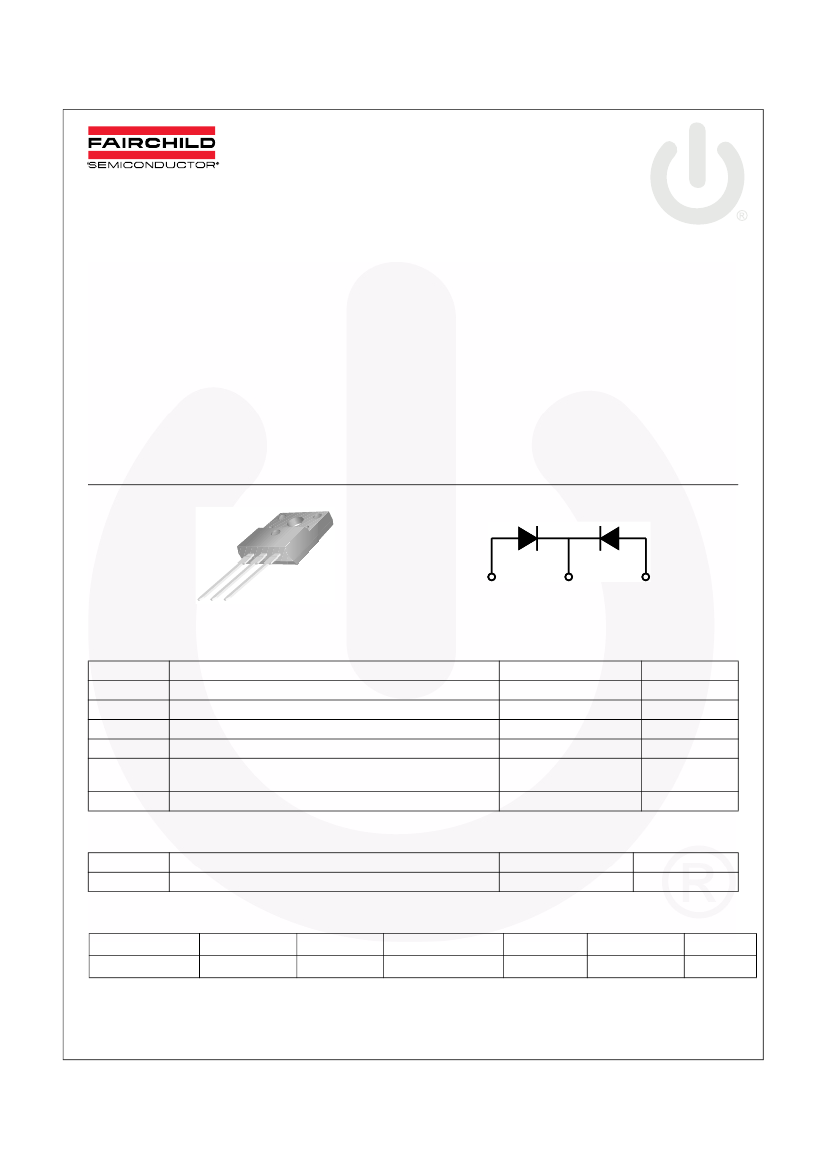

The FFPF20UP30DN is an ultrafast dual diode with low
forward voltage drop and rugged UIS capability. This device is
intended for use as freewheeling and clamping diodes in a
variety of switching power supplies and other power switching
applications. It is specially suited for use in switching power
supplies and industrial applicationa as welder and UPS
application.
• Ultrafast
Recovery t
rr
= 45 ns (@ I
F
= 10 A)
• Max Forward Voltage, V
F
= 1.3 V (@ T
C
= 25°C)
• Reverse Voltage, V
RRM
=
300
V
• Avalanche Energy Rated
• RoHS Compliant
Applications
•
General Purpose
• SMPS,
Power Switching Circuits
• Free-Wheeling
Diode
for
Motor Application
1
1
2
3
TO-220F
1. Anode 2. Cathode 3. Anode
1.Anode 2.Cathode 3.Anode
Absolute Maximum Ratings
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
I
FSM
T
J,
T
STG
(per diode) T
a
= 25°C unless otherwise noted
Parameter
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Non-repetitive Peak Surge Current
60Hz Single Half-Sine Wave
Operating Junction and Storage Temperature
= 25°C unless otherwise noted
Rating
300
300
300
Unit
V
V
V
A
A
°C
@ T
C
= 125°C
10
100
- 65 to +150
Thermal Characteristics
T
Symbol
R
θJC
a
Parameter
Maximum Thermal Resistance, Junction to Case
Max.
4.0
Unit
°C/W
Package Marking and Ordering Information
Part Number
FFPF20UP30DNTU
Top Mark
FFPF20UP30DN
Package
TO-220F
Packing Method
Tube
Reel Size
N/A
Tape Width
N/A
Quantity
30
©2005 Fairchild Semiconductor Corporation
FFPF20UP20DN Rev.
C1
1
www.fairchildsemi.com

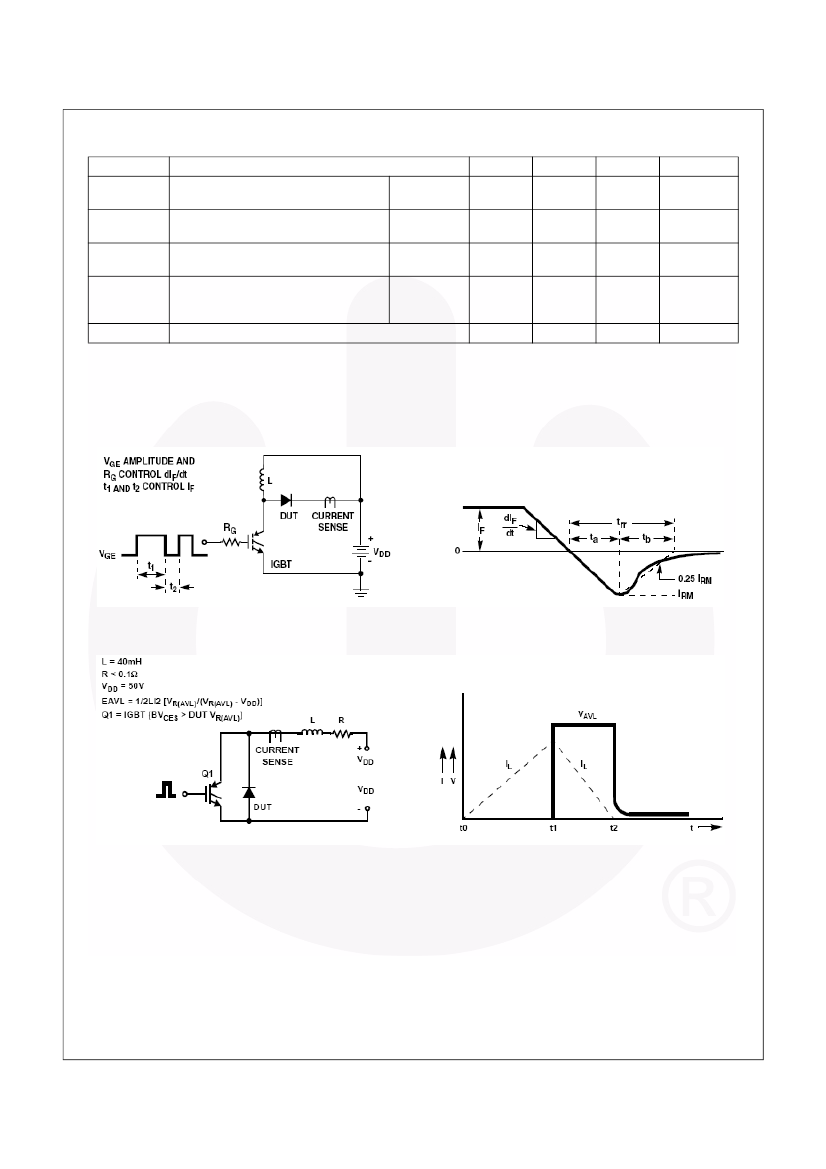

FFPF20UP30DN
—
Ultrafast Dual Diode
Package Dimensions

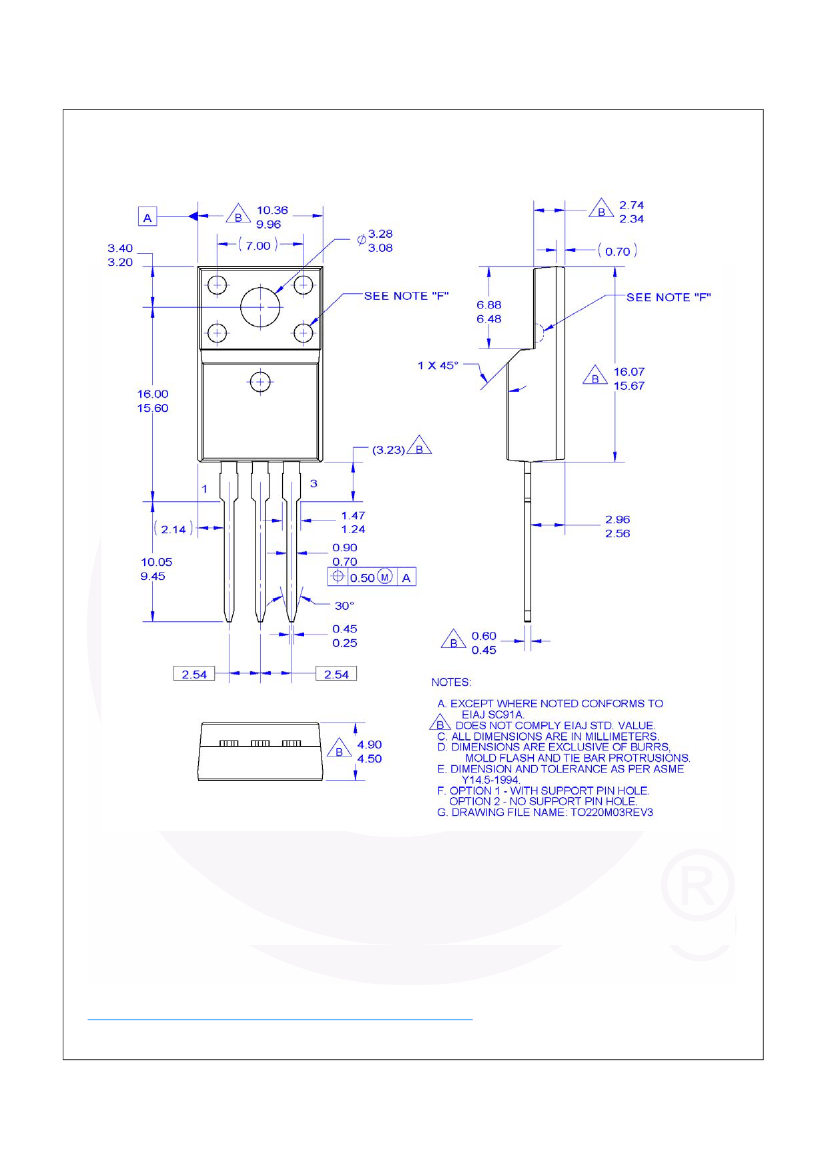

Figure 9. TO-220F 3L - TO220, MOLDED, 3LD, FULL PACK, EIAJ SC91, STRAIGHT LEAD
