DP3D2MX32PY5-60C: DescriptionFast Page DRAM Module, 2MX32, 60ns, CMOS; Categorystorage storage; File Size619KB，2 Pages; ManufacturerB&B Electronics Manufacturing Company

Download Datasheet Parametric Compare View All

DP3D2MX32PY5-60C Overview

Fast Page DRAM Module, 2MX32, 60ns, CMOS

DP3D2MX32PY5-60C Parametric

Parameter Name	Attribute value
Maker	B&B Electronics Manufacturing Company
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-XQMA-N66
memory density	67108864 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	66
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX32
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	QUAD

Preview

Download Datasheet

View All

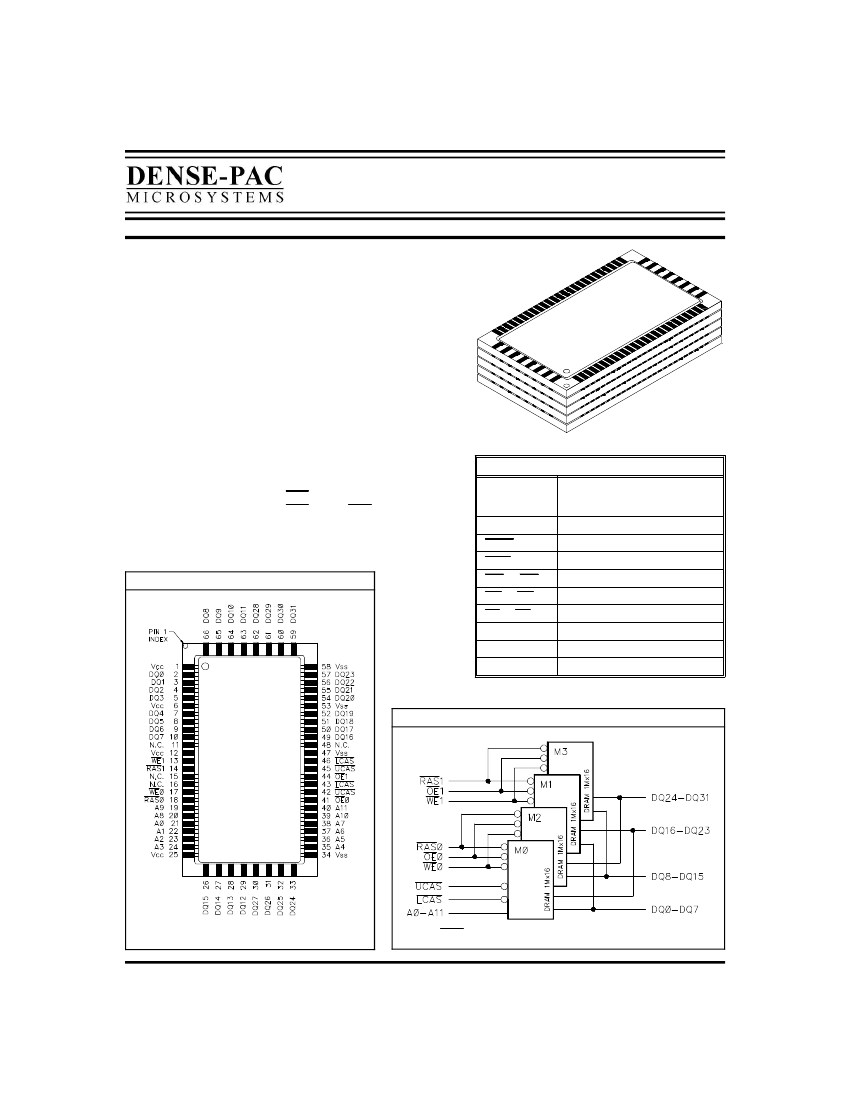

2Mx32, 50 - 80ns, TSTACK

30A164-15

64 Megabit CMOS DRAM

DPnnD2MX32PY5

PRELIMINARY

DESCRIPTION:

The DPnnD2MX32PY5 is the 2 Meg x 32 Dynamic RAM module

that utilize the new and innovative space saving TSOP stacking

technology. The module is constructed of four 1 Meg x 16

Dynamic RAM’s that are configured as 2 banks of 1 Meg x 32.

The DPnnD2MX32PY5 provides for a compatible upgrade path

to higher density compatible modules. The module features

high speed access times, common data inputs and outputs, and

three standard refresh modes.

FEATURES:

•

Access Times: 60, 70, 80ns (max.)

•

5.0V or 3.3V Supply

•

Common Data Inputs and Outputs

•

EDO or Fast Page Mode Capability

•

4096 Cycles / 64 ms

•

3 Variations of Refresh: - RAS only Refresh

- CAS before RAS Refresh

- Hidden Refresh

•

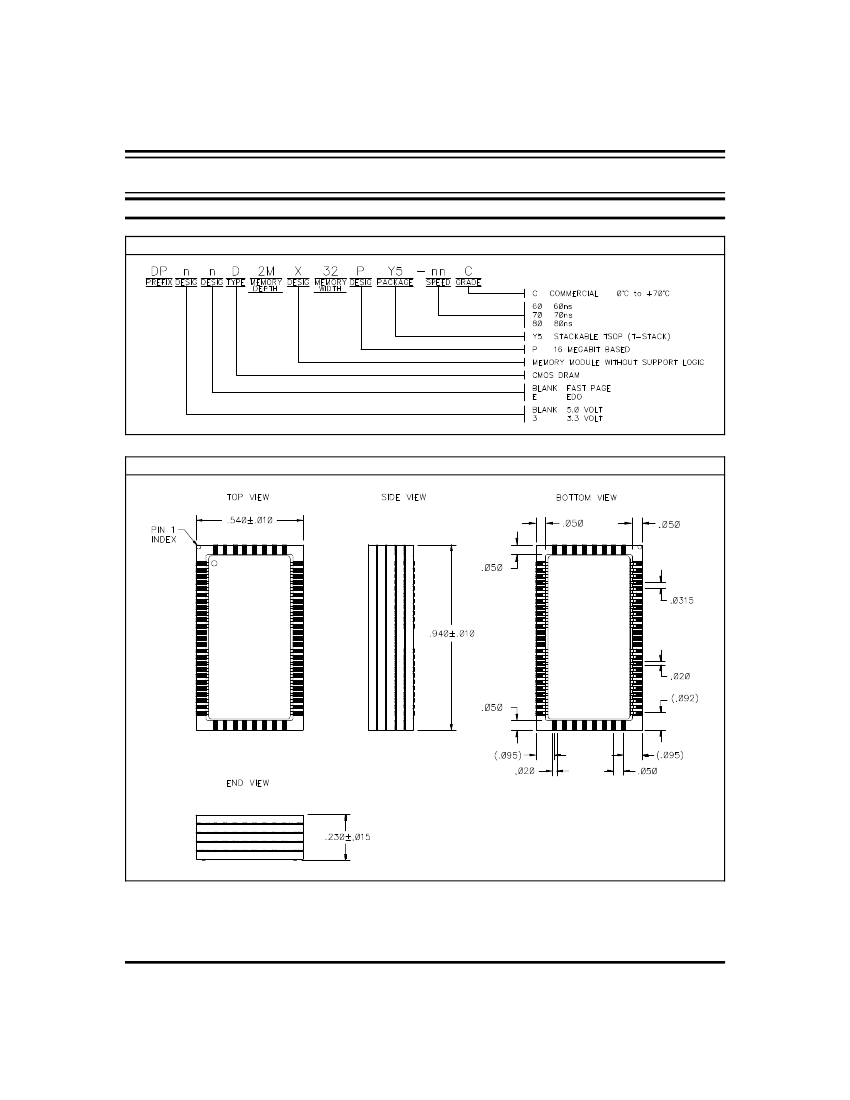

Package: TSOP Leadless Stack

PIN-OUT DIAGRAM

PIN NAMES

A0 - A11

DQ0 - DQ31

UCAS

LCAS

RAS0 - RAS1

WE0 - WE1

OE0 - OE1

N.C.

Row Address:

A0 - A11

Column Address: A0 - A7

Refresh Address: A0 - A11

Data In / Data Out

Upper Column Addres Strobe

Lower Column Addres Stobe

Row Address Enables

Data Write Enables

Data Output Enables

Power Supply (+5V)

Ground

No Connect

FUNCTIONAL BLOCK DIAGRAM

NOTE:

Pin 43 and Pin 46 are connected together,

Pin 42 and Pin 45 are connected together.

30A164-15

REV. A

NOTE:

LCAS controls DQ0-DQ15, UCAS controlls DQ16-DQ31.

This document contains information on a product presently under

development at Dense-Pac Microsystems, Inc. Dense-Pac reserves the

right to change products or specifications herein without prior notice.
